Automation VT Drive FC322 Design Guide
1)
Pilz Relay Terminal
2)
RCD or IRM Terminal
3)
Mains
R
S
T
91
92
93
L1
L2
L3
5.4.2 Shielding against Electrical Noise
Before mounting the mains power cable, mount the EMC metal cover to ensure best EMC performance.
NOTE: The EMC metal cover is only included in units with an RFI filter.

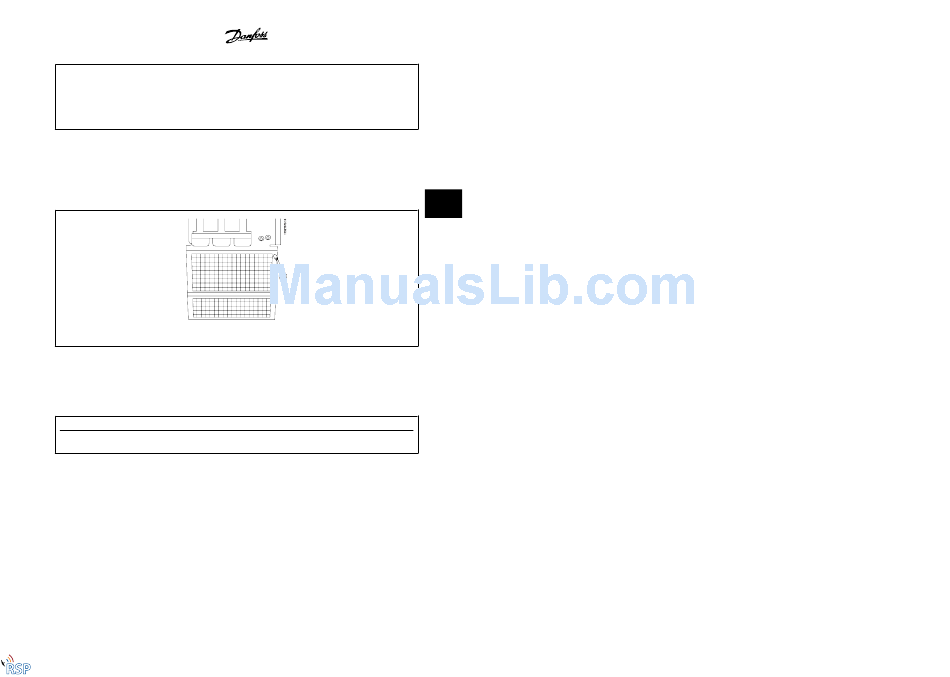

Illustration 5.36: Mounting of EMC shield.
5.4.3 External Fan Supply
In case the frequency converter is supplied by DC or if the fan must run independently of the power supply, an external power supply can be applied.
The connection is made on the power card.
Terminal No.
Function
100, 101
Auxiliary supply S, T
102, 103
Internal supply S, T
The connector located on the power card provides the connection of line voltage for the cooling fans. The fans are connected from factory to be supplied
form a common AC line (jumpers between 100-102 and 101-103). If external supply is needed, the jumpers are removed and the supply is connected
to terminals 100 and 101. A 5 Amp fuse should be used for protection. In UL applications this should be LittleFuse KLK-5 or equivalent.
MG.20.X1.22 - VLT
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20783-Danfoss-131X8145-VLT-Automation-VT-Drive-VFD-FC322-460V-.5-HP.aspx
5 How to Install
4)
Safety Relay Coil Fuse with PILS Relay
See fuse tables for part numbers
5)
Line Fuses, F3 and F4 (3 pieces)
See fuse tables for part numbers
6)
Contactor Relay Coil (230 VAC). N/C and N/O Aux Contacts
7)
Circuit Breaker Shunt Trip Control Terminals (230 VAC or 230 VDC)
®
is a registered Danfoss trademark
5
169
