Automation VT Drive FC322 Design Guide
1)
AUX Relay
01
02
03
04
05
06
2)
Temp Switch
106
104
105
3)
Line
R
S
T
91
92
93
L1
L2
L3
4)
Load sharing
-DC
+DC
88
89

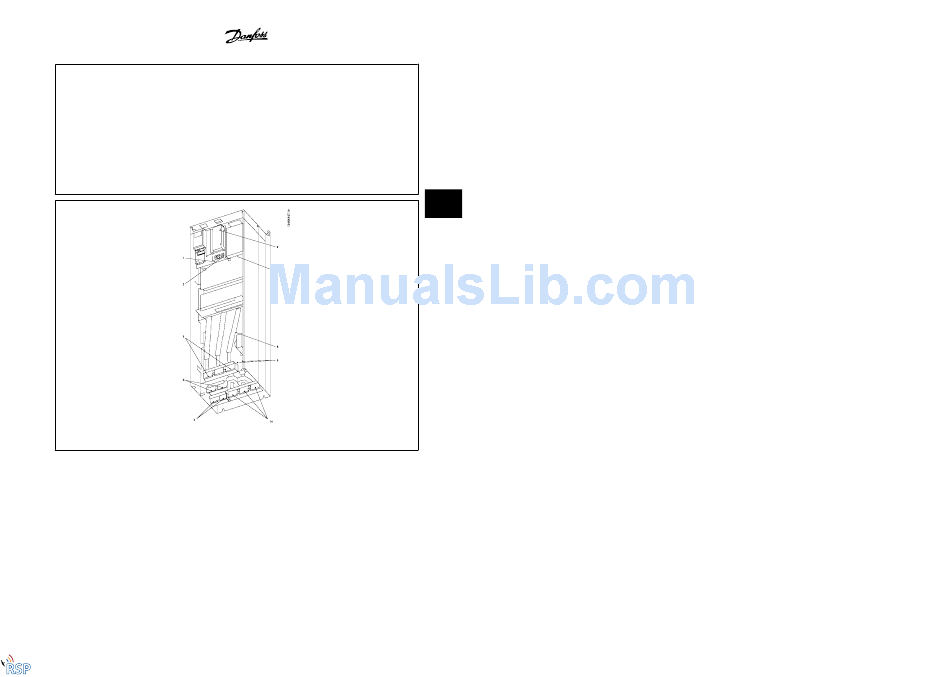

Illustration 5.25: Compact IP 00 (Chassis), frame size D3
MG.20.X1.22 - VLT
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20783-Danfoss-131X8145-VLT-Automation-VT-Drive-VFD-FC322-460V-.5-HP.aspx
5 How to Install
5)
Brake
-R
+R
81
82
6)
SMPS Fuse (see fuse tables for part number)
7)
AUX Fan
100
101
102
103
L1
L2
L1
L2
8)
Fan Fuse (see fuse tables for part number)
9)
Mains ground
10)
Motor
U
V
W
96
97
98
T1
T2
T3
®
is a registered Danfoss trademark
5
