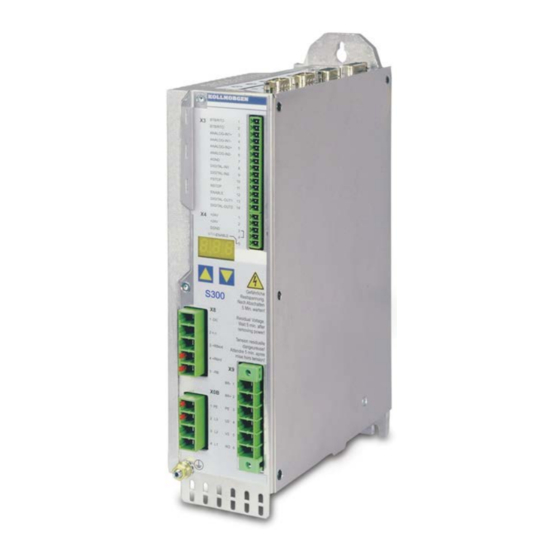

SERVOSTAR 300
Digital Servo Amplifier S300
Instruction Manual
Edition 02/2017
Translation of the original instructions.
Valid for Hardware Revision 04.20
Keep all manuals as a product component
during the life span of the product.
Pass all manuals to future users / owners
of the product.
File sr300_e.***
