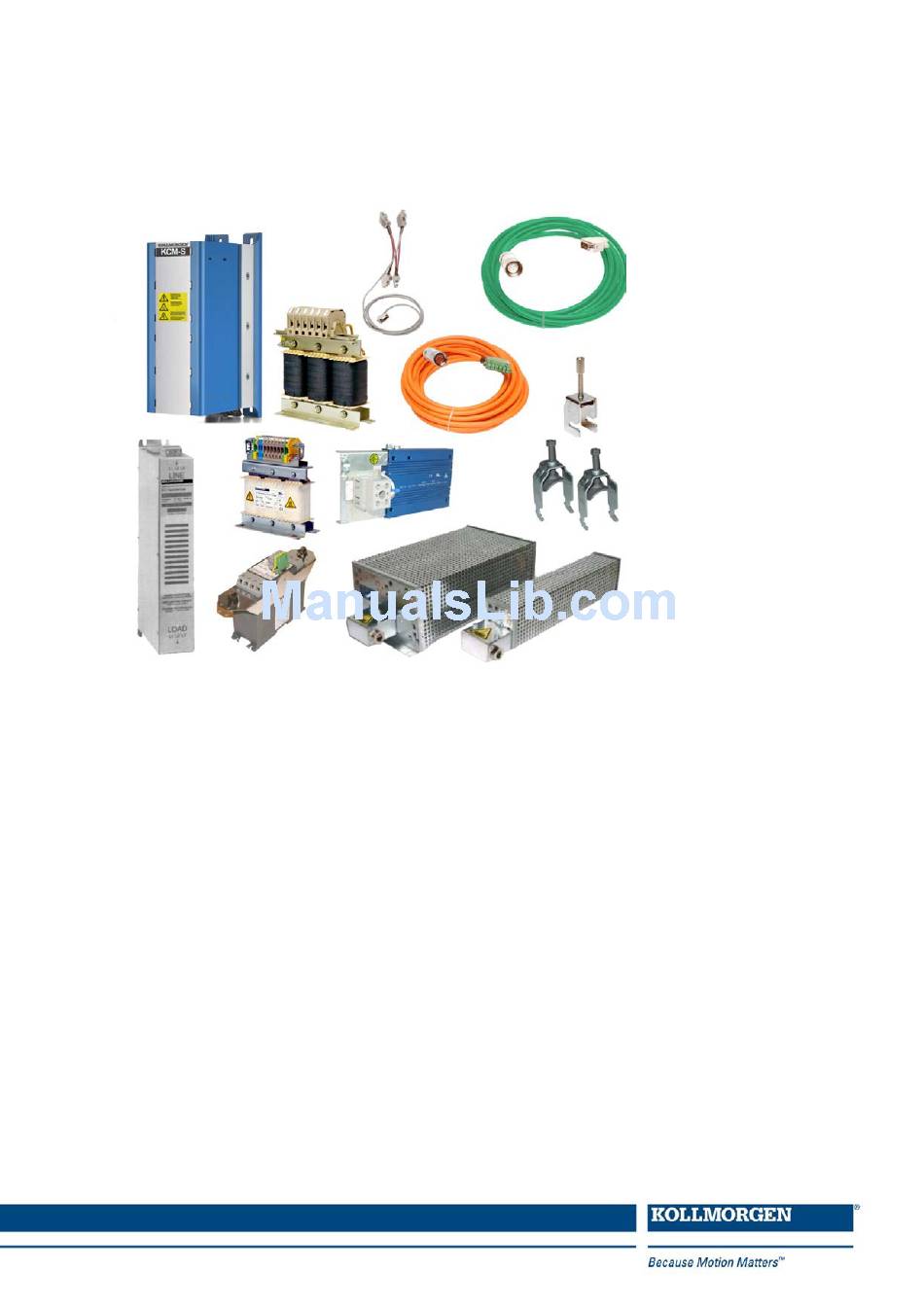

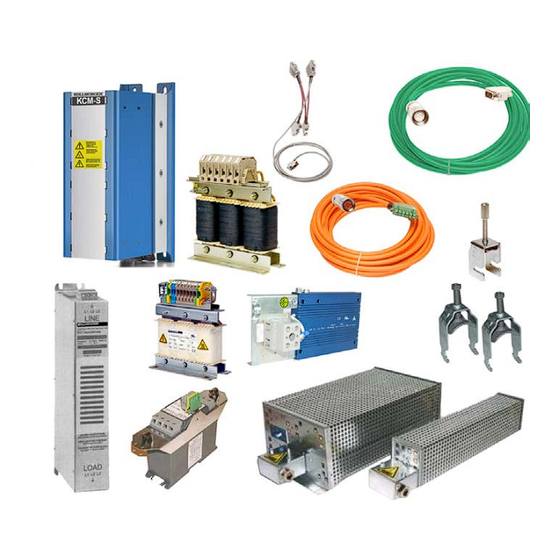

  • Page 1 Accessories for digital drive systems Manual Edition: December 2014 Translation of the original document European Version (CE region) Keep all manuals as a product component during the life span of the product. Pass all manuals to future users and owners of the product.
  • Page 2 Printed in the United States of America This document is the intellectual property of Kollmorgen. All rights reserved. No part of this work may be repro- duced in any form (by photocopying, microfilm or any other method) or stored, processed, copied or distributed by electronic means without the written permission of Kollmorgen.

  • Page 3: Table Of Contents

    6.2 Important notes 6.3 Type assignment and order codes 6.4 Mains choke 3L 7 Mains filters 7.1 General 7.2 Important notes 7.3 Type assignment and order codes 7.4 Mains filters 1NF-10...12 7.5 Mains filters 1NF-20B, 1NF-25 Kollmorgen | December 2014...
  • Page 4 11.6 Digital/analog Inputs/Outputs 11.6.1 Digital In/Outputs for AKD-C 11.6.2 Digital In/Outputs for AKD-N 11.6.3 Digital/analog I/O for S300/S400/S600/S700 and AKD-B/P/T/M 11.6.4 Preparing cables 11.7 Encoder Emulation, Stepper motor control, Master-Slave 11.7.1 Mating connector, cable type 11.7.2 Connection Kollmorgen | December 2014...
  • Page 5 11.12.1.2 Resolver cable for AKD 11.12.2 SFD cables for AKD 11.12.3 Encoder cables 11.12.3.1 Encoder cables for S300/S400/S600/S700 11.12.3.2 Encoder cables for AKD 11.12.4 ComCoder cables 11.12.4.1 ComCoder cables for S300/S400/S600/S700 11.12.4.2 Comcoder cables for AKD Kollmorgen | December 2014...
  • Page 6 Accessories Europe | Table of Contents This page intentionally left blank. Kollmorgen | December 2014...

  • Page 7: General

    You will find copies of the instructions manual for Kollmorgen servo amplifiers and servo motors on the CD ROM included in the scope of supply and on our Internet site. The doc- uments are available in Acrobat Reader format in multiple languages (system requirements: WINDOWS, Internet browser, Acrobat Reader).

  • Page 8: Safety Notes

    This symbol indicates important notes. Warning of a danger (general). The type of danger is spe- cified by the text next to the symbol. Warning of danger from electricity and its effects. Warning of suspended loads. Kollmorgen | December 2014...

  • Page 9: You Should Pay Attention To This

    (self-discharge time). Danger of death from electric shock. Before commencing work on the modules’ power terminals, check the voltage at the con- nection terminals is de-energized to ground and to each other. Kollmorgen | December 2014...

  • Page 10: Digital Drive Systems

    Accessories Europe | 3   Digital Drive Systems 3 Digital Drive Systems The systems shown are simply a possible scenario for setting up a digital drive system with relevant servo amplifier components. 3.1 Drive System with S300 Kollmorgen | December 2014...

  • Page 11: Drive System With S400

    Accessories Europe | 3   Digital Drive Systems 3.2 Drive System with S400 Kollmorgen | December 2014...

  • Page 12: Drive System With S601

    Accessories Europe | 3   Digital Drive Systems 3.3 Drive System with S601...620 Kollmorgen | December 2014...

  • Page 13: Drive System With S640

    Accessories Europe | 3   Digital Drive Systems 3.4 Drive System with S640...670 Kollmorgen | December 2014...

  • Page 14: Drive System With S701

    Accessories Europe | 3   Digital Drive Systems 3.5 Drive System with S701...724 Kollmorgen | December 2014...

  • Page 15: Drive System With S748/772

    Accessories Europe | 3   Digital Drive Systems 3.6 Drive System with S748/772 Kollmorgen | December 2014...

  • Page 16: Drive System With Akd-X00306

    Accessories Europe | 3   Digital Drive Systems 3.7 Drive System with AKD-x00306...02406 Kollmorgen | December 2014...

  • Page 17: Drive System With Akd-X00307

    Accessories Europe | 3   Digital Drive Systems 3.8 Drive System with AKD-x00307...02407 Kollmorgen | December 2014...

  • Page 18: Drive System With Akd-X04807

    Accessories Europe | 3   Digital Drive Systems 3.9 Drive System with AKD-x04807 Kollmorgen | December 2014...

  • Page 19: Decentralized Drive System With Akd-C And Akd-N

    3.10 Decentralized Drive System with AKD-C and AKD-N All components inside the borders are supplied by Kollmorgen with the exception of cables signed with "x". These cables are not supplied by Kollmorgen, you should use cables or wires according to EN 60204.

  • Page 20: Mechanical Accessories

    Mounting Hardware AKMH5, Ax flange / Cx front mounting MTG-KIT-AKMH5-IEC Mounting Hardware AKMH6, Ax flange / Cx front mounting MTG-KIT-AKMH6-IEC NEMA mounting kits are described in the US selection guide, available from the Kollmorgen website www.kollmorgen.com). 4.2 Suspension Unit for AKM motors DANGER Suspended load.

  • Page 21: Fan Kit For Akm7 Motors

    Protection class IP 20 Connection Cable gland 10 mm, cable diameter 4 mm to 6 mm, recommended cable 3x0.75 mm² (not part of delivery) Terminals 0.33 mm² to 4 mm² Weight 2.52 kg Order code AKM7-FAN Kollmorgen | December 2014...

  • Page 22: Mechanical Accessories For Akd-N And Akd-C

    The AKD-N servo amplifier is mounted to the machine with special mounting clamps. The delivery package contains 4 clamps. In case of lost or damaged clamps, you can order a set of four clamps. Order Codes Article Order codes AKD-N Mounting Clamps Set, 4 clamps AKD-N-M/C-Set Kollmorgen | December 2014...

  • Page 23: Sealing Plugs For Akd-N Connectors

    Inside the cabinet the CCNCN1 cable (➜ p. 65) to AKD-C can be plugged in, outside the cabinet the CCNNN1 cable (➜ p. 65) to AKD-N can be plugged in. Order Codes Article Order Codes Hybrid Connector Coupling AKD-C/AKD-N AKD-CN-Coupling* *in process Kollmorgen | December 2014...

  • Page 24: Shield Clamps

    We recommend using the following shield clamp: Manufacturer Article Tension range OBO (Bettermann) BBS-Schelle Typ 2056 16-22mm OBO (Bettermann) BBS-Schelle Typ 2056 28-34mm The clamps are part of delivery of the servo amplifier. Kollmorgen | December 2014...

  • Page 25: External Shielding Busbar

    The power cable shields (line in, motor cable, external regen resistor) can be routed to an additional busbar via shield clamps. Kollmorgen recommends using Weidmüller KLBÜ shield clamps. A possible scenario for setting up a busbar for the above shield clamps is described below.

  • Page 26: Mains Chokes

    Order Codes Article Order codes Mains choke 3L0,5-63-4 (0.47mH, 63A) DE-92201 Mains choke 3L0,4-80-4 (0.37mH, 80A) DE-92100 Mains choke 3L0,2-160-4 (0.19mH, 160A) DE-92099 Mains choke 3L0,24-50-2 (0.24mH, 50A) DE-201476 Mains choke 3L0,2-75-2 (0.20mH, 75A) DE-201477 Kollmorgen | December 2014...

  • Page 27: Mains Choke 3L

    [%] [mm] [mm] [mm] [mm] [mm] [mm] [mm²] [kg] 3L 0,5-63-4 0.47 8x12 9.65 3L 0,4-80-4 0.37 8x12 12.5 3L 0,2-160-4 0.19 273 116.5 148.5 310 10x18 3L 0,24-50-2 0.24 2 152.5 114.3 88.9 114.3 163 3L 0,2-75-2 0.20 8x12 Kollmorgen | December 2014...

  • Page 28: Mains Filters

    Mains filter 3EF-130 (480 VAC, 42A) DE-92105 3~, 480V AC, CE*, UL * No EC directive matches mains filters actually. You can use the filters in Europe, they are man- ufactured according to harmonized standards concerning creeping and voltage distances. Kollmorgen | December 2014...

  • Page 29: Mains Filters 1Nf-10

    Technical Data Nominal Nominal Current Voltage Type Weight Connec- [A]* [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] tion [kg] 1NF-10 40.3 0.29 Fast-on 1NF-12 156 57.5 45.4 130.5 143 0.73 Fast-on * at 40°C environment temperature Kollmorgen | December 2014...

  • Page 30: Mains Filters 1Nf-20B, 1Nf-25

    Wires up to 4mm² Bolt M 6 1NF-20B 230V 125V 0.93 Torque 0.6 to 0.8 Nm Torque 3.5 to 4 Nm Wires up to 10mm² 1NF-25 230V 230V Torque 1.5 to1.8 Nm * at 50°C environment temperature Kollmorgen | December 2014...
  • Page 31 Observe the safety instructions ➜ p. 28. Technical Data Type Nom. Weight Terminals [kg] Current* [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] Bolt 3NF-07 4mm², 3NF-16 16 A 0.7..0.8Nm 2.2Nm 10mm², 3NF-30 30 A 1.9..2.2Nm * at 50°C environment temperature Kollmorgen | December 2014...

  • Page 32: Mains Filters 3Ef-42

    Observe the safety instructions ➜ p. 28. Technical Data Type Nom. Terminals Current* [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm²] Bolt [mm] 3EF-42 42 A 3EF-72 75 A 3EF-100 100 A 3EF-130 130 A Kollmorgen | December 2014...

  • Page 33: Brake Resistors

    You must read the instructions manual for the servo amplifier/servo motor you are using in your application and observe the safety instructions they contain before commencing mount- ing/installation work. A connection diagram appears in the servo amplifier's instructions manual. Kollmorgen | December 2014...

  • Page 34: Type Assignment And Order Codes

    Brake resistor BAR(U) 1000-66 1000 1600 DE-107163 Brake resistor BAR(U) 300-91  S300 (S3xx01) DE-107164 Brake resistor BAR(U) 600-91 DE-107165 Brake resistor BAR(U) 1000-91 1000 1600 DE-107166 *= AKD-x means AKD variants -B, -P, -T and -M Kollmorgen | December 2014...

  • Page 35: External Brake Resistor Bafp(U)

    Accessories Europe | 8   Brake resistors 8.4 External brake resistor BAFP(U) Protection class: IP40 WARNING The surface temperature can exceed 250°C. Risk of burns and fire! Measure the tem- perature before touching. Kollmorgen | December 2014...

  • Page 36: External Brake Resistor Bar(U)

    Accessories Europe | 8   Brake resistors 8.5 External brake resistor BAR(U) Protection class: IP20 WARNING The surface temperature can exceed 250°C. Risk of burns and fire! Measure the temperature before touching. Kollmorgen | December 2014...

  • Page 37: External Brake Resistor Bas(U)

    Accessories Europe | 8   Brake resistors 8.6 External brake resistor BAS(U) Protection class: IP20 WARNING The surface temperature can exceed 250°C. Risk of burns and fire! Measure the temperature before touching. Kollmorgen | December 2014...

  • Page 38: Capacitor Modules

    9 Capacitor Modules 9.1 General KCM modules (KOLLMORGEN Capacitor Modules) absorb energy generated by the motor when it is operating in generator mode. Normally, this energy is dissipated as waste via brake resistors. KCM modules, however, feed the energy they have stored back into the DC Bus link as and when it is required.

  • Page 39: Type Assignment And Order Codes

    Interface setting: 115200 Baud, 8 Data Bits, 1 Stop Bit, No Parity&Flow Control. The X4 mat- ing connector is in the package. The ready signal reports the ready to operate (high level). More information is given in the KCM Instructions Manual. Kollmorgen | December 2014...

  • Page 40: Kcm Module

    Inception Type Power Protection Weight Capacity voltage voltage voltage [kW] Class [kg] [Ws] [V=] [V=] [V=] KCM-S200 1600 calculated max 950VDC KCM-P200 2000 470 VDC max 850 VDC IP20 (30s in 6min) KCM-E200 2000 KCM-E400 4000 Kollmorgen | December 2014...

  • Page 41: Motor Chokes

    (amplifier/choke/cable/motor). This cross-section can also be advantageous for cable lengths shorter than 50 m if the cable capacity and motor inductance are very high. However, the current loading of the cable must always be within the limits specified by EN 60204. Kollmorgen | December 2014...

  • Page 42: Important Notes

    Motor choke 3YLN-06 CE, UL DE-107929 Motor choke 3YLN-10 10 A CE, UL DE-107930 Motor choke 3YLN-14 14 A CE, UL DE-107931 Motor choke 3YLN-20 20 A CE, UL DE-107932 Motor choke 3YLN-24 24 A CE, UL DE-201447 Kollmorgen | December 2014...

  • Page 43: Motor Choke 3Yl-24

    Unit 3 YL-24 Rated Current I0rms Max.3x 24 Frequency fmax Inductivity µH Resistance mOhm Weight Cable diameter (Shield clamp) 4 to 13.5 Wire cross section U-V-W max. (terminals) mm² Wire cross section BR+/- max. (terminals) mm² Kollmorgen | December 2014...

  • Page 44: Motor Choke 3Yln-Xx

    Temperature class Operation class Weight Cable diameter 4 to 13.5 (Shield clamp) Wiring cross section max. mm² (Terminals) Width Depth Height Mounting hole distance Mounting hole distance 56.5 71.5 Mounting screws 4xM6 4xM6 4xM6 4xM6 4xM6 Kollmorgen | December 2014...

  • Page 45: Cables

    Accessories Europe | 11   Cables 11 Cables Kollmorgen assumes no liability for errors or damage to equipment caused by cables man- ufactured by customers. 11.1 Technical data for cables Information on the chemical, mechanical and electrical characteristics of the cables can be...

  • Page 46: Pc Connection

    Ethernet Cable PC-AKD 11.3.2 S300, S400, S600, S700 Kollmorgen digital "Sx" type servo amplifiers are equipped with a serial RS232 interface to facilitate communication with a standard personal computer (PC). Various types of interface can be used on the PC. Appropriate cables and in some cases specific accessories will be required to establish the connection between servo amplifier and PC.
  • Page 47 Y-Adapter -SR6Y6- 6 Axes (Multilink Cable) DE-92042 The multi-axis Y adapters support the simultaneous setup (multi-link) of a number of S300/S600/S700 in a single setup session. Y-adapter for 1 Axis Y-adapter for 4 axes Y-adapter for 6 axes Kollmorgen | December 2014...

  • Page 48: Power Voltage Supply, External Brake Resistor, Dc Bus Link

    AKD-x02406/0xx07 CON-AKDX3C-SL-Y With Y-connectors you can daisy-chain supply voltage or DC-bus link to several amplifiers. For details see instructions manual of the servo amplifier. The F-connectors are for fast wir- ing (no screws). S700 X8Y (&X4Amini) Kollmorgen | December 2014...

  • Page 49: Recommended Cable Type

    Push the ends of the conductors into the connector as far as they will go. Follow the pin assignment in the servo amplifier's instructions manual. Tighten the screws of the terminals. Take care that the insulation is not trapped in the terminals. Kollmorgen | December 2014...
  • Page 50 Follow the pin assignment in the instructions manual. Tighten the screws of the terminals. Take care that the insulation is not trapped in the ter- minals. Kollmorgen | December 2014...

  • Page 51: Preparing Cables For S640/670 And S748/772

    Apply bootlace ferrules to the conductors. Connect up the cable according to the wiring dia- gram in the instructions manual for the servo amp- lifier and take care that no insulation is trapped in the terminals. Kollmorgen | December 2014...

  • Page 52: Auxiliary Voltage Supply

    S640/670 DE-92143 S701...724 DE-200449 S701...724 DE-200450 S748/772 DE-201241 S748/772 DE-201193 AKD-B/P/T/M CON-AKDX1-SL Connector Kit ➜ p. 23 AKD-C 11.5.2 Recommended cable type Purpose recommended cable 24V Aux. Voltage H07V-K 1.5 or H07V-K 2.5 Observe voltage drop! Kollmorgen | December 2014...

  • Page 53: Preparing Cables

    Push the ends of the conductors into the connector as far as they will go. Follow the pin assignment in the instruc- tions manual. Tighten the screws of the terminals. Take care that the insulation is not trapped in the terminals. Kollmorgen | December 2014...

  • Page 54: Digital/Analog Inputs/Outputs

    AKD-N-DS servo amplifiers (devices with local STO input) have an additional 4 poles M12 connectors to connect the local STO signals. Maximum cable length 5m. Kollmorgen recommends pre-configured Phoenix SAC cables. Order codes for I/O cables, one end configured Amplifier Order Code No.

  • Page 55: Digital/Analog I/O For S300/S400/S600/S700 And Akd-B/P/T/M

    Color code for shielded cable Signal Color* Cable AGND analog in 1+ analog in 1- analog in 2+ LiYCY (TP) 4x2x0.25 analog in 2- analog out 1 analog out 2 AGND * according to IEC 60757 Kollmorgen | December 2014...

  • Page 56: Preparing Cables

    Wire up the screw terminals of the connector according to the wiring diagram (see also the instructions manual for the servo amplifier). Tighten the screws and take care that the insu- lation is not trapped in the terminals. Kollmorgen | December 2014...

  • Page 57: Encoder Emulation, Stepper Motor Control, Master-Slave

    Pin Amplifier Controller Amplifier Controller Amplifier Controller Master Slave R ~ 150Ω R ~ 150Ω R ~ 150Ω R ~ 150Ω R ~ 150Ω R ~ 150Ω R ~ 150Ω R ~ 150Ω R ~ 150Ω Kollmorgen | December 2014...

  • Page 58: Preparing Cables

    Place the fixing screw in position in the housing, and then press the two halves of the hous- ing firmly together. Take care that the fixing screw and the SubD con- nector insert are properly located. Kollmorgen | December 2014...

  • Page 59: Ethernet Cable

    ENCP-0030-000 Ethernet cable 0.50 m ENCP-0050-000 Ethernet cable 1.00 m ENCP-0100-000 Ethernet cable 2.00 m ENCP-0200-000 Ethernet cable 3.00 m ENCP-0300-000 Ethernet cable 4.00 m ENCP-0400-000 Ethernet cable 5.00 m ENCP-0500-000 Ethernet cable 10.00 m ENCP-1000-000 Kollmorgen | December 2014...

  • Page 60: Can Bus Cable

    If your cable has more connectors than you need, any of them can be left free. For EMC reasons, the SubD connector housings must fulfil the following conditions: metal or metallic-coated housing provision for connecting the cable shielding to the housing, large-area connection Kollmorgen | December 2014...
  • Page 61 Put the two knurled screws in place, and press the two halves of the housing together until the four lugs snap into position. Take care that the connector PCB and the knurled screws are properly located. Kollmorgen | December 2014...

  • Page 62: Hybrid Cables

    Accessories Europe | 11   Cables 11.10 Hybrid cables 11.10.1 AKD to AKM1 Motor (i-tec connector) You should use the configured Kollmorgen cables. For AKD-B/P/T/M, with shield clamp, i-tec motor connector AKD-B/P/T/M series servo amplifiers have a 15 pole high density SubD female connector to connect the feedback and a terminal connector for power wiring.

  • Page 63: Akd To Akm2-6 (Ip65 Connector)

    Accessories Europe | 11   Cables 11.10.2 AKD to AKM2-6 (IP65 connector) You should use the configured Kollmorgen cables. With shield clamp for AKD-B/P/T/M, motor connector size 1 (up to 22A) AKD-B/P/T/M series servo amplifiers have a 15 pole high density SubD female connector to connect the feedback and a terminal connector for power wiring.
  • Page 64 AKD-B/P/T/M SFD3 & Brake AKD-x01206 & x00307...x01207* CCJ2A1-015-vvv-00 and AKM2-6 (connector D, feed- back CA) AKD-B/P/T/M DSL & Brake AKD-x01206 & x00307...x01207* CCJ2A1-015-vvv-00 and AKM2-6 (connector D, feed- back GE/GF) *= x means variants -B, -P, -T and -M Kollmorgen | December 2014...

  • Page 65: Akd-C To Akd-N In The Decentralized Drive System

    11.10.3 AKD-C to AKD-N in the decentralized drive system Length definition: xx=meters, yy=centimeters. Define cable lengths: 3 m, 6 m, 12 m, 24 m, 36 m, 40 m Maximum cable length 40 m. You should use the configured Kollmorgen cables. (3x2.5+(2x0.25)+(2x0.25)) Usable to connect Order code Hybrid Cable...

  • Page 66: Motor Cables

    Accessories Europe | 11   Cables 11.11 Motor cables 11.11.1 General Standard versions of Kollmorgen motors have either one connector or one terminal box for the power connection. Optional connection types are described in the relevant motor manual. Motor series Power Connection...

  • Page 67: Order Codes Motor Cables For S300

    10.1 / 8.5 DE-102579 Motor cable 10m (4x1+(2x0.75)) 10.1 / 8.5 DE-102580 Motor cable 15m (4x1+(2x0.75)) 10.1 / 8.5 DE-102809 Motor cable 20m (4x1+(2x0.75)) 10.1 / 8.5 DE-102810 Motor cable 25m (4x1+(2x0.75)) 10.1 / 8.5 DE-102811 Kollmorgen | December 2014...

  • Page 68: Order Codes Motor Cables For S601

    17.4 / 10.1 DE-89968 Motor cable 10m (4x2.5+(2x1)) 17.4 / 10.1 DE-89970 Motor cable 15m (4x2.5+(2x1)) 17.4 / 10.1 DE-89971 Motor cable 20m (4x2.5+(2x1)) 17.4 / 10.1 DE-89972 Motor cable 25m (4x2.5+(2x1)) 17.4 / 10.1 DE-89969 Kollmorgen | December 2014...

  • Page 69: Order Codes Motor Cables For S701-712

    23 / 10.1 DE-200623 Motor cable 10m (4x4+(2x1)) 23 / 10.1 DE-200624 Motor cable 15m (4x4+(2x1)) 23 / 10.1 DE-200625 Motor cable 20m (4x4+(2x1)) 23 / 10.1 DE-200626 Motor cable 25m (4x4+(2x1)) 23 / 10.1 DE-200627 Kollmorgen | December 2014...

  • Page 70: Order Codes Motor Cables For S724

    54 / 13.1 DE-201693 Motor cable 10m (4x16+(2x1.5)) 54 / 13.1 DE-201694 Motor cable 15m (4x16+(2x1.5)) 54 / 13.1 DE-201695 Motor cable 20m (4x16+(2x1.5)) 54 / 13.1 DE-201696 Motor cable 25m (4x16+(2x1.5)) 54 / 13.1 DE-201697 Kollmorgen | December 2014...
  • Page 71 70 / 13.1 DE-201749 Motor cable 10m (4x25+(2x1.5)) 70 / 13.1 DE-201750 Motor cable 15m (4x25+(2x1.5)) 70 / 13.1 DE-201751 Motor cable 20m (4x25+(2x1.5)) 70 / 13.1 DE-201752 Motor cable 25m (4x25+(2x1.5)) 70 / 13.1 DE-201753 Kollmorgen | December 2014...

  • Page 72: Order Codes Motor Cables For Akd-B/P/T/M

    Usable to connect AKD-x00307* and AKM1 (connector options 1, Y). Drive connector with mounted shield plate. Article Order code Motor cable (4x1) CM02A3-010-vvv-00 Motor cable (4x1+(2x1)) CM12A3-010-vvv-00 *= x means variants -B, -P, -T and -M Kollmorgen | December 2014...
  • Page 73 With shield plate for AKD-B/P/T/M. motor connector size 1.5 (> 22A) Usable to connect AKD-x02406* & x02407* and AKM74Q / AKM82T (connector options 1, Article Order code Motor cable (4x6) CM02A4-060-vvv-00 Motor cable (4x6+(2x1.5)) CM12A4-060-vvv-00 *= x means variants -B, -P, -T and -M Kollmorgen | December 2014...

  • Page 74: Order Codes Motor Cables For Akd-N

    Round connector for AKD-N, motor connector size 1 (up to 22A) Usable to connect AKD-N and AKM1 to AKM5 (connector options 1, 7, B, C, G) Article Order code Motor cable (4x1) CM0NA1-010-xxmyy-00 Motor cable (4x1+(2x1)) CM1NA1-010-xxmyy-00 Kollmorgen | December 2014...

  • Page 75: Preparing Motor Cables (Motor End)

    (1) or (5) tightly onto the threaded sleeve. Then fit bootlace ferrules or ter- minal pins to the ends of the cores for the brake connections, and ring terminals to the power connections and the PE. Motor Connection DBL7/8 140 20 Terminals (similar to drawing) Kollmorgen | December 2014...
  • Page 76 (2) through the threaded sleeve and screw the union nut (1) tightly onto the threaded sleeve. Then fit, depending on the motor type, bootlace ferrules or ring terminals to the ends of the cores. Motor Connection DBL7/8 Terminals AKM8 Terminals Kollmorgen | December 2014...

  • Page 77: Preparing Motor Cables (Servo Amplifier End)

    This ensures that there is conductive contact over a large surface area between the braided shield and the front panel. Kollmorgen | December 2014...

  • Page 78: Preparing Cables For S601

    11.11.4.2 Preparing cables for S601...620 The motor is connected to the S601...620 by a Power Combicon connector (➜ p. 77). You can order the connector kit from Kollmorgen (connector, housing, shield plate, rubber bushes, installation material) with the order code DE-90066.

  • Page 79: Preparing Cables For S701

    The motor is connected to the S701...724 by a Power Combicon connector (➜ p. 77). You can order the connector kit from Kollmorgen (connector, housing, shield plate, rubber bushes, installation material) with the order code DE-200453. Please take note that the con- nector can accept a maximum conductor cross-section of 6 mm².

  • Page 80: Preparing Cables For Akd-X01206/X02406/X0Xx07

    25 mm of the insulation from all cores. The length varies with the conductor cross-section and the type of bootlace ferrule that is used. Apply bootlace ferrules to the con- ductors. Do not use terminal pins, because their cross-section is too small. Kollmorgen | December 2014...
  • Page 81 Fol- low the pin assignment in the instruc- tions manual. Tighten the screws of the terminals. Take care that the insu- lation is not trapped in the terminals. Kollmorgen | December 2014...

  • Page 82: Feedback Cables

    Washdown connector kit, motor end EMC Connector 12 pole, stainless steel DE-201811 Connector kit, amplifier end Socket 9-poles, housing and screws DE-81784 Technical data of the used cable material can be found on ➜ p. 45 Kollmorgen | December 2014...

  • Page 83: Resolver Cable For Akd

    Maximum cable length 5 m. The cable shield is connected to the AKD-N via the connector housing. The motor feedback should be connected with pre-assembled cables from Kollmorgen. Order codes for SFD cables, pre-assembled Amplifier (2x(2x0.25)) Order code...

  • Page 84: Encoder Cables

    LiYCY (TP) 7x2x0.25mm² DE-100904 Connector kit, motor end EMC Connector, 17 poles DE-85267 Washdown connector kit, motor end EMC Connector 17 poles, stainless steel DE-201820 Connector kit, amplifier end Socket 15 poles, housing and screws DE-103440 Kollmorgen | December 2014...

  • Page 85: Encoder Cables For Akd

    AKM1. Maximum cable length Length definition: xx=meters, yy=centimeters. The cable shield is connected to the AKD-N via the connector housing. The motor feedback should be connected with pre-assembled cables from Kollmorgen. Order Codes Encoder cables, configured Order codes EnDat 2.2, EnDat 2.1,...

  • Page 86: Comcoder Cables

    ComCoder and the thermal protection contact. The cable shield is connected to the servo amplifier via the con- nector housing. The motor feedback should be connected with pre- assembled cables from Kollmorgen. Order Codes Comcoder cables, configured Article...

  • Page 87: Comcoder Cables For Akd

    Length definition: xx=meters, yy=centimeters. Maximum cable length 5 m. The cable shield is connected to the AKD-N via the connector hous- ing. The motorfeedback should be connected with pre-assembled cables from Kollmorgen. Order Codes ComCoder cables, configured Amplifier (8x(2x0.25)) Order code...
  • Page 88 About KOLLMORGEN  Kollmorgen is a leading provider of motion systems and components for machine builders. Through world- class knowledge in motion, industry-leading quality and deep expertise in linking and integrating standard and custom products, Kollmorgen delivers breakthrough solutions that are unmatched in performance, reliability and ease-of-use, giving machine builders an irrefutable marketplace advantage. ...
