Adjustment Of Needle Bar Height - Brother NV-10A Service Manual

Computerized sewing machine.
Hide thumbs
  • Contents

Advertisement

Adjustment
1. Remove the face plate.
2. Press
and
3. Select the test mode number [3].
4. Press
five times to the left base line.
5. Turn off the power.

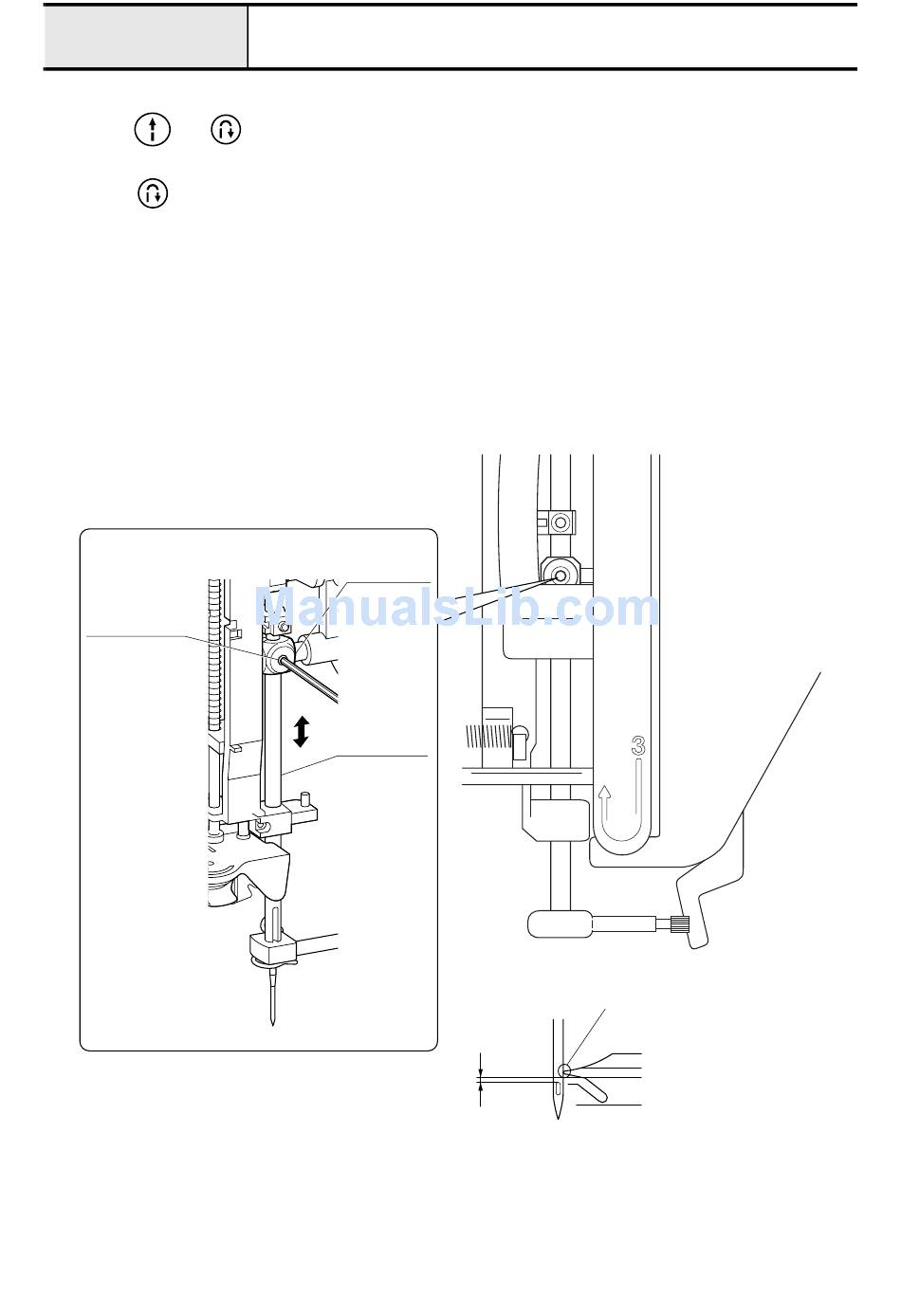

6. Turn the pulley by hand until the right edge of the needle and the outer rotary hook tip meet.
7. Loosen the socket set screw (FT, M4 x 4) of the needle bar block.
8. Adjust the height of the needle bar for 1.0 - 1.4 mm between the top of the needle hole and lower edge of the outer
rotary hook tip.
NOTE •Make sure the needle block is not positioned at a slant.
9. Tighten the socket set screw (FT, M4 x 4) of the needle bar block. ( torque : 0.78 - 1.18N · m)
10. Perform "Adjustment of Needle thread block" (4 - 14).
Socket set
screw
(FT, M4 x 4)
4 - 12

Adjustment of Needle bar height

button on the front cover while turning power on : the buzzer will sound four times.
Needle bar
block
Needle bar
Right edge of needle
and tip coincide
1.0 - 1.4mm
