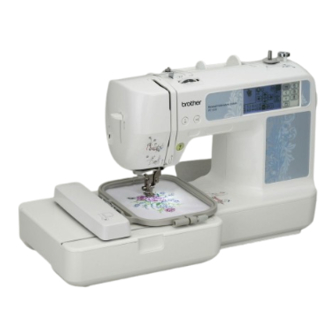

Brother PE430 Parts Preference List

Brother PE430 Parts Preference List

Home embroidery machine
Hide thumbs

Advertisement

Table of Contents

MODEL: PE430
PE500
NV90E
HE1
PE525
Published: Oct.,2008
Revised: Mar.,2017

Advertisement

Table of Contents
loading

Related Manuals for Brother PE430

Summary of Contents for Brother PE430

  • Page 1 MODEL: PE430 PE500 NV90E PE525 Published: Oct.,2008 Revised: Mar.,2017...
  • Page 2 MODEL LIST Model Countries (Added Date) NV90E IND (May / 2011) USA (Jul / 2011) PE500 USA (Nov / 2011) NV90E UK&IRE (May / 2012) NV90E DEU&ITA&CHE (Oct / 2012) PE430 ARG (Jun / 2014) PE525 USA (Jul / 2014)
  • Page 3 Country Code & Abbreviation of Country Name Meaning of "R" and "H"...

  • Page 4: Table Of Contents

    CONTENTS MAIN FRAME / COVER ························································ 2 UPPER SHAFT / NEEDLE BAR / PRESSER FOOT UNIT ············· 4 (3)-1 FEED UNIT (New type) ························································ 6 (3)-2 FEED UNIT (Old type) ·························································· 8 THREAD CUTTING UNIT ····················································· 10 BOBBIN WINDING / NEEDLE THREADING MECHANISM ········· 12 ELECTRIC PARTS / MAIN MOTOR UNIT ·······························...

  • Page 5: Main Frame / Cover

    (1) MAIN FRAME / COVER - 2 -...
  • Page 6 RETAINING RING E2 RETAINING RING E2 15 X59642021 060300516 SCREW SCREW BIND M3X5 16 XE5552001 51 XE3145001 FRONT COVER SUPPLY ASSY:PE430 CONNECTOR HOLDER COVER 52 X57908021 (PE430) TAPTITE,BIND S M4X10 XE5553001 53 XD0354251 FRONT COVER SUPPLY ASSY:NV90E NEEDLE PLATE B ASSY...

  • Page 7: Upper Shaft / Needle Bar / Presser Foot Unit

    (2) UPPER SHAFT / NEEDLE BAR / PRESSER FOOT UNIT - 4 -...
  • Page 8 (2) UPPER SHAFT / NEEDLE BAR / PRESSER FOOT UNIT CODE NAME R/H REMARKS CODE NAME R/H REMARKS 43 XE2976001 UPPER SHAFT MECHANISM LEAD WIRE ASSY ZPM-CCOM XE3707001 44 XE2977001 UPPER SHAFT SUPPLY ASSY Z ZIGZAG CAM XC2375051 45 XD1612051 PULLEY NEEDLE HOLDER GUIDE ASSY 012500532...

  • Page 9: Feed Unit (New Type)

    (3)-1 FEED UNIT (New type) *There are two types (new type / old type) of the feed unit and the using parts are different. When ordering parts, check the shape of the parts indicated in blue to order appropriate ones. - 6 -...
  • Page 10 (3)-1 FEED UNIT (New type) CODE NAME R/H REMARKS CODE NAME R/H REMARKS XF7691001 1000039425 45 XC3183051 BASE PLATE ASSY FELT XE2995001 46 XA0286051 1000042697 HORIZONTAL FEED SHAFT WIRE CLIP 014400432 060400516 SET SCREW SOCKET (CP) M4X4 SCREW BIND M4X5 060301206 48 XD1856100 1000055798...

  • Page 11: Feed Unit (Old Type)

    (3)-2 FEED UNIT (Old type) *There are two types (new type / old type) of the feed unit and the using parts are different. When ordering parts, check the shape of the parts indicated in blue to order appropriate ones. - 8 -...
  • Page 12 (3)-2 FEED UNIT (Old type) CODE NAME R/H REMARKS CODE NAME R/H REMARKS XE5359001 45 X52800120 BASE PLATE ASSY BOBBIN XC8782021 46 XE1489001 NEEDLE PLATE SUPPORTER SHAFT B STUD SCREW M4 021300106 060301206 NUT 1 M3 SCREW BIND M3X12 XE2994001 48 XC3183051 FELT THREAD CUTTER MODULE SUPPORTER...

  • Page 13: Thread Cutting Unit

    (4) THREAD CUTTING UNIT - 10 -...
  • Page 14 (4) THREAD CUTTING UNIT CODE NAME R/H REMARKS XC9733051 THREAD CUTTER FRAME ASSY XC9735050 SPACER XG2930001 1000056778 CUTTER BLADE ASSY XE4994001 PRESSER PLATE ASSY 060300516 SCREW BIND M3X5 XC2598120 SPRING PLATE XC2587020 RUBBER 048030343 1000038911 RETAINING RING E3 XC2583121 THREAD HOOK ASSY 137713020 POLYESTER SLIDER 11 X56731020...

  • Page 15: Bobbin Winding / Needle Threading Mechanism

    (5) BOBBIN WINDING / NEEDLE THREADING MECHANISM - 12 -...
  • Page 16 (5) BOBBIN WINDING / NEEDLE THREADING MECHANISM CODE NAME R/H REMARKS CODE NAME R/H REMARKS BOBBIN WINDING MECHANISM NEEDLE THREADING MECHANISM XE3008001 16 XE3011101 1000055651 BOBBIN WINDER ASSEMBLY HOLDER THREAD GUARD ASSEMBLY XE1495001 17 XA9935050 BW SHAFT HOLDER ASSEMBLY SPRING TAPE X55238021 18 XA0083121 RUBBER RING...

  • Page 17: Electric Parts / Main Motor Unit

    (6) ELECTRIC PARTS / MAIN MOTOR UNIT - 14 -...
  • Page 18 (6) ELECTRIC PARTS / MAIN MOTOR UNIT CODE NAME R/H REMARKS CODE NAME R/H REMARKS ELECTRIC PARTS MAIN MOTOR UNIT XE5478201 1000054748 24 XE3180101 1000056719 MAIN PCB SUPPLY ASSY-B MAIN MOTOR SUB ASSY:CCOM V (USA) XE3032001 XG8099001 1000056719 LCD SUPPORTER MAIN MOTOR SUB ASSY:CCOM-2-V0 XE3033001 LIGHT PLATE ASSY...

  • Page 19: Embroidery Unit

    (7) EMBROIDERY UNIT - 16 -...
  • Page 20 (7) EMBROIDERY UNIT CODE NAME R/H REMARKS CODE NAME R/H REMARKS XC3807121 1000056645 45 X59853020 MAIN FRAME ASSEMBLY RUBBER CUSHION XC4153020 46 XA1899021 X GEAR SPRING 048030343 1000038911 47 XC3824121 RETAINING RING E3 HANDLE XC4154020 48 XA5352020 X DRIVING GEAR CORD PRESSER X53330020 49 XA6281020...

  • Page 21: Accessory Parts / User Manual / Package

    (8) ACCESSORY PARTS / USER MANUAL / PACKAGE (INSTRUCTION BOOK) (QUICK REFERENCE (WARRANTY CARD) (LANGUAGE (for PRINTED MATTER) GUIDE) SETTING SHEET) (INSERTION WEEE) (INSERTION) (UKRAINIAN ROHS INSERTION) (NOT RETURN (HELP INSERTION (INSERTION WM EMB) INSERTION SHEET ) ASSY) (ACCINFO SHEET) (REGISTRATION SHEET) - 18 -...
  • Page 22 1000020346 40 XG0512001 1000043311 SEAM RIPPER COLOR CARTON MODEL:PE-430 10 X59535051 NEEDLE SET (PE430: ARG) 11 X59476021 XE5368001 CLEANING BRUSH CARTON (PE430: OTHER) 12 XC1074051 1000011717 XE5456001 DISC-SHAPED SCREWDRIVER CARTON (NV90E: RUS) 13 XC4237021 XE5455001 1000020732 DRIVER ASSY CARTON (NV90E: DEU, ITA, UK&IRE, CHE)

  • Page 23: Spare Parts

    SPARE PARTS - 20 -...
  • Page 24 SPARE PARTS CODE NAME R/H REMARKS DRIVER XE2395001 BOX SCREW DRIVER 6 GAUGE XA9153001 TENSION GAUGE 30 XA9154001 TENSION GAUGE 50 XC2277001 PUSH PULL GAUGE XC2278001 FEED GAUGE GREASE, OIL XC8385001 MOLYKOTE EM30L XC8387001 EPNOC AP (N) 0 XC8386001 MOLYKOTE M DISPERSION (EXCEPT USA) XC8388001 FBK OIL RO 100...
  • Page 25 11K08HF885V51...
