Removal Of Presser Bar - Brother NV-10A Service Manual

Computerized sewing machine.
Hide thumbs

Advertisement

Modules
13

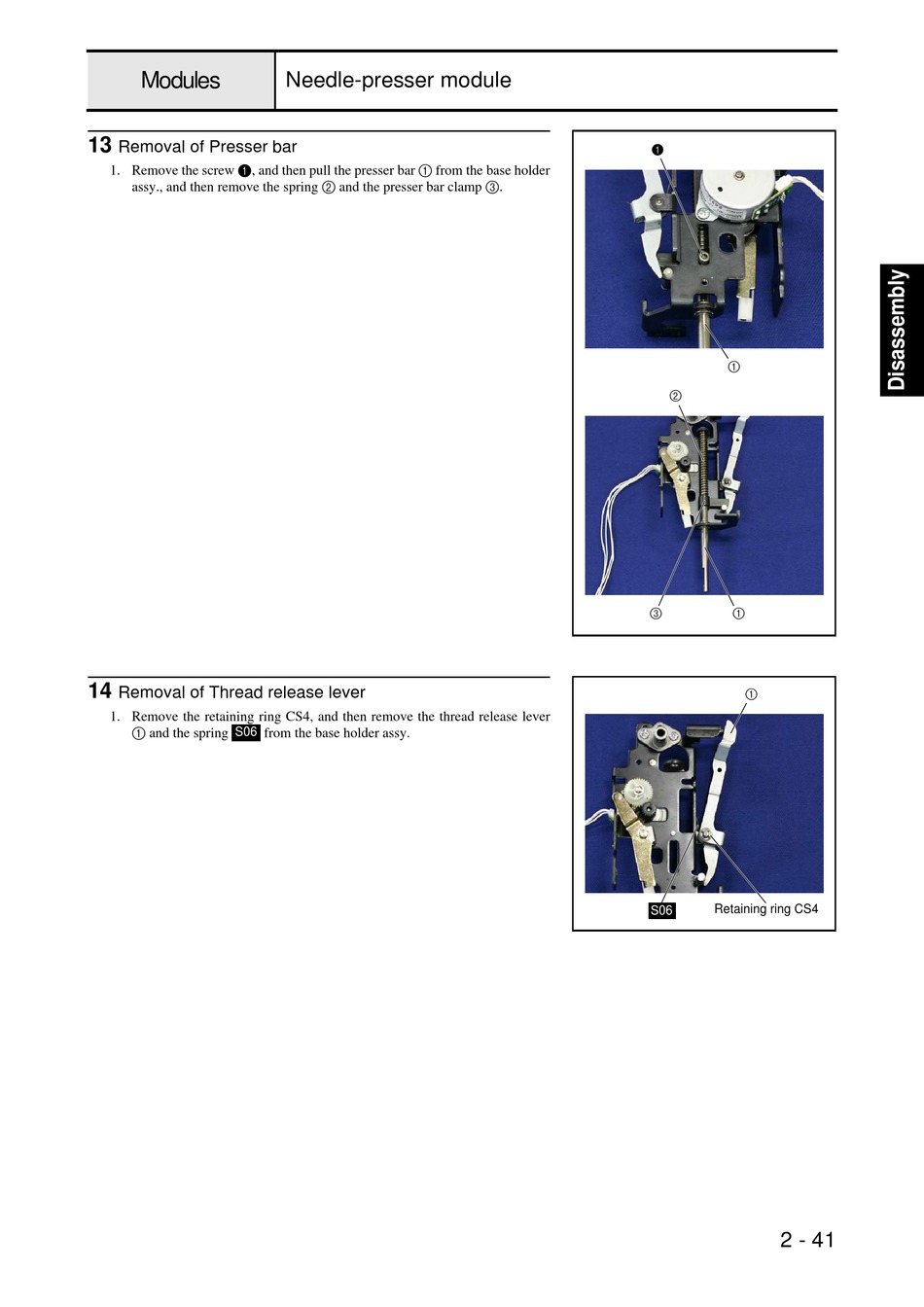

Removal of Presser bar

1. Remove the screw 1, and then pull the presser bar 1 from the base holder
assy., and then remove the spring 2 and the presser bar clamp 3.
14
Removal of Thread release lever
1. Remove the retaining ring CS4, and then remove the thread release lever
1 and the spring
S06
Needle-presser module
from the base holder assy.
1
1
2
3
1
1
Retaining ring CS4
S06
2 - 41
