Proline Prosonic Flow 93T Portable
Endress+Hauser
11.7.3

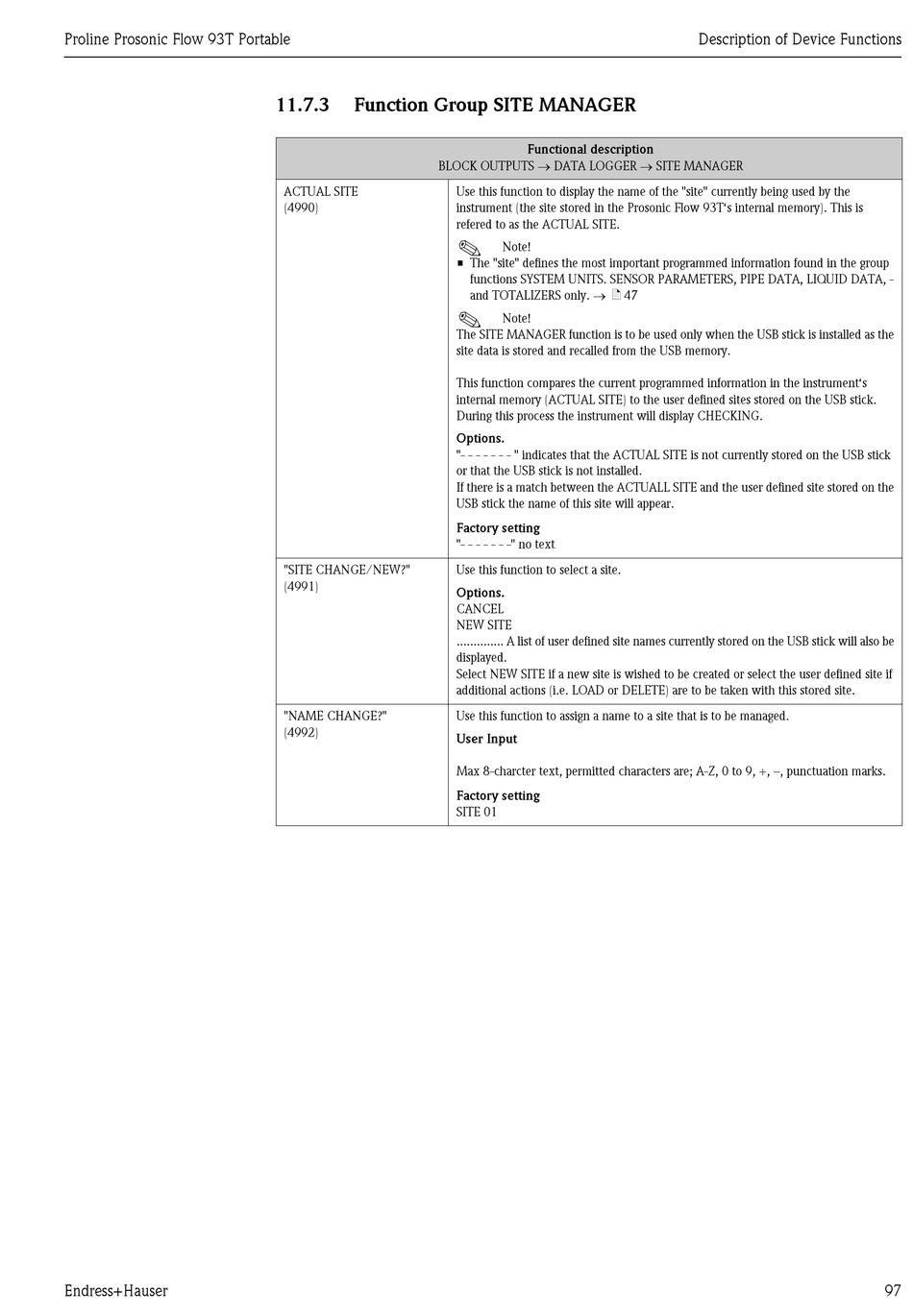

Function Group SITE MANAGER

BLOCK OUTPUTS DATA LOGGER SITE MANAGER
ACTUAL SITE
(4990)
"SITE CHANGE/NEW?"
(4991)
"NAME CHANGE?"
(4992)
Functional description
Use this function to display the name of the "site" currently being used by the
instrument (the site stored in the Prosonic Flow 93T's internal memory). This is
refered to as the ACTUAL SITE.
!
Note!
• The "site" defines the most important programmed information found in the group
functions SYSTEM UNITS. SENSOR PARAMETERS, PIPE DATA, LIQUID DATA, -
and TOTALIZERS only.  ä 47
!
Note!
The SITE MANAGER function is to be used only when the USB stick is installed as the
site data is stored and recalled from the USB memory.
This function compares the current programmed information in the instrument's
internal memory (ACTUAL SITE) to the user defined sites stored on the USB stick.
During this process the instrument will display CHECKING.
Options.
"- - - - - - - " indicates that the ACTUAL SITE is not currently stored on the USB stick
or that the USB stick is not installed.
If there is a match between the ACTUALL SITE and the user defined site stored on the
USB stick the name of this site will appear.
Factory setting
"- - - - - - -" no text
Use this function to select a site.
Options.
CANCEL
NEW SITE
.............. A list of user defined site names currently stored on the USB stick will also be
displayed.
Select NEW SITE if a new site is wished to be created or select the user defined site if
additional actions (i.e. LOAD or DELETE) are to be taken with this stored site.
Use this function to assign a name to a site that is to be managed.
User Input
Max 8-charcter text, permitted characters are; A-Z, 0 to 9, +, –, punctuation marks.
Factory setting
SITE 01
Description of Device Functions
97
