Installation
18
Model 2
1.
Set the sensor distance determined (e.g. C9) on the sensor holder.
– Position the sensor holders with the aid of the mounting rail.
A
27. 25 . 23
. 21. 19 . 17 . 15 . 13 . 11 . 9 . 7 . 5 . 3 . 1
K I H G F E
D C B A
27 25 23
K I H G F E

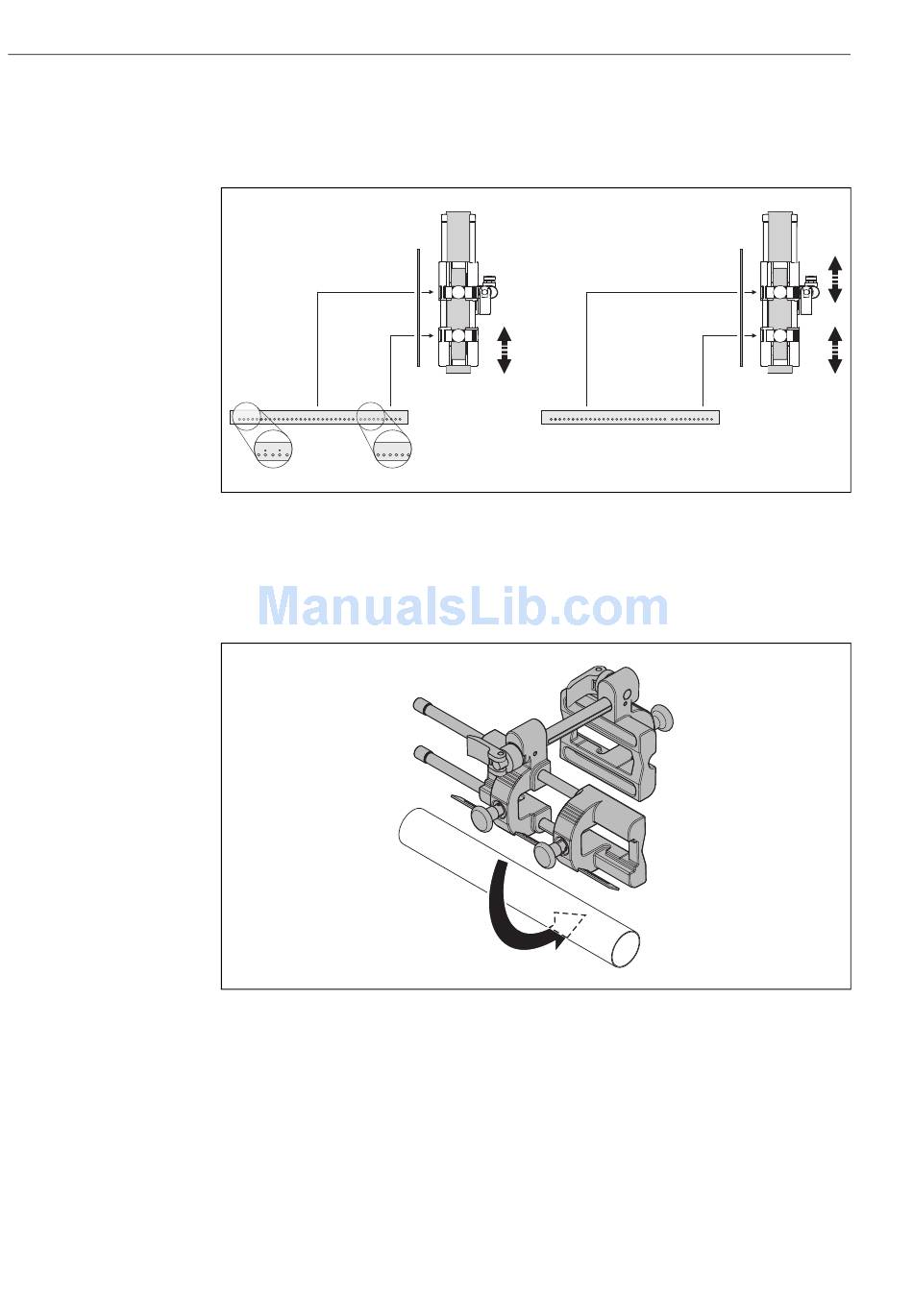

Fig. 12:
Setting the sensor distance with the mounting rail (value from POSITION SENSOR function)
A
Sensor distance for measurement via one traverse
B
Sensor distance for measurement via two traverses
2.
Guide the sensor holder over the pipe.
Fig. 13:
Setting the sensor holder on the pipe
Proline Prosonic Flow 93T Portable
B
27. 25 . 23 . 21. 19 . 17 . 15 . 13 . 11 . 9 . 7 . 5 . 3 . 1
K I H G F E D C B A
A0013546
A0013542
Endress+Hauser
