banks of memory may be alternately connected and disconnected
from the system bus under software control for multiprogramming
or other uses.
TDL SYSTEM MONITOR BOARD
The SMB board is a multipurpose board that provides a monitor,
RAM, and I/O device controllers. The SMB contains a 2K monitor,
the ZAPPLETM monitor in PROM. The monitor is a comprehensive
debug package and collection of software I/O drivers, including a
serial I/O driver and an audio tape-cassette driver. In addition to the
2K of PROM, the SMB contains 2K bytes of RAM, available to the
system user. Two serial I/O ports are available. They can provide
serial I/O at 110 to 9600 baud and interface to either a 20-mA cur-
rent loop, or RS-232 device. Baud rates of 110 (Teletype), 300, 600,
1200, 4800, and 9600 are jumper-selectable. One parallel I/O port is
available to the user and can be software configured to either an
input, or output port.
Courtesy Technical Design Labs, Inc.

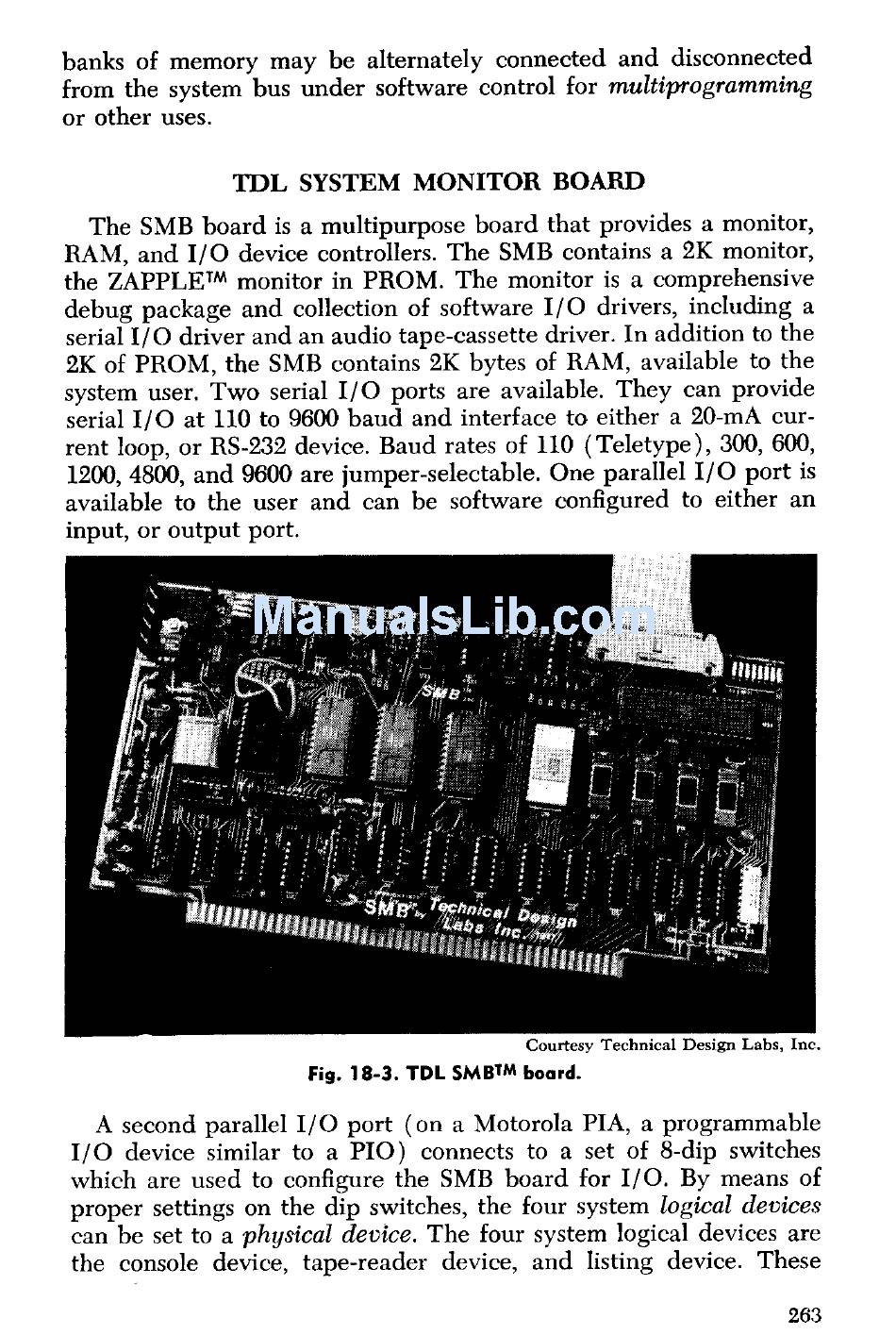

Fig. 18 -3. TDL SMBTM board.
A second parallel I/O port (on a Motorola PIA, a programmable
I/O device similar to a PIO) connects to a set of 8-dip switches
which are used to configure the SMB board for I/O. By means of
proper settings on the dip switches, the four system logical devices
can be set to a physical device. The four system logical devices are
the console device, tape-reader device, and listing device. These
263
