ZiLOG Z80 Handbook page 18

A
B
D
H
F
C
E
L

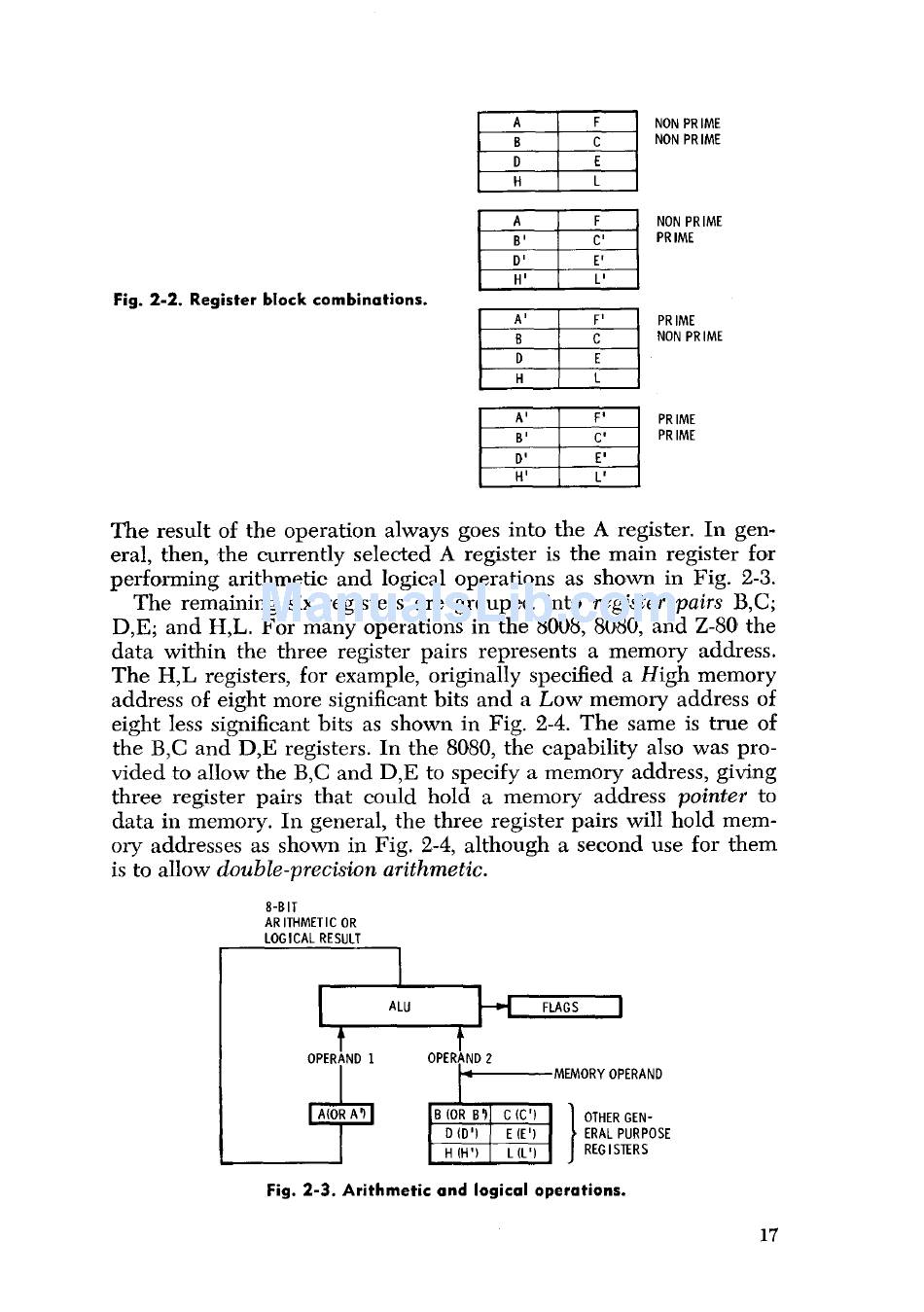

Fig. 2- 2. Register block combinations.
A
B
D
H
F
C.
E'
L'
A
B
D
H
F'
C
E
L
W H
NON PRIME
NON PRIME
NON PRIME
PRIME
PRIME
NON PRIME
PRIME
PRIME
The result of the operation always goes into the A register. In gen-
eral, then, the currently selected A register is the main register for
performing arithmetic and logical operations as shown in Fig. 2-3.
The remaining six registers are grouped into register pairs B,C;
D,E; and H,L. For many operations in the 8008, 8080, and Z-80 the
data within the three register pairs represents a memory address.
The H,L registers, for example, originally specified a High memory
address of eight more significant bits and a Low memory address of
eight less significant bits as shown in Fig. 2-4. The same is true of
the B,C and D,E registers. In the 8080, the capability also was pro-
vided to allow the B,C and D,E to specify a memory address, giving
three register pairs that could hold a memory address pointer to
data in memory. In general, the three register pairs will hold mem-
ory addresses as shown in Fig. 2-4, although a second use for them
is to allow double-precision arithmetic.
8-BIT
AR ITHMETIC OR
LOGICAL RESULT
AL U
A
FL GS
OPERA ND 1
OPER AND 2
MEMORY OPERAND
AIOR A9 B (OR 8 1 C (C')
1
OTHER GEN-
L
L (n
E (E'1 ERAL PURPOSE
H (H ')_A L (L')
J
REGISTERS
Fig. 2-3. Arithmetic and logical operations.
17
