Image Processor Board (PL9.1.27)

Phaser 6280 Color Laser Printer Service Manual
1. Remove the Rear Cover (page 8-12).

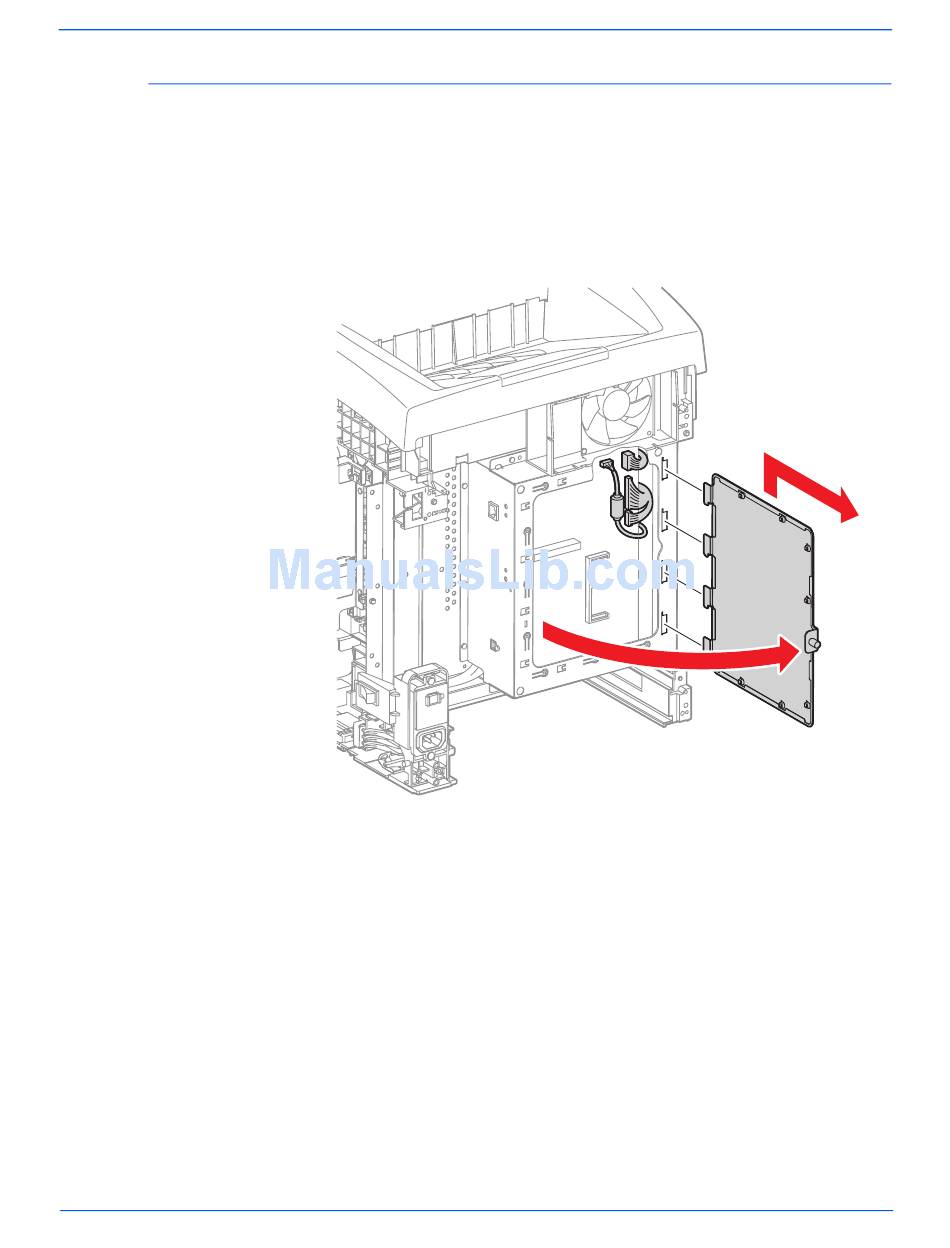

2. Loosen the Knurling Screw (PL9.1.44) and open the Window Shield
(PL9.1.21).
3. Lift the Window Shield up to release the 4 tabs of the Window Shield from
the holes on the I/P Board Shield (PL9.1.25).
4. Remove the Optional Hard Drive (if installed) (page 8-98).
5. Disconnect the 4 wiring harness connectors on the I/P Board.
6. Remove the I/P Board Shield Assembly (page 8-96).
