5.3.7 Remote ON/OFF control

Remote ON/OFF control can be used to turn the control box on and off without using
the teach pendant. It is typically used in the following applications:
The remote ON/OFF control provides a small auxiliary 12V supply, which is kept
active when the controller box is turned off. The "on" and "off" inputs are intended
for short time activation only. The "on" input works in the same way as the power
button. Always use the "off" input for remote "off" control as this signal allows the
control box to save open files and shut down correctly.
The electrical specifications are shown below.

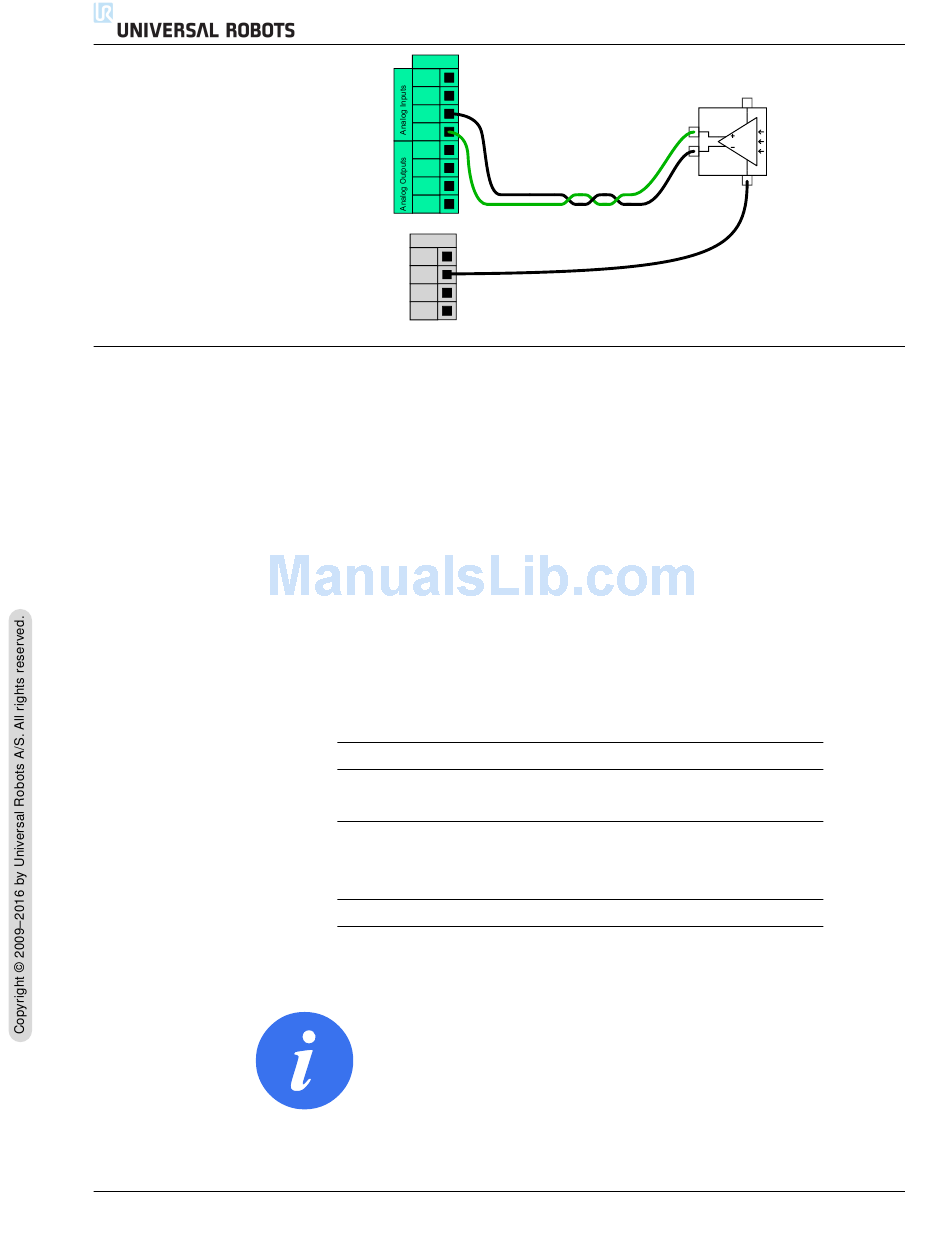

The following examples show how to use remote ON/OFF.
UR3/CB3
Analog
AG
AI0
AG
AI1
AG
AO0
AG
AO1
Power
PWR
GND
24V
0V
• When the teach pendant is inaccessible.
• When a PLC system must have full control.
• When several robots must be turned on or off at the same time.
Terminals
[12V - GND]
[12V - GND]
[ON / OFF]
[ON / OFF]
[ON / OFF]
[ON]
NOTE:
A special feature in the software can be used to load and start pro-
grams automatically, see part II.
Parameter Min
Voltage 10
Current -
Inactive voltage 0
Active voltage 5
Input current -
Activation time 200
I-40
5.3 Controller I/O
Typ Max Unit
12 13 V
- 100 mA
- 0.5 V
- 12 V
1 - mA
- 600 ms
Version 3.3.3
