How to set the roll paper on a paper core

When you use the Media Take-up unit, fix the paper securely on a paper core by using tape.

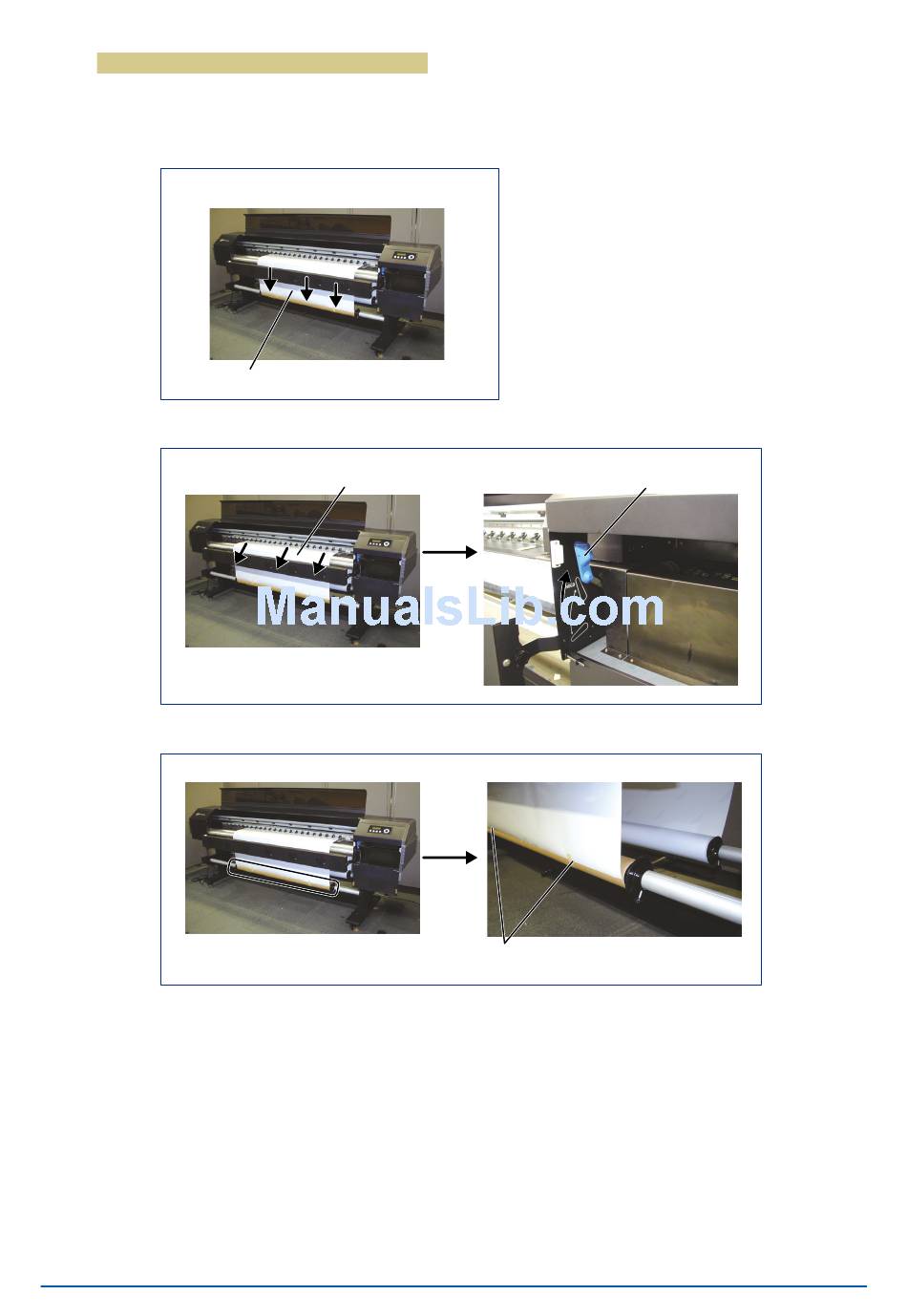

1. Referrng to the above-mentoned method to set the roll paper, pull the paper out untl t reaches the paper
core on the Meda Take-up unt.
Pulling out the paper media
2. Take up the slack of the paper, and rase the Meda Set Lever.
Take up the slack of the paper
Media Set Lever
3. Fx the paper on the paper core by usng tape.
Fix with tape
If the position of the paper core does not fit, adjust the position by changing the position of the flange.
