3.3 Setting a roll paper

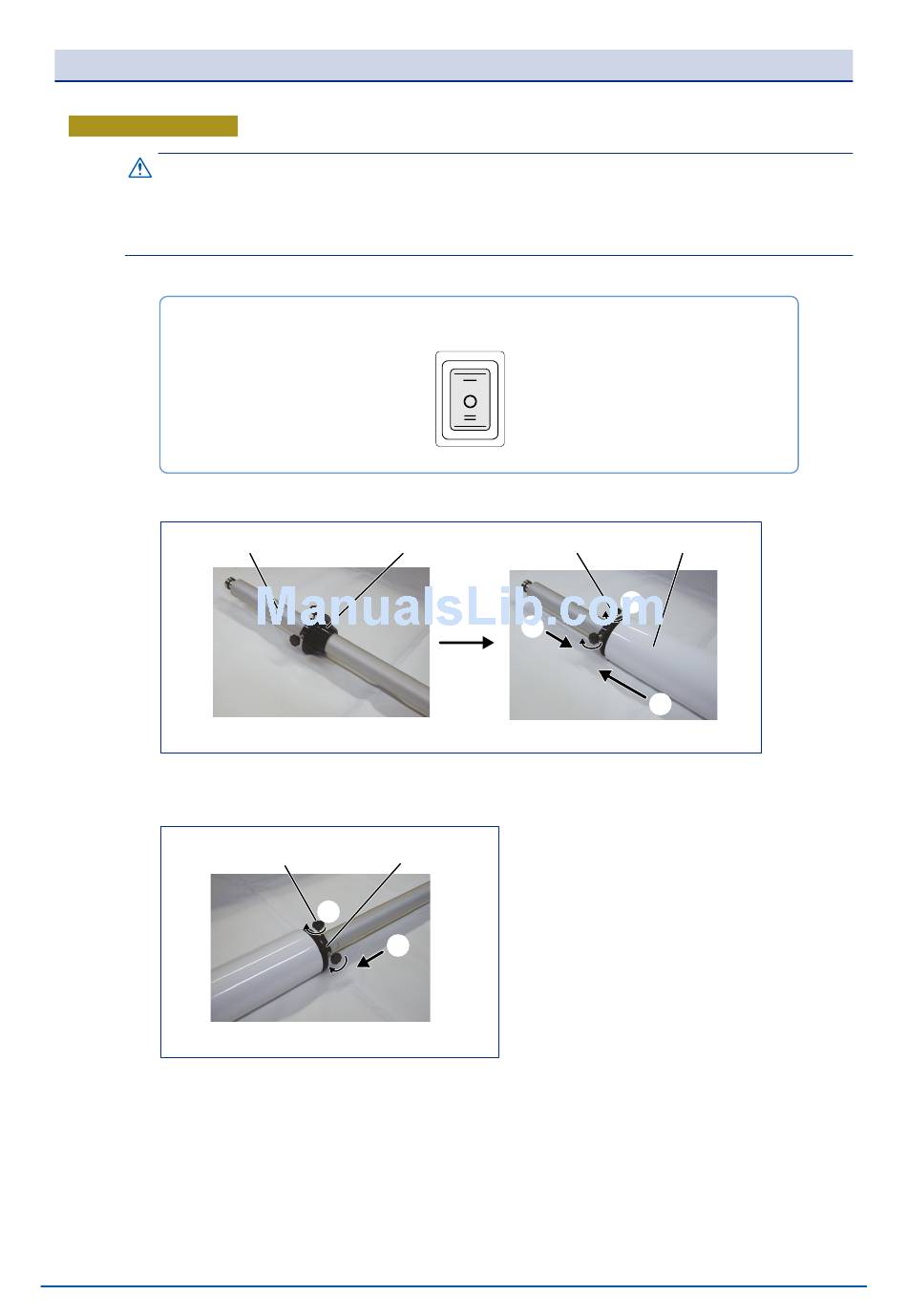

Setting a roll paper
CAUTION ● When setting a roll paper in the printer, try to avoid touching the printing surface
directly with your hands. Fingerprints on the printing surface will adversely affect ink
adhesion.
● Take care not to cut your fingers on the edges of the paper when handling it.
1. When the power of the prnter s on, set the Meda Feedng System Swtch to the off ("O") sde.
2. Set the position of the flange, tighten the setscrews and set a roll paper on the flange.
Media Feeding Roller
3. Move another flange on the opposite side to the position which allows the setting of the roll paper, and
tghten the setscrew.
Flange
Setscrew Flange
2
1
FEEDING SW
SW OFF
OFF
Setscrew
1
3-4
Roll Paper
2
3
