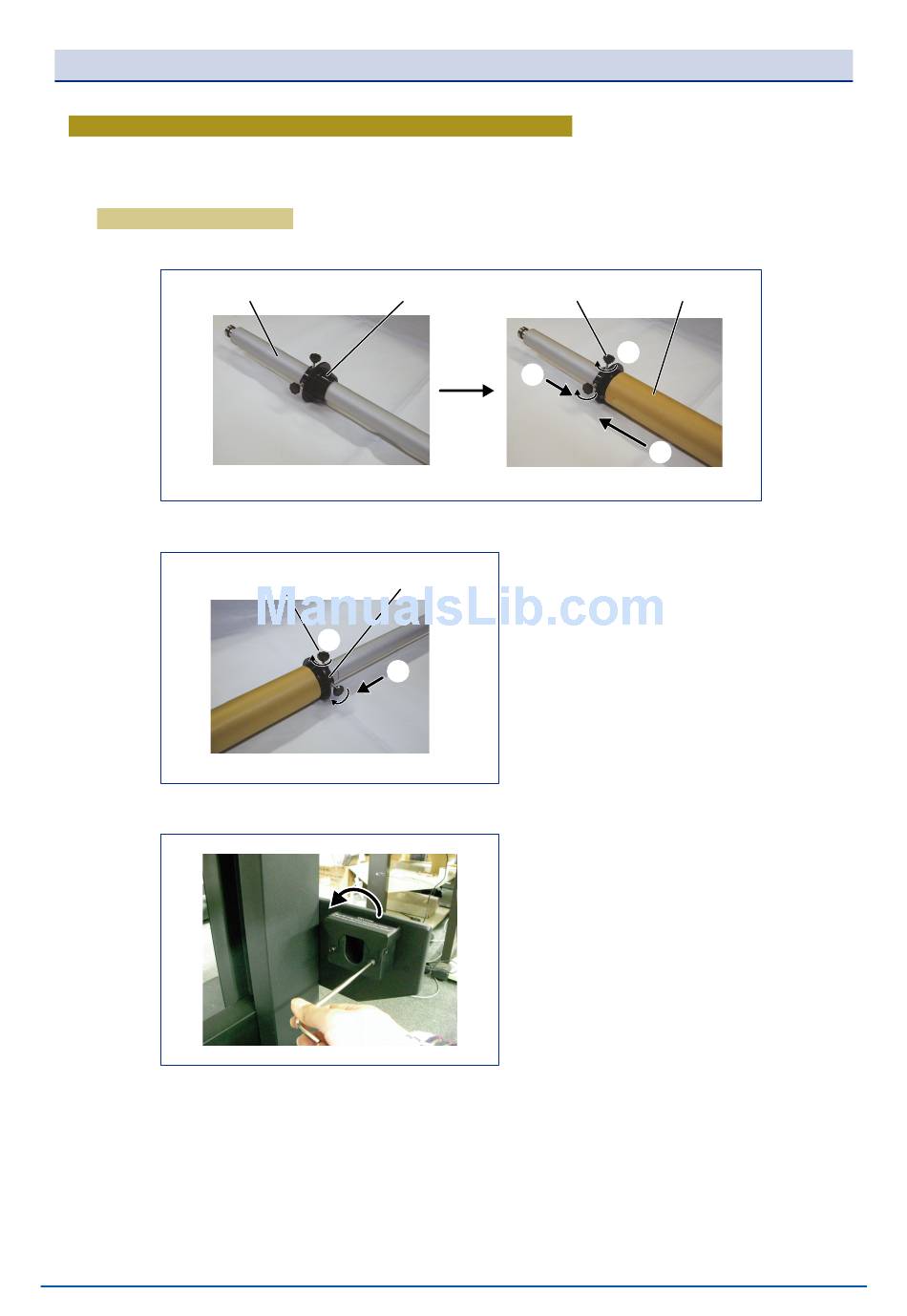

3.4 Setting the roll paper for taking-up printing
How to set the roll paper when the Media Take-up unit is used
To use the Meda Take-up unt, pull out the paper so that the tp of the roll paper reaches the paper core on the
Meda Take-up unt.

How to set a paper core

1. Set the position of the right flange, tighten the setscrews and set a paper core on the flange.
Media Take-up Roller Flange Setscrew Paper core
2
1
3
2. Move the left flange to the position which allows setting of the roll paper, and tighten the setscrew.
Setscrew Flange
2
1
3. Remove the screws on the stocker holder on both sdes of the front body, and remove the cover.
3-9
