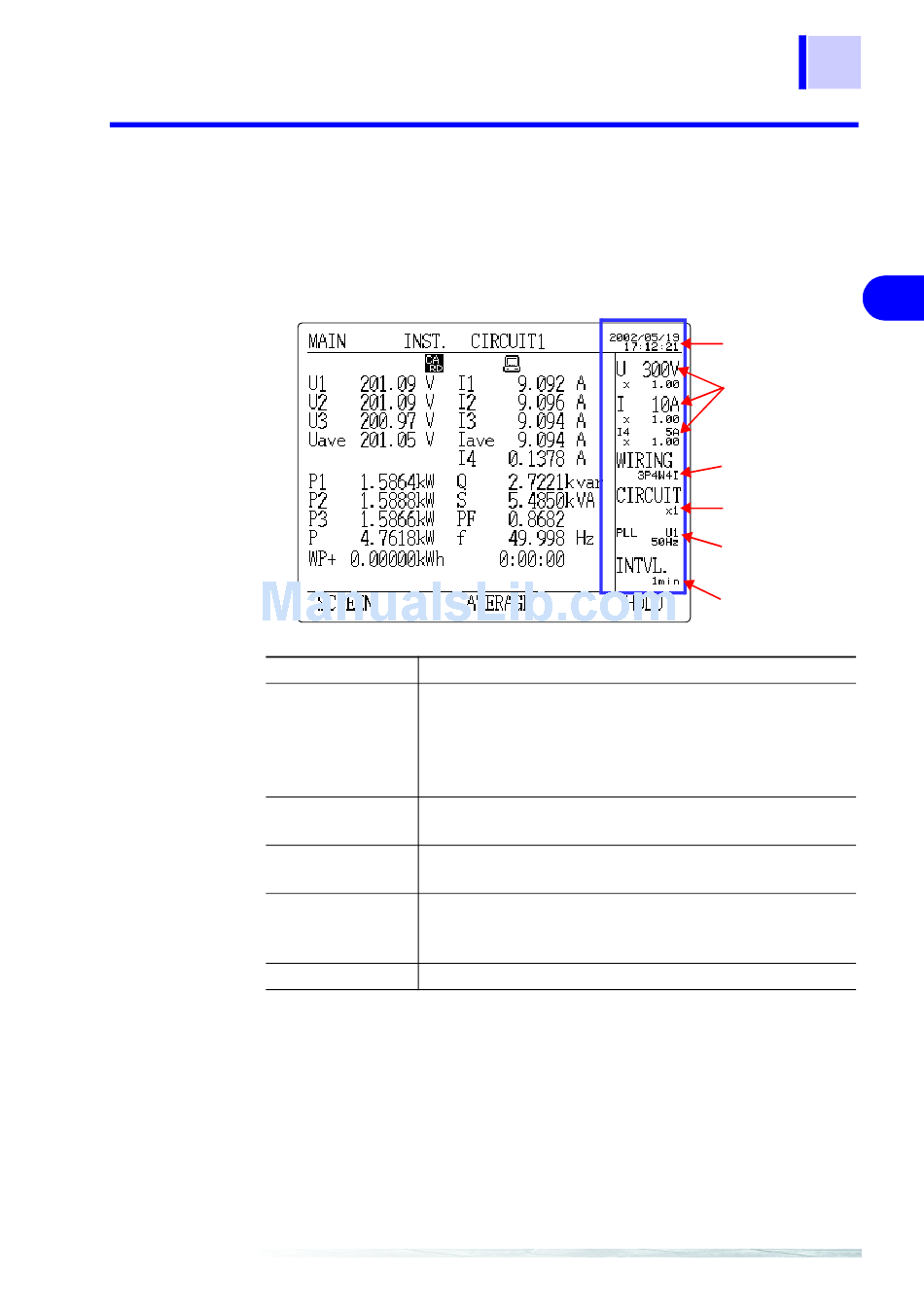

2.2.2 Common Display

This section of the screen shows information common to all mea-
surement screens (except the zoom screen and the wiring diagram
screen).
Time
Range
Wiring
No. of circuits
Synchronization
method
Interval
2.2 Screen Names and Display Elements
Displays the current time.
Displays the voltage range and current range of
the on-screen circuit. The VT(PT) ratio and CT
ratio are shown under these ranges. The current
range and CT ratio of I4 are shown only when
3P4W4I is set as the wiring method.
Displays the wiring method set on the setting
screen.
Displays the number of circuits to be measured
as set on the setting screen.
Displays the synchronization method and fre-
quency of the line to be measured as set on the
setting screen.
Displays the interval set on the setting screen.
Common Display
Time
Range
Wiring
No. of circuits
Synchronization
method
Interval
