6.7 Measuring Harmonic

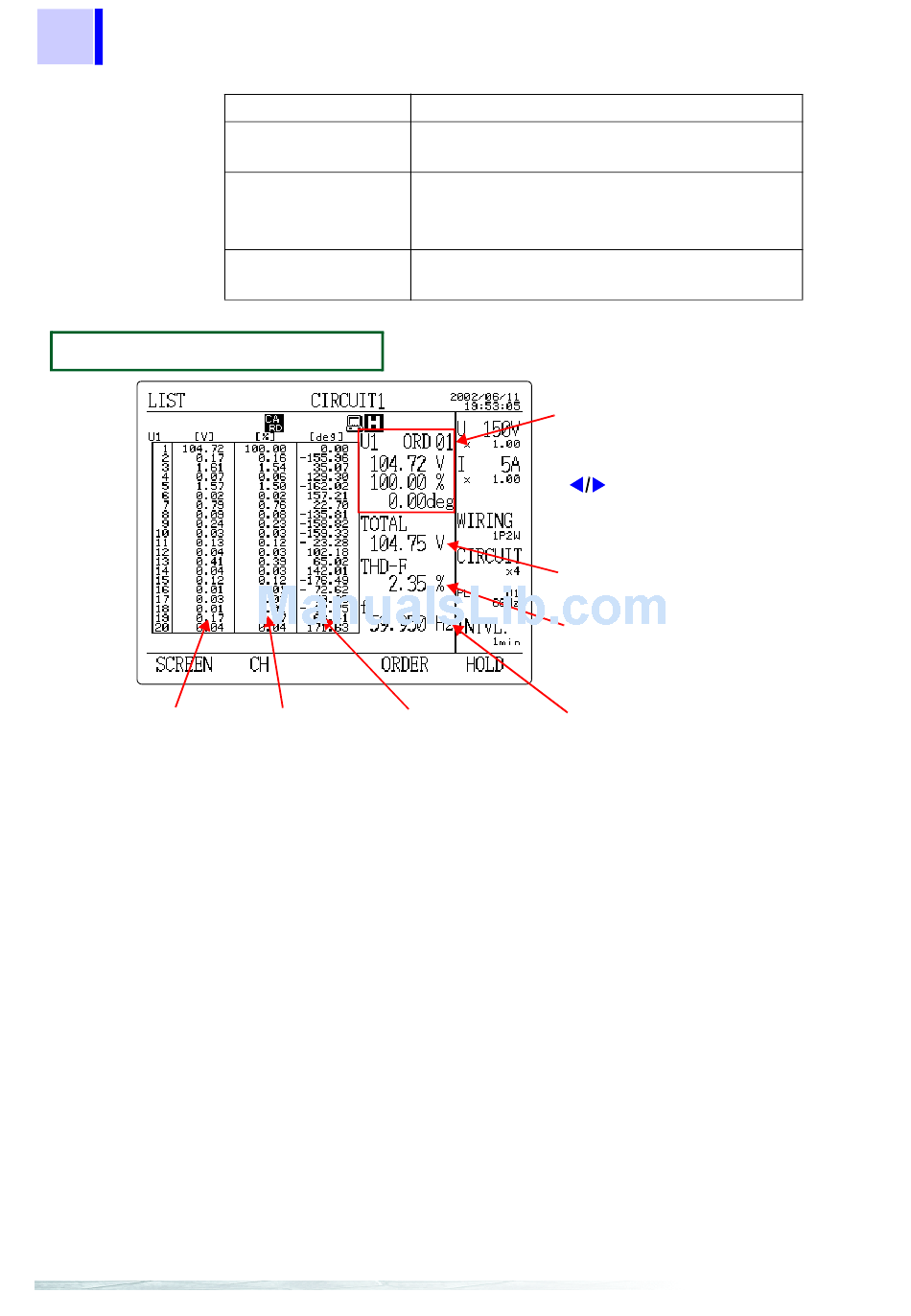

Harmonic-Voltage-Level List Screen
Harmonic level
Harmonic level
Harmonic content Content of each order of harmonic as a
Harmonic-voltage
(current) phase
angle
Harmonic-power
phase angle
Harmonic content
Level of each order of harmonic
percentage of the fundamental
Phase angle of each order of harmonic
with respect to the phase of the funda-
mental component of U
Power factor of each order of harmonic
expressed as an angle
Harmonic level, Harmonic
content, and phase-angle
data of the specified order
The order is changed using
Total value up to the 40th
piece of data
Total harmonic distortion
(THD-F or THD-R)
* Not shown for power data
Frequency
Phase angle
1
of the cursor key.
