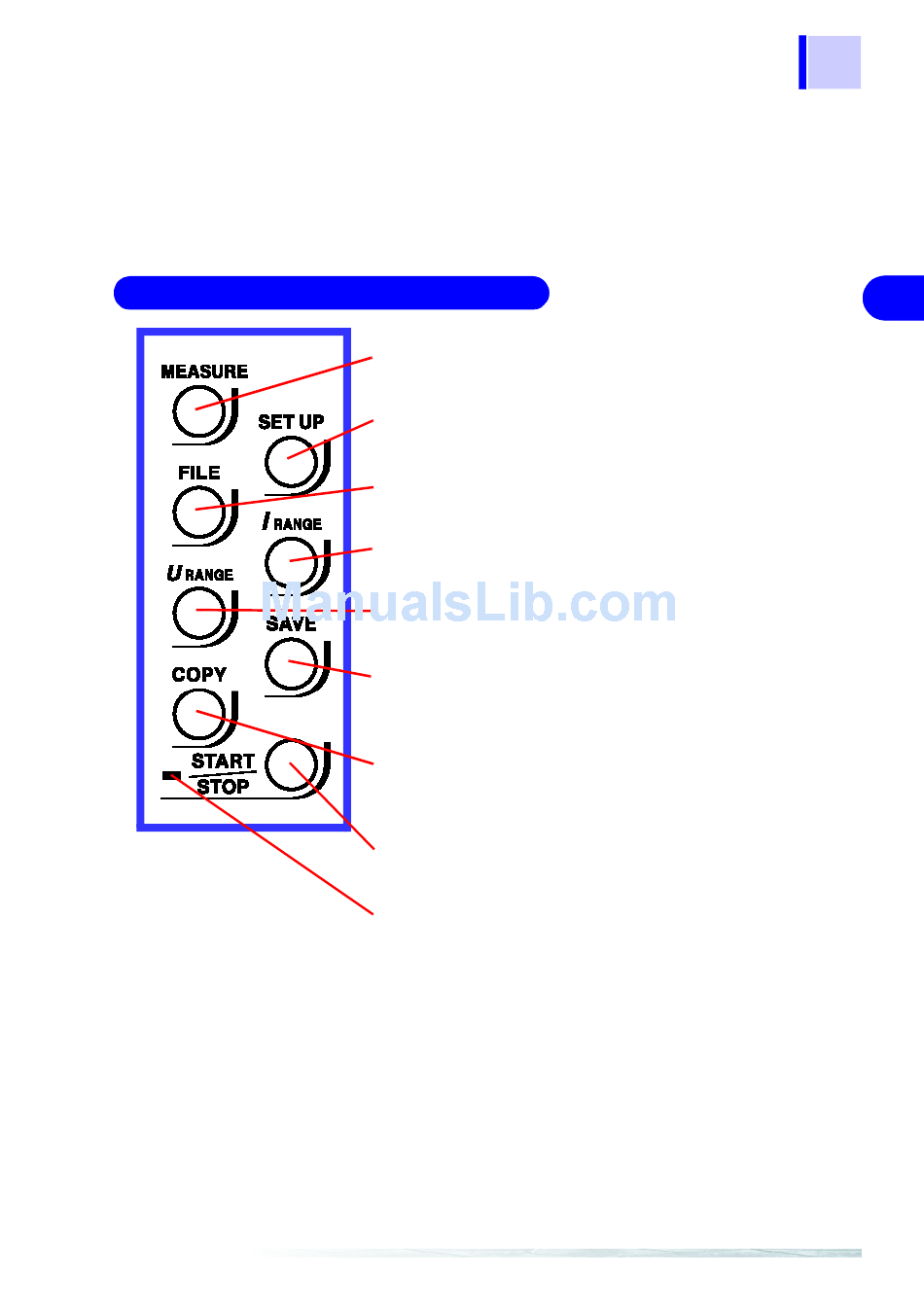

2.1 Instrument Labels and Functions
MEASURE key
Switches to a screen that displays measurements.
SET UP key
Switches to a screen that displays settings.
FILE key
Used to work on files.
I RANGE key
Sets the current measurement range for the circuit
to be measured on-screen.
U RANGE key
Sets the voltage measurement range.
SAVE key
Enables the manual saving of measurement data
on the PC card or in internal memory. Manual sav-
ing is not possible during time-series measurement.
COPY key
Outputs screen image data to the PC card, internal
memory, or a printer.
START/STOP key
Starts or stops time-series measurements including
integration measurement.
START/STOP LED
Flashes in green while the instrument is standing by
for time-series measurement, and lights in green
while the instrument is performing time-series mea-
surement.
