4.2.2 Basic Wiring for Single-Circuit Measurement

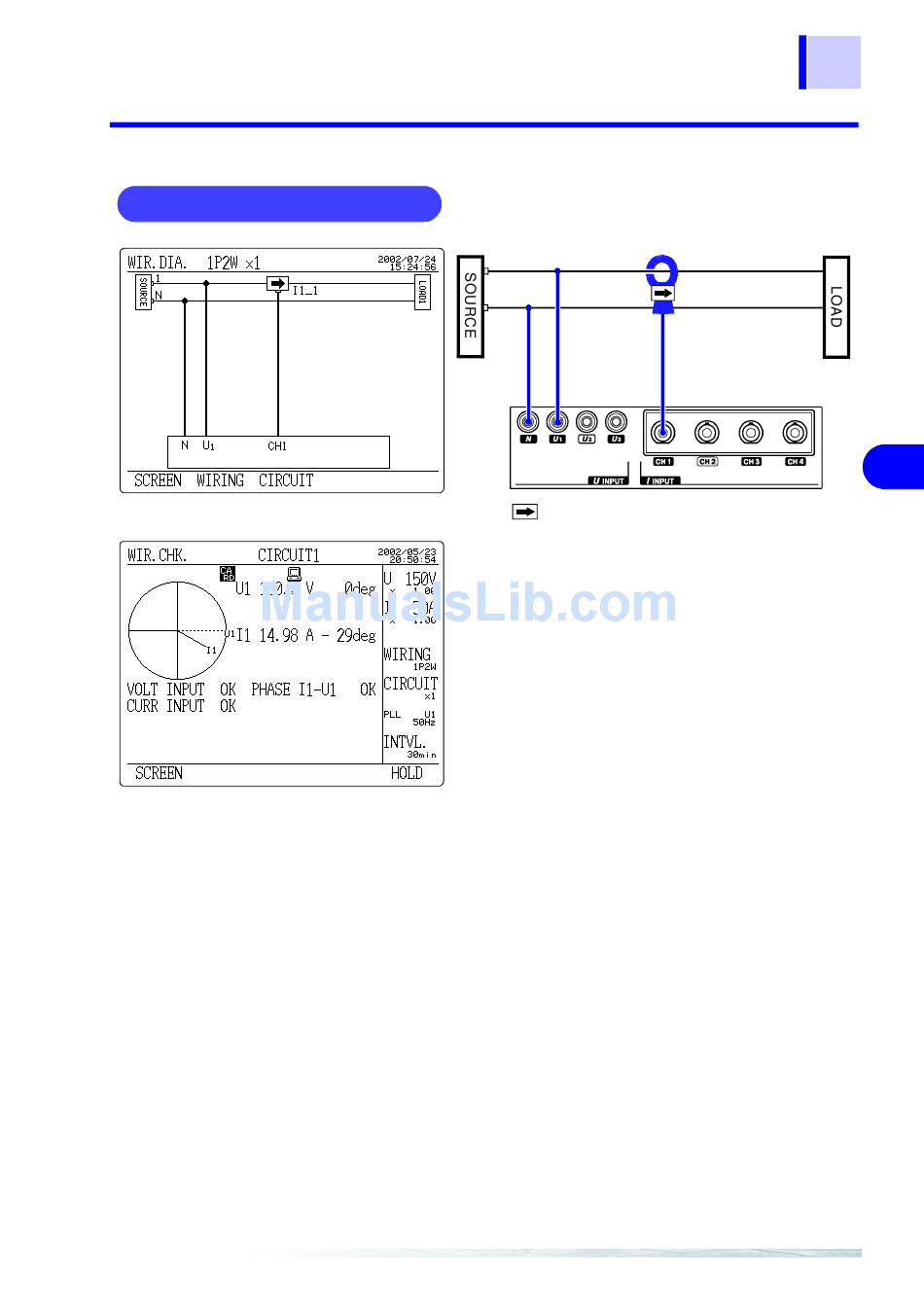

Single-phase 2-wire (1P2W)
Wiring diagram screen
Wiring check screen (Power factor: 0.87)
❖
4.2.5 Checking the Wiring (page 49)
4.2 Connection Methods
Red
1
Black
N
Face the arrow toward the Load
39
