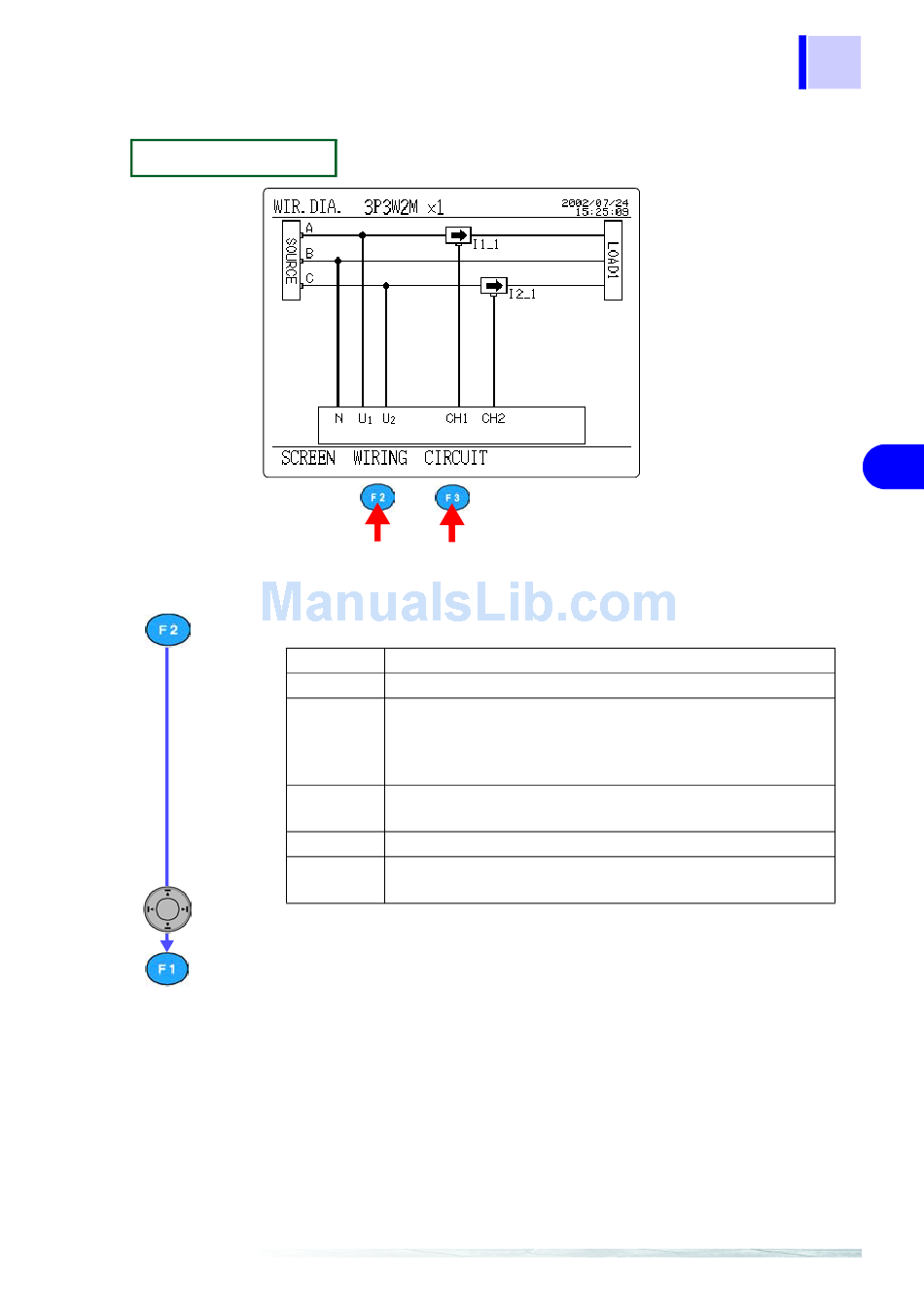

Wiring diagram screen
(1) Set the Wiring Method.
Press the
WIRING
Select a wiring method by using the cursor key.
select
Press the
F2 (WIRING) key to display the selection window.
1P2W Measurement of a single-phase, 2-wire line
1P3W Measurement of a single-phase, 3-wire line
3P3W2M Measurement of a three-phase, 3-wire line (by the two-
power-meter method)
Select this method to measure three-phase power by
*:
measuring the current at two positions only.
3P3W3M Measurement of a three-phase, 3-wire line (by the
three-power-meter method)
3P4W Measurement of a three-phase, 4-wire line
3P4W4I Measurement of a three-phase, 4-wire line (used for
neutral conductor measurement)
(select) key.
F1
4.2 Connection Methods
37
