Regeneration
Consumption
Total Power Value
• The harmonic voltage, the current level, voltage and the cur-
rent content are not output in negative numbers.
• The harmonic voltage and the current phase angle are based
on the phase of the fundamental of the PLL synchronization
source, U
• The phase angle of harmonic power is the power factor of each
order of harmonic expressed as an angle.
• The total voltage (current) is not output in negative numbers.
Total Harmonic Distortion Factor
.
1

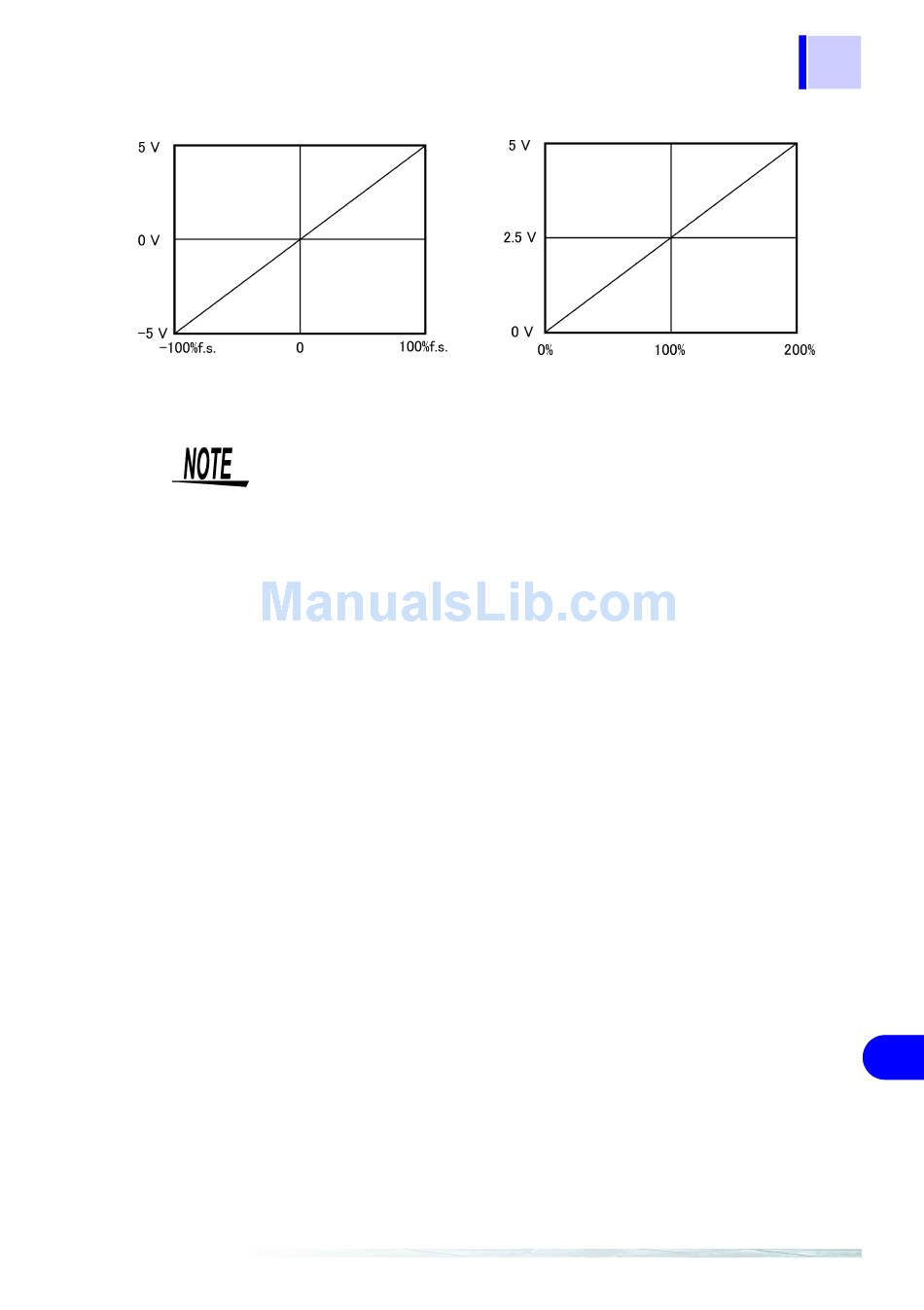

11.4 Output Waveform
(THD-F, THD-R)
167
1
2
3
4
5
6
7
8
9
10
11
