98

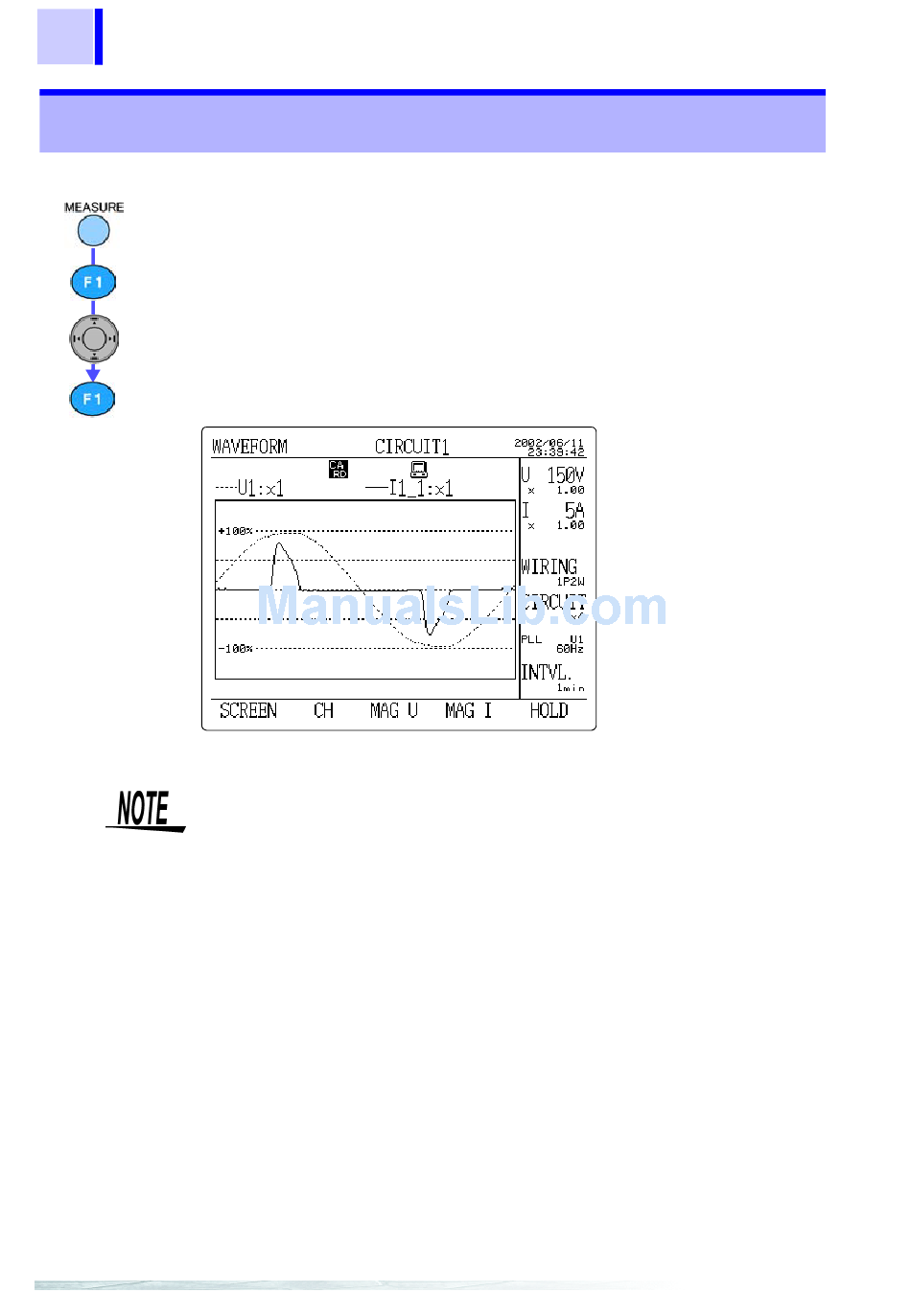

6.3 Displaying a Waveform
6.3 Displaying a Waveform
Display the voltage and current waveforms of a selected channel.
Press the
Press the
SCREEN
Select "
Press the
select
MEASURE
(SCREEN) key to display the selection window.
F1
WAVEFORM
(select) key to display the waveform display screen.
F1
• The voltage waveform in the 3P3W3M wiring system is the
phase voltage waveform referring to a virtual neutral point.
• The waveform of U3 and I3 is not displayed on the screen in
the 3P3W2M is set as the wiring method.
key to display the measurement screen.
" using the cursor key.
