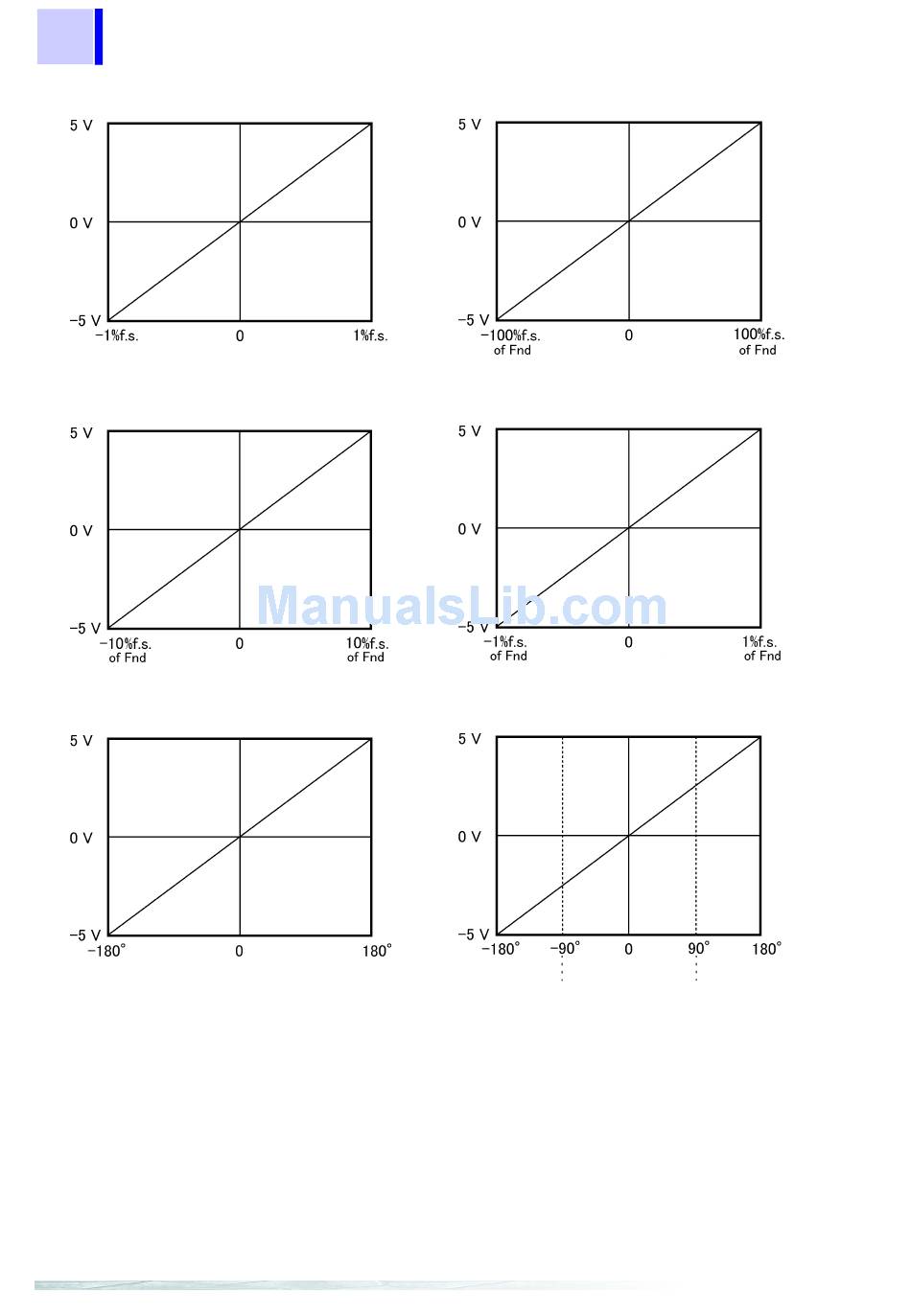

11.4 Output Waveform
Inflow
Inflow
Outflow
Outflow
Harmonic Power Content
Harmonic Power Level
(magnification: 100)
(magnification: 1)
Inflow
Outflow
Inflow
Outflow
Harmonic Power Content
Harmonic Power Percentage Content
(magnification: 100)
(magnification: 10)
LAG
LEAD
Inflow
Outflow
Outflow
Harmonic Voltage (Current) Phase Angles
Harmonic Power Phase Angles
