5.4 Setting on the Save/Print Items Setting Screen (SAVE, PRINT ITEMS)
(2) Set the Details of Harmonic Measurement-data Output.
Press the
DETAILS

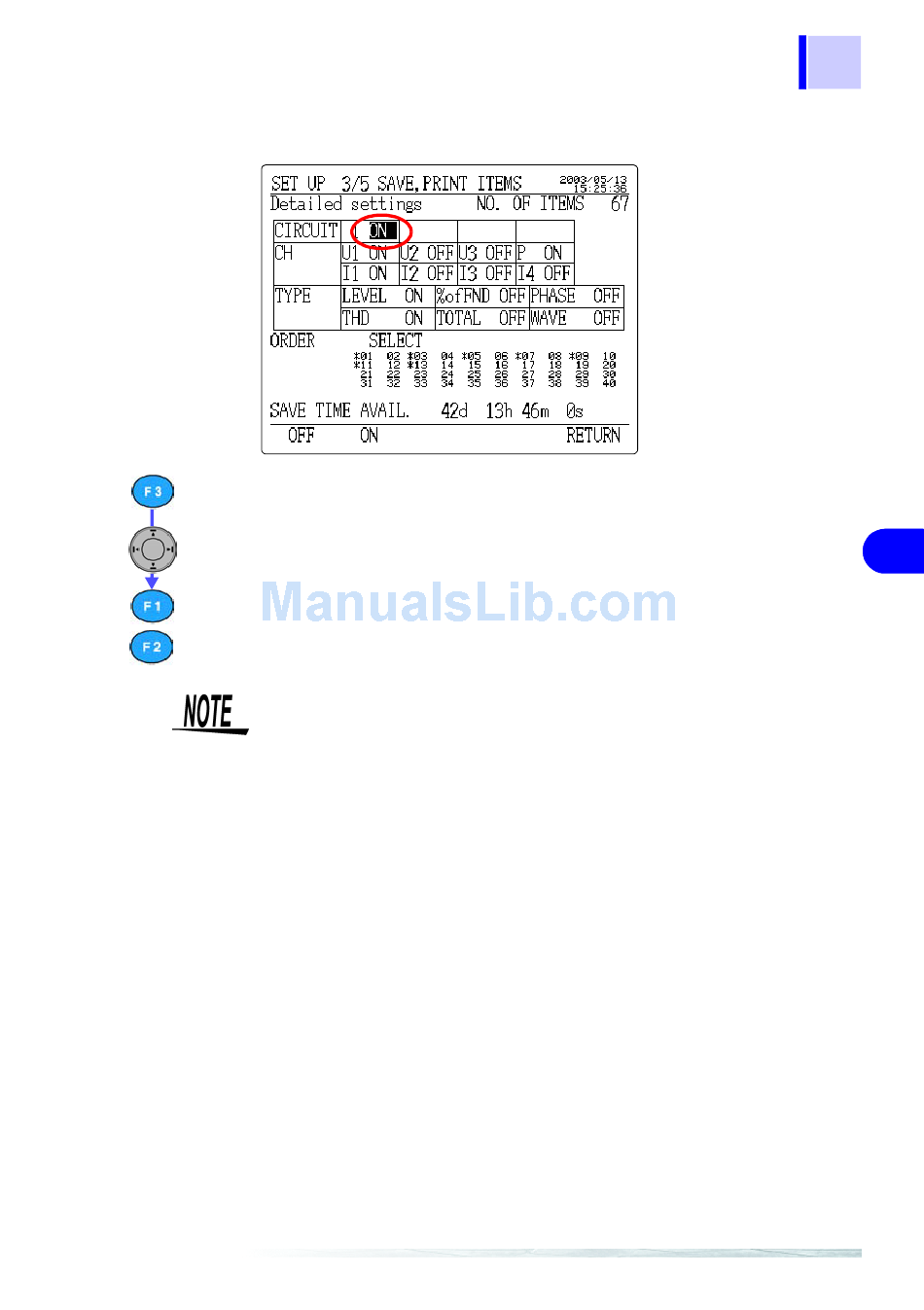

screen to display the harmonic output detail setting screen.
Turn the output of each piece of data ON/OFF using the cursor
and function keys.
OFF
ON
• The waveform data is not printed in the auto print function.
• The waveform data of U3 and I3 are not saved in the 3P3W2M
(Detail Setting) key on the save/print items setting
F3
wiring system.
83
1
2
3
4
5
6
7
8
9
10
11
