4.2 Connection Methods

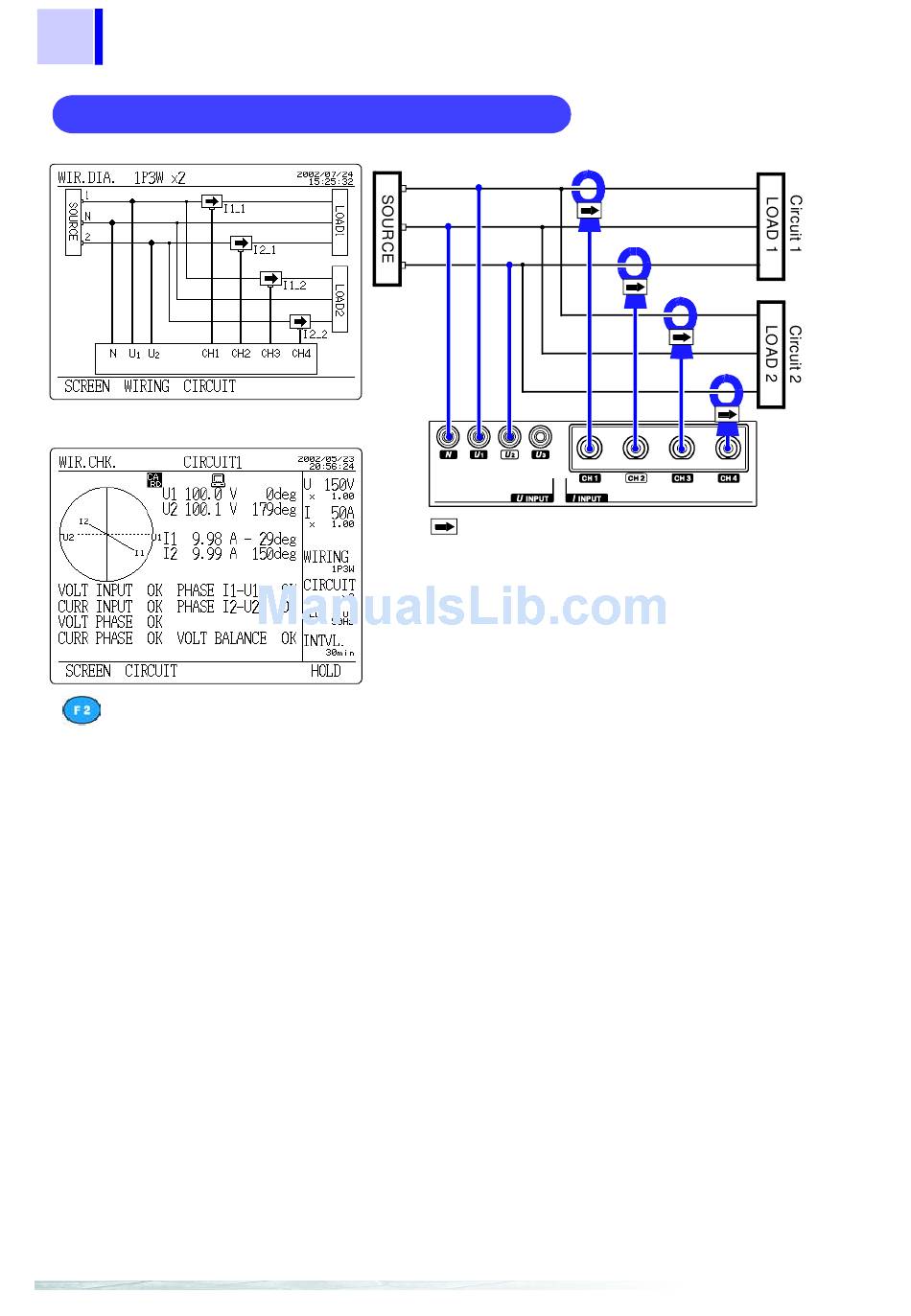

Single-phase 3-wire, 2circuits ( )
1P3W X 2
Red
1
Black
N
Yellow
2
Wiring diagram screen
Face the arrow toward the Load
changes the circuit to display.
Wiring check screen (Power factor: 0.87)
❖
4.2.5 Checking the Wiring (page 49)
