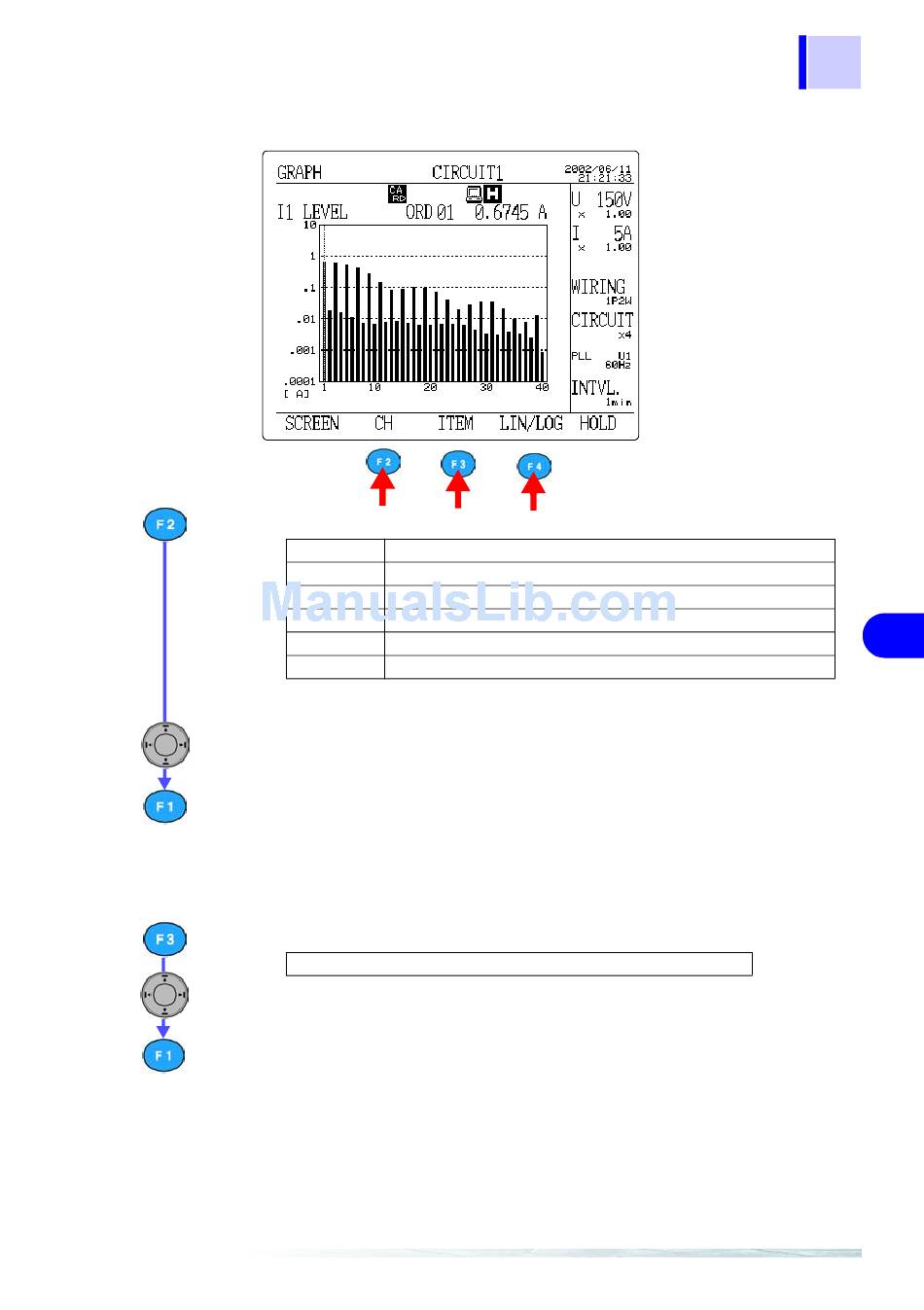

(1) Change the Channel to be Displayed.
Press the
CH
*: When multiple circuits are set, I and P are followed by a circuit
Select a channel to be displayed using the cursor key.
Press the
select
(2) Change the Item to be Displayed.
Press the
ITEM
Select an item to be displayed using the cursor key.
Press the
select
(CH) key to display the selection window.
F2
1P2W
U1, I1, P
1P3W
U1, U2, I1, I2, P
3P3W2M
U1, U2, U3, I1, I2, I3, P
3P3W3M
U1, U2, U3, I1, I2, I3, P
3P4W
U1, U2, U3, I1, I2, I3, P
3P4W4I
U1, U2, U3, I1, I2, I3, I4, P
number. (Ex., I1_1, I1_2, P_1, P_2)
(select) key.
F1
(ITEM) key to display the selection window.
F3
Level, Percentage, Phase angle
(select) key.
F1
6.7 Measuring Harmonic
111
1
2
3
4
5
6
7
8
9
10
11
