Software

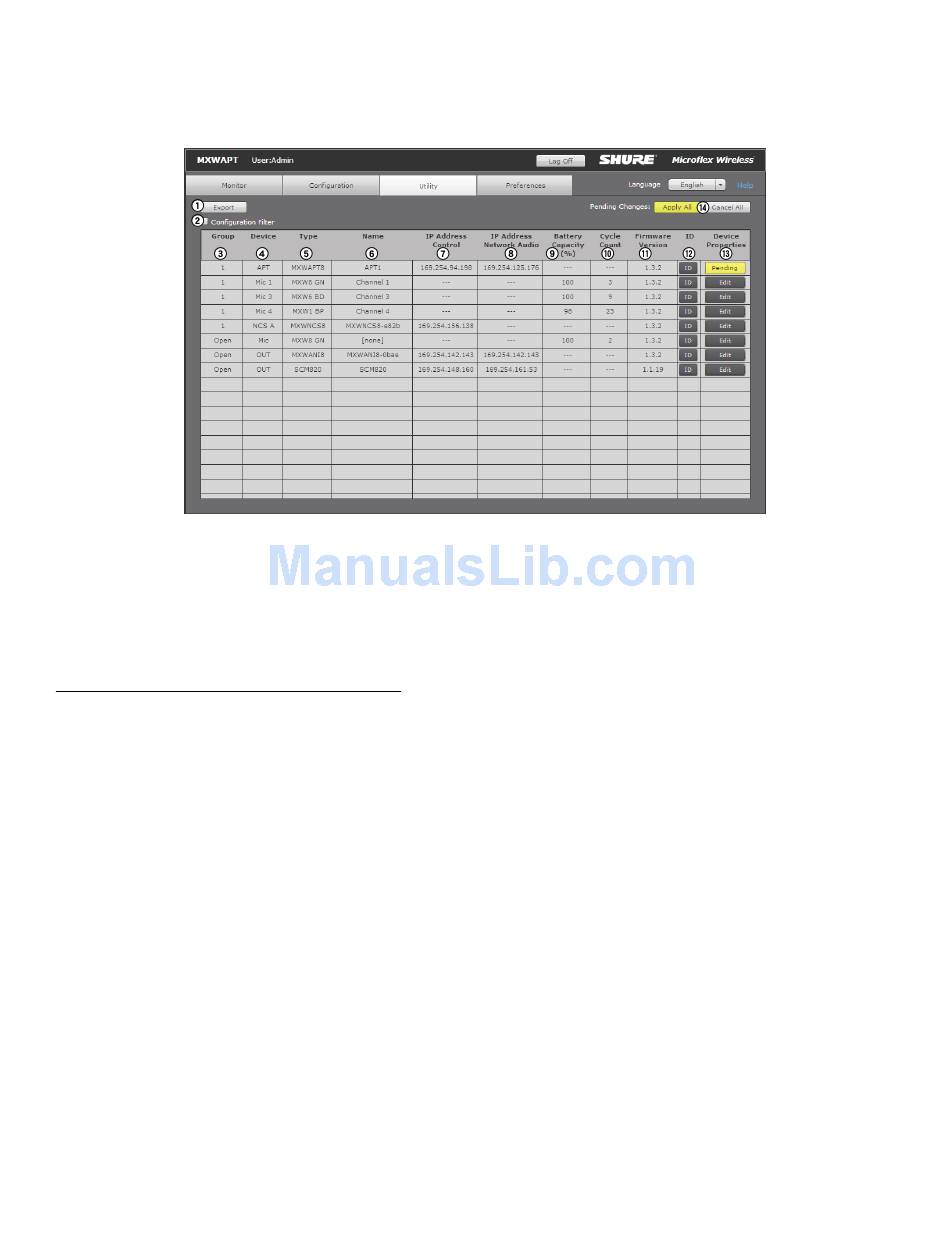

Utility Tab
① Export Button
Exports MXW device data to a text file (.csv).
② Configuration Filter
When checked, the table displays data for only the devices
that belong to the Configuration or are open for association.
Un-check the filter to view all MXW devices on the subnet.
Note: The filter is checked when the configuration is locked from the
Configuration tab.
③ Group
Indicates the device's status in a Group:
• 1 - 10: Device is associated to that Group in the Configuration
• Open: Device is not associated to any Group
• None: Microphone is Linked to an Access Point that has
been removed from a Group (deselected from the Group row
in the Configuration tab)
• Standalone: Audio Network Interface is set to Standalone
mode, which restricts association to a Group
• Unknown: Microphone is Linked to an APT that is powered
off or connected to a different network
• Other: Device is associated to a Group in a different
Configuration
④ Device
The device type or microphone channel.
• APT: Access point transceiver
• NCS: Network charging station, up to two per group (A or B)
• Mic 1 - 8: Microphone for channels 1-8, up to two
microphones per channel (primary or secondary)
• Out: Device is not associated or linked to a group
⑤ Type
The device model number.
79
⑥ Name
Displays device name as defined in the Configuration tab or
channel name as defined in the Monitor tab.
⑦ IP Address Control
Displays the IP Address of the control network interface
(Shure control data).
⑧ IP Address Network Audio
Displays the IP Address of the Network Audio network
interface (Dante digital audio data).
⑨ Battery Capacity
The microphone battery's percentage of charge capacity as
compared to a new battery.
⑩ Cycle Count
Number of charge cycles logged by the battery.
⑪ Firmware Version
Displays the device's firmware version.
⑫ ID Button
Sends a signal to the device to flash its LEDs for easy
identification.
⑬ Device Properties
Opens a window for editing the properties of an individual
device. The button displays yellow when the properties
have been edited for that device. The changes can be
applied or cancelled from the Pending Changes Buttons on
the Utility tab.
