Installation

Connect the Components

MXW components are connected using Ethernet cables and a switch. For a small system with a single access point, the
MXW Audio Network Interface functions as the switch. For systems with more than one access point, an additional gigabit
switch is required for connecting all the components together.
Requirements:
• Use shielded Cat 5e (or higher) Ethernet cables. Limit cable runs to ≤100 m between devices.
• Use Gigabit networking equipment between network audio devices (required for systems with >1 access point).
• Ensure MXW components are on the same firmware version.
• Ensure MXW components and the PC are on the same network and set to the same subnet.

Single Group System (1 Access Point)

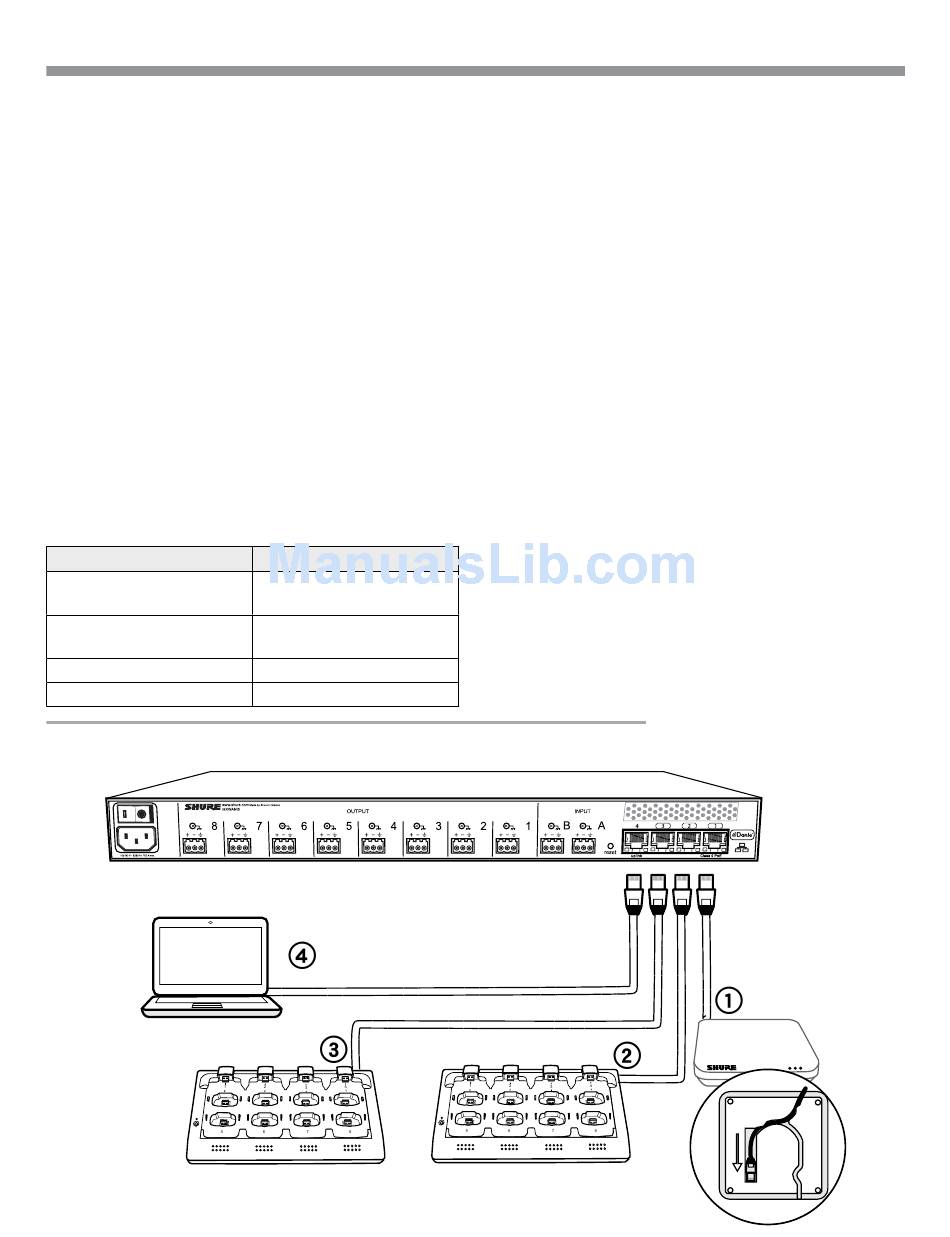

When the system is limited to a single group (up to eight channels), use the MXW Audio Network Interface four-port switch
for connecting MXW components. Connect the computer, access point and up to two chargers to the MXW interface
according to the table and diagram:
Audio Network Interface Port
① Port 1 (PoE)
② Port 2
③ Port 3
④ Port 4*
*When Port 4 is set to Uplink mode, Shure Discovery Application support is restricted.
43
To Component
Access Point Transceiver
(APT)
Networked Charging
Station (NCS)
(Optional) Additional NCS
Computer
