Installation

Securing to a Wall or Ceiling

Required Equipment
• Two #8 screws at appropriate length*
*Screw Length = Surface thickness + thread
engagement (4.75 mm max.) + thickness of flat
washer + the thickness of the split lock washer
Installation Steps

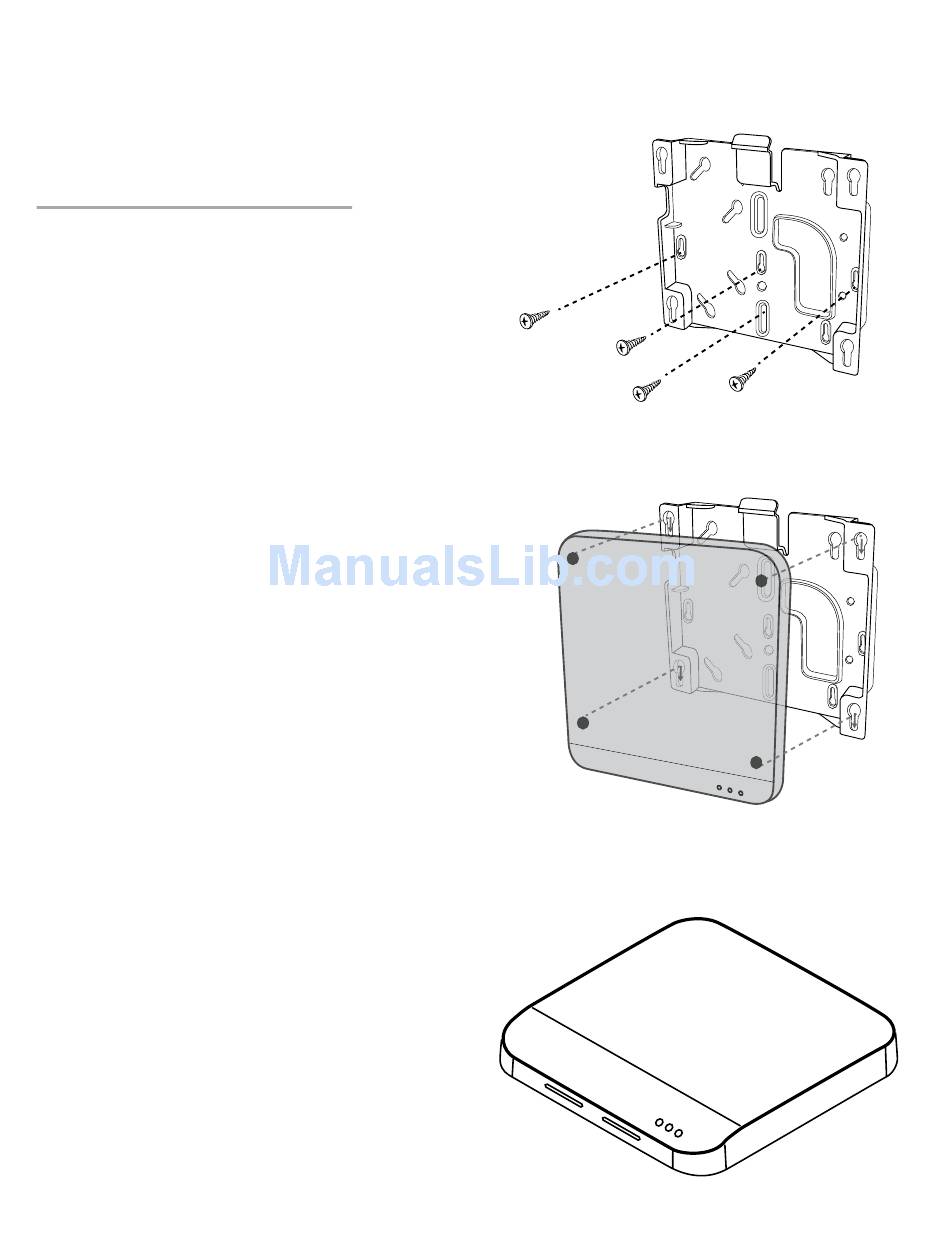

1. Use the mounting plate as a template and mark the
location for the holes.
2. Drill the holes into the mounting surface.
3. Secure mounting plate to the surface (CAUTION: Do
not over-tighten screws, as this could cause permanent
damage to the charging station).
4. Connect of the Ethernet cable to the MXWAPT using the
cable route path.
5. Position the MXWAPT over the keyway slots of the
mounting plate and slide it down into the locked position.

External Cover for Painting

The Access Point is supplied with an external cover that
can be painted to match the decor of the installation. After it
has been painted and dried, it snaps onto the front plate of
the device.
