Installation
36.6 mm
[1.441"]
126.6 mm
[4.984"]
36.6 mm
[1.441"]
126.6 mm
[4.984"]
51.4 mm
[2.025"]
34
>40 mm [1.57"]
51.4 mm
[2.025"]
141.4 mm
[5.568"]
>40 mm [1.57"]
NCS4
141.4 mm
[5.568"]

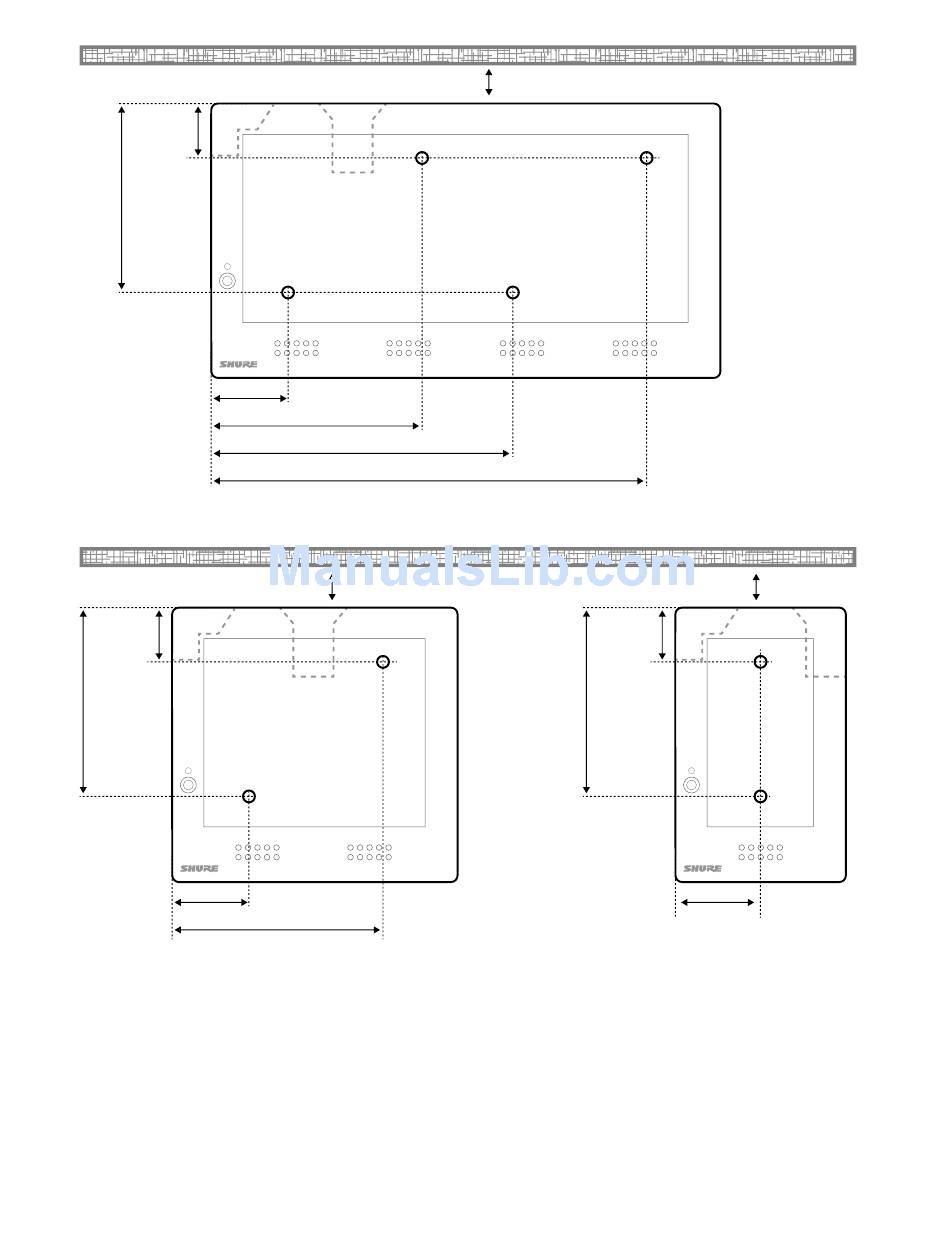

NCS Mounting Template
Leave space behind the charger for cabling
NCS8
201.4 mm
[7.931"]
291.4 mm
[11.474"]
21.8 mm
[0.858"]
120.0 mm
[4.726"]
>40 mm [1.57"]
NCS2
51.1 mm
[2.013"]
