Securing the Charging Station

This kit provides washers and screws for securing a charging tray to a table or other surface. Use two kits for the NCS8.
Please refer to the NCS mounting template for screw hole placement.
Important: The top of the screw must extend exactly ⁹/₆₄ (0.149) inches (3.78 mm) above the surface (about 4½
threads).
• Use the screws that best fit the thickness of the table.
• Use a lock washer and flat washer for each screw.
• If necessary, counterbore the screw head or add additional flat washers.

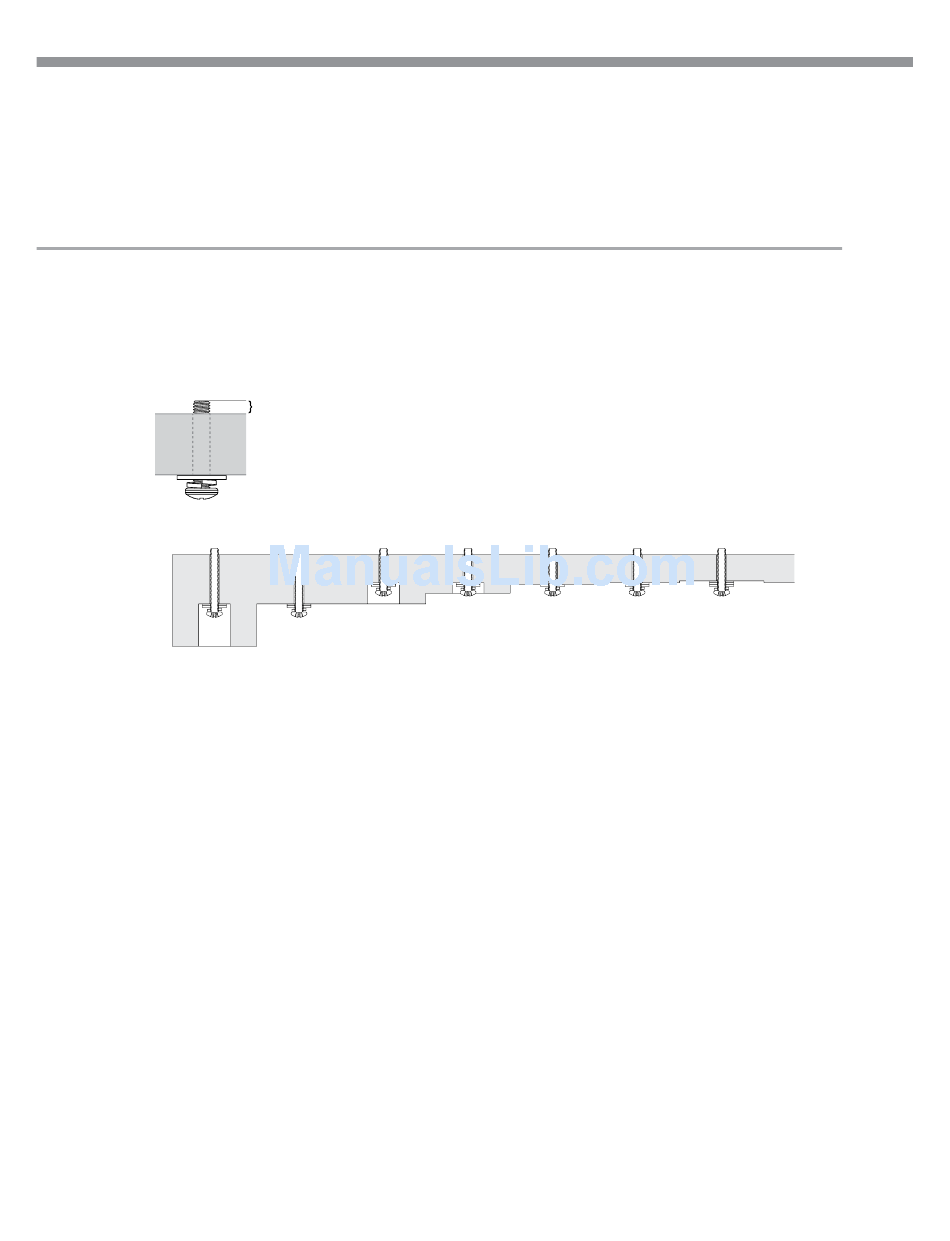

Use counterbore and washers as necessary depending on thickness of table
33
0.149" (3.78 mm)
Required Thread Exposure
