⑫ High-Pass Filter
Engages a 12 dB-per-octave filter below 150 Hz for
attenuating undesired low frequencies, sometimes caused
by table vibrations or air-conditioning rumble.
⑬ Low-Pass Filter
Engages a 6 dB-per-octave filter above 12 kHz for
attenuating undesired high frequencies, sometimes caused
by sibilant vocals or paper rustling.
⑭ Microphone Type
Displays the microphone type.
⑮ Link/Unlink Buttons
For setting up a single audio channel. Links the microphone
to the primary or secondary link slot (as selected at the top
of the channel strip).
Configuration Tab

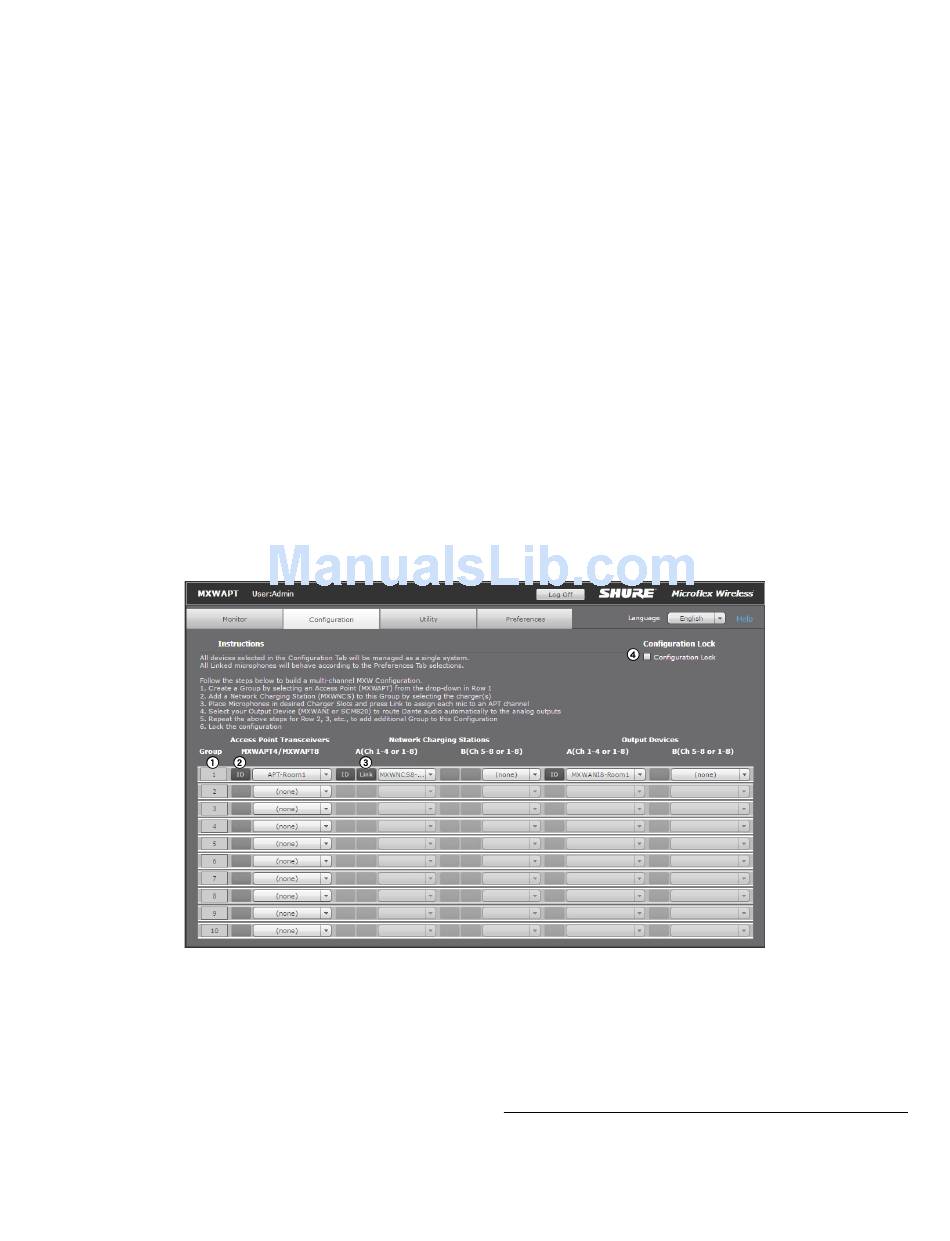

① Group Row
Each row represents a Group in the Configuration. Select
an APT and associate chargers and audio output devices to
form each Group.
② ID Button
Commands the selected device's LEDs to flash for easy
identification.
③ Link Button
Links all microphones in the charger to channels in the
associated Group.
77
• Link: Links the microphone from the corresponding charging
slot.
• Unlink: Unlinks the microphone from the audio channel.
⑯ Bodypack Mic Options
There are two input sources available on the MXW1
bodypack: the internal, omnidirectional microphone or the
external, TQG input for lavalier or headset microphones.
Select the input source preference:
• Auto: The internal mic is used until the MXW1 detects a
connection at the TQG input. The microphone automatically
selects the external source whenever available.
• Internal: Audio source is always from the internal microphone.
• External: Audio source is always from a connected
microphone. (Internal mic is off.)
⑰ Return Channels
Monitor the signal level and mute/unmute the audio of the
return channel.
④ Configuration Lock
Increases the number of MXW components that can
operate on the same network. It is best practice to lock the
configuration after setup to greatly reduce network traffic
from MXW equipment. When systems exceed 15 APTs
on the same network, configuration locking is required for
stable performance.
Note: When selected, Groups are not editable on the Configuration page and the
Utility page only displays information for devices belonging to this Configuration.
