Link Microphones to Group Channels

Use the Networked Charging Station (NCS) to Link
microphones to Access Point channels. Slots in the charger
are mapped to the APT according to the Group setup from
the Configuration tab. Once the Link procedure is complete,
audio will route to the corresponding channel in the Group.
Linking will map any microphone placed in the charging
station to the APT channels. This replaces any prior
microphone Link for that channel. If a slot is empty during
the Link procedure, there will be no impact on that channel.
1. Arrange microphones in the charger.
Microphones are Linked to access point channels according
to the arrangement in the charger.
Note: 2-channel chargers do not support gooseneck microphones.
Connecting the Microphone to the Charger Slot
2. Link the microphones to channels.
Use the control software or the charging station to Link the
microphones to APT channels. If desired, this feature can
be disabled on the charging station so that Linking can only
be performed from the control software:
54
For gooseneck mics
For bodypacks, handhelds and boundary
mics.
• Control Software: From the Configuration page, press the
Link button for each charger in the Group.
• Charging Station: Press and hold the Link button for 6
seconds. The LEDs flash during the process and turn solid
green once the Link is successful.
3. Remove Mics and Test the Audio
Test the audio for each microphone and adjust mic gain if
necessary from the Monitor tab of the control software. The
gain should be set at a level where the audio is registering
(green/yellow) on the signal indicator but not clipping (red).

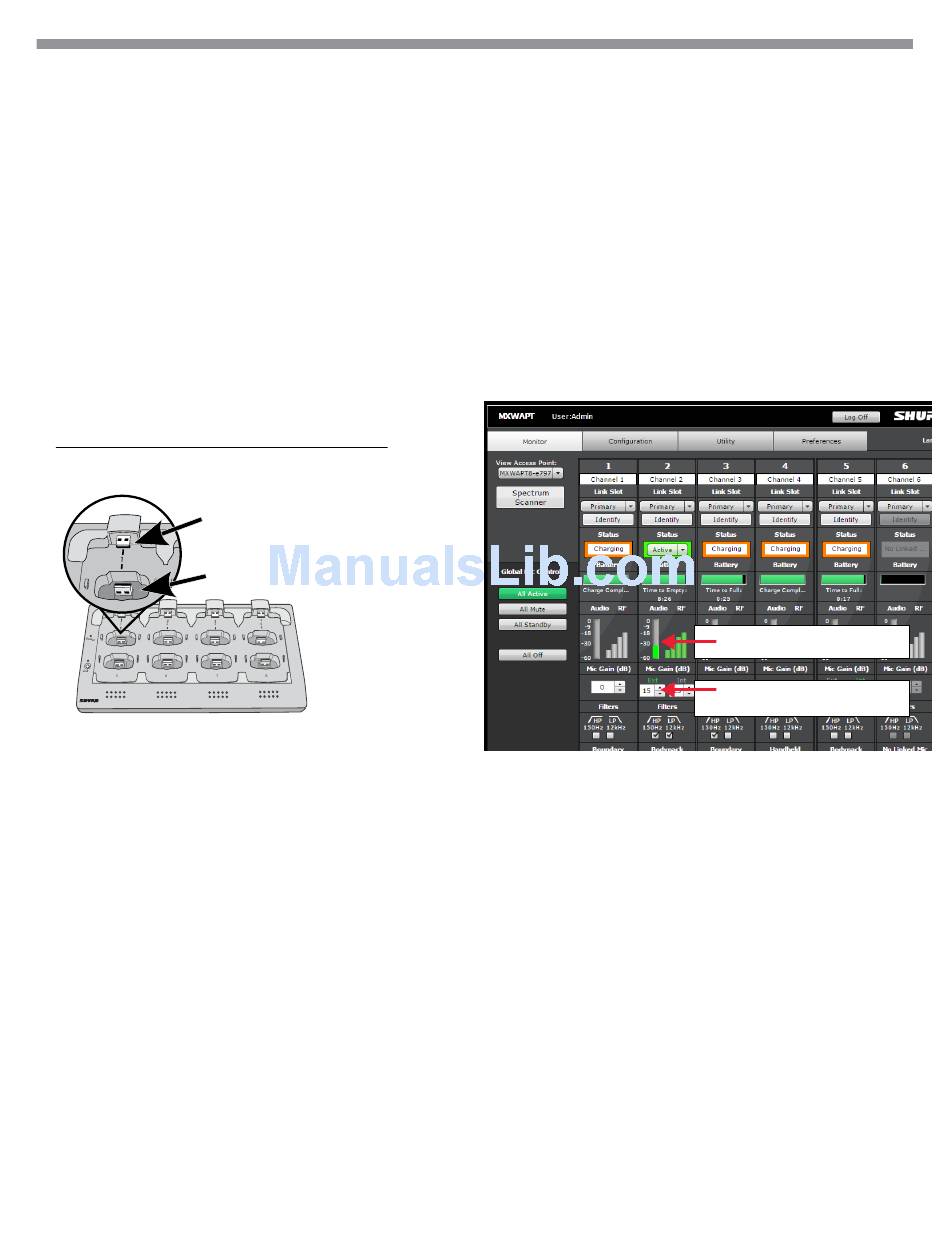

Monitor Tab
Signal indicator
Gain adjustment
