Microphone Transmitters - Shure Microflex Wireless User Manual

Hardware Description

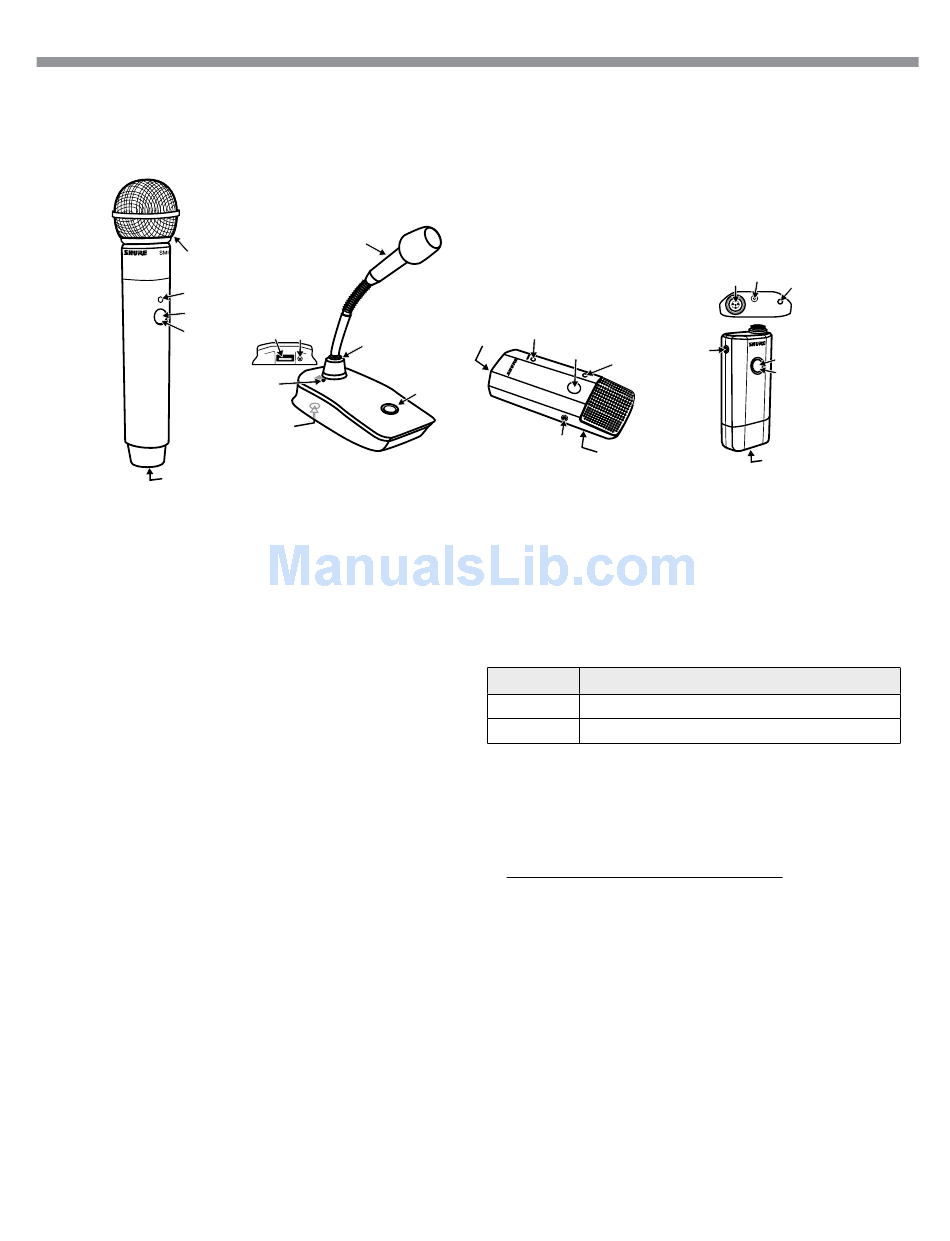

Microphone Transmitters

⑦
③
①
②
⑥
MXW2
Description
① Power Button
MXW6, MXW8: Press and hold the dedicated power button
for three seconds to turn the transmitter on or off.
MXW1, MXW2: Press and hold the Mute/Active button for
five seconds to turn the transmitter on or off.
② Mute/Active Button
Changes the audio status from Active to Mute, or Mute to
Active. The button behavior for each transmitter type can be
set independently from the Preferences tab. The following
describes the function of each setting:
• Toggle: Press and release the button to change the status to
Active or Mute.
• Push-to-talk: Hold button to pass audio.
• Push-to-mute: Hold button to mute the audio.
• Disabled: The button does not affect the audio.
③ Status LED
Indicates the transmitter's status. The color indicators for
Mute and Active can be customized from the Preferences
tab. See the Status LED table for the default LED behavior
for MXW transmitters except the gooseneck light-ring
models (MX405R/410R/415R).
20
⑧
⑥ ⑤
③
④
②
①
MXW8
④
⑥
②
③
⑤
①
MXW6
④ Low Battery LED (Gooseneck and Boundary only)
Color Status
Off <5% battery runtime remains
Solid Red >5% battery runtime remains
⑤ Earphone Jack
1/8" (3.5 mm) jack for monitoring a return channel signal,
such as translated audio. This audio is automatically routed
from the input(s) of the Audio Network Interface (Input A to
channels 1 - 4; Input B to channels 5 - 8).
Note: Not featured on the MXW2 handheld transmitter.
⑥ Charge Connector (USB 3.0 Type A)
Connects to the NCS charger slot or to the USB Charger.
⑦ Handheld Cartridge
MXW2 transmitter is compatible with the following cartridge
types: SM58, Beta 58, SM86, VP68.
⑧ Gooseneck Microphone
The gooseneck base is compatible with 5, 10, and 15"
Microflex gooseneck microphones.
⑩
⑨
③
⑤
①
②
⑥
MXW1
