Hardware Description

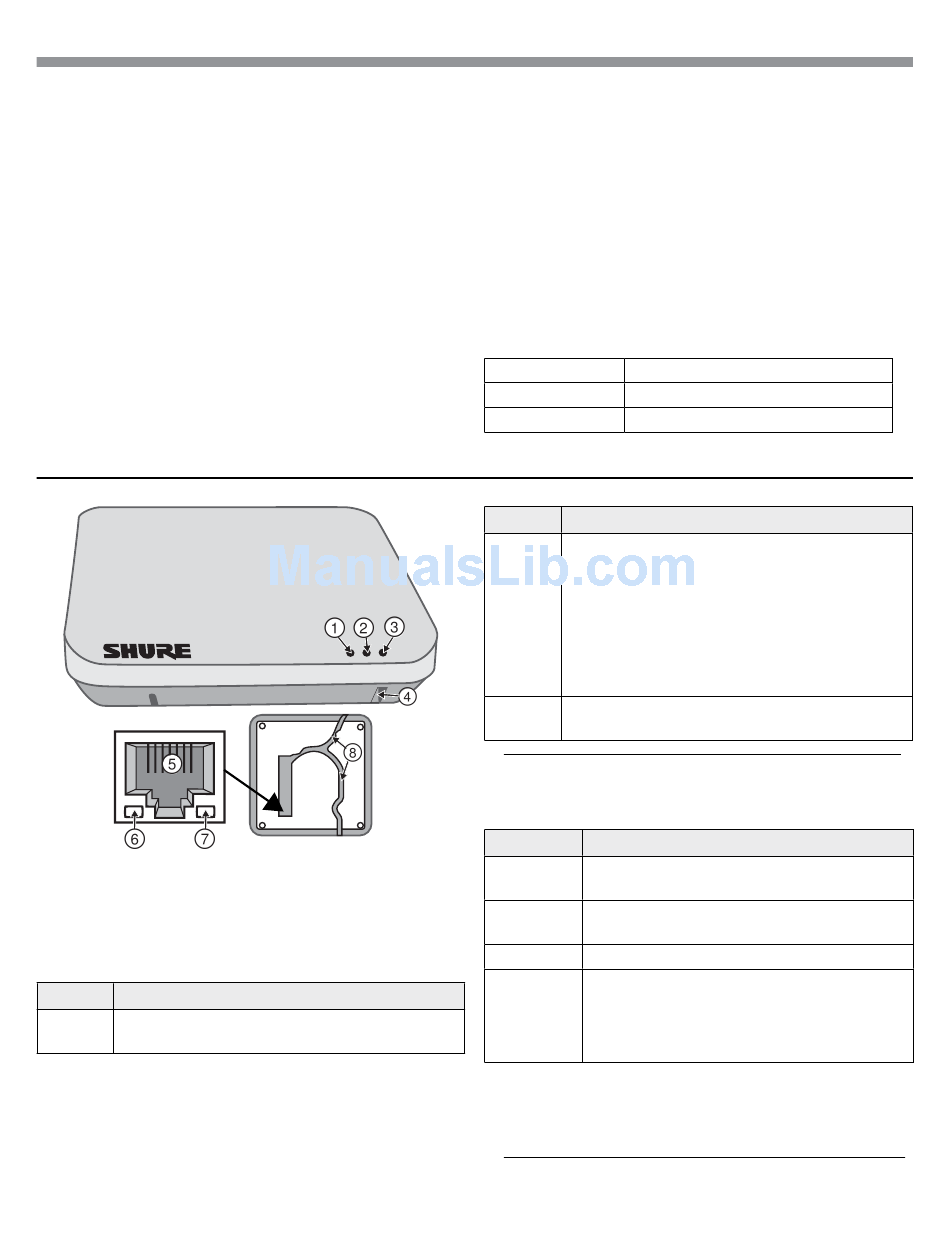

Access Point Transceiver (APT)

The access point transceiver is the hub of the audio signal
flow and manages the RF stability of each microphone in
the group. The APT performs the following functions:
• Receives and decrypts wireless audio signals from
microphones in the group
• Delivers the audio signal to the digital audio network and
audio network interface (ANI)
• Hosts an embedded web server that provides access to
the control software used to manage the MXW system
① Power LED
Illuminates green to indicate the presence of Power over
Ethernet (PoE).
② Network Audio LED
Color Status
All routed receive channels are OK (receiving
Green
digital audio as expected).
13
• Sends and receives control information (such as gain
adjustment and link settings) between the components,
MXW control software and 3rd party controllers.
• Transmits an encrypted audio signal to the microphone's
headphone output for listening to translated audio or
other external sources.
Model Variations
MXWAPT8 Eight-channel transceiver
MXWAPT4 Four-channel transceiver
MXWAPT2 Two-channel transceiver
Color Status
• One or more connected receive channels
experiencing a subscription error or is unresolved
(transmitting device is off, disconnected, renamed
or has incorrect network setting).
Flashing
• Receiving an Identification signal from the control
Green
software (simultaneous flash with Link Status LED).
• The device is performing a spectrum scan
(alternating flash with Link Status LED).
• Clock synchronization problem.
No receive channels connected (routing has
Off
not been established).
Note: the network audio status can be monitored in detail from Dante Controller
software.
③ Microphone Link Status LED
Color Status
≥1 microphone is linked and powered on in
Green
the Active, Mute or Standby state.
≥1 microphone is linked and is Off or in a
Off
non-networked charger.
Red No microphones have been linked.
• Receiving an Identification signal from the
control software (simultaneous flash with
Flashing
Network Audio LED).
Red
• The device is performing a spectrum scan
(alternating flash with Network Audio LED).
④ Reset Button
Press and hold the reset button for 10 seconds to reset the
MXW system to factory default settings.
Note: The reset deletes group association and microphone links, and will reboot
the device in DHCP mode.
