Hardware Description
⑤ Ethernet Port
Connect a shielded Cat5e (or higher) cable to a PoE source
and the network.
⑥ Ethernet Status LED (Green)
• Off = no network link
• On = network link established
• Flashing = network link active

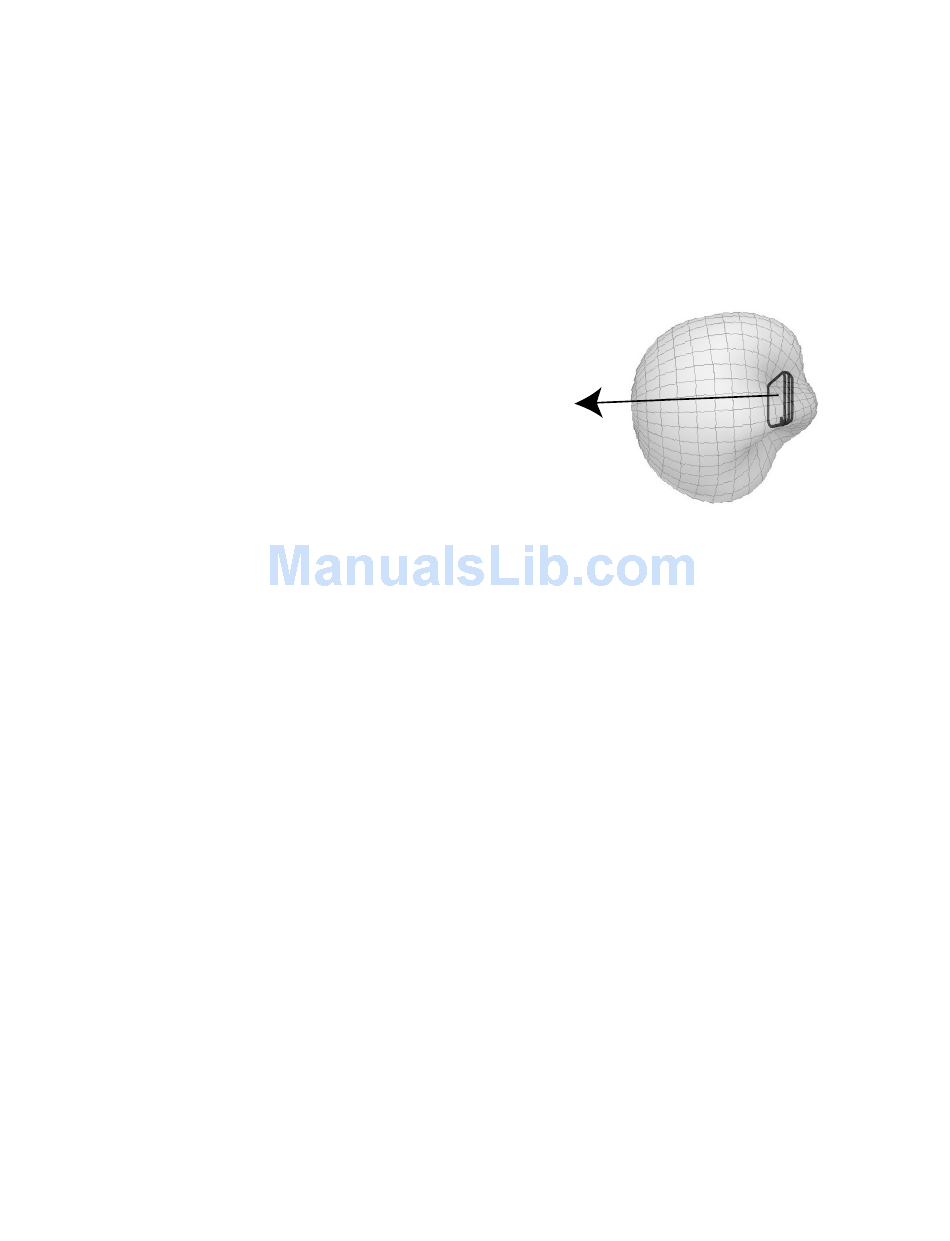

Directional Antennas
The access point contains multiple directional antennas
to provide steady, reliable wireless communication with
the microphones. It sends and receives the RF signal in a
cardioid pattern with the greatest sensitivity toward the face
of the device. Always aim this side toward the microphone
coverage area.
14
⑦ Ethernet Link Speed LED (Amber)
• Off = 10/100 Mbps
• On = 1 Gbps (required for proper MXW functionality)
⑧ Cable Routing Path
Provides a path for the Ethernet cable to enable a flush-
mount to the ceiling or wall.
Cardioid RF Pattern
