System Setup

One Active Mic per Channel

Only one microphone will operate on the channel at a time, blocking the second microphone from interfering with the
RF and audio performance. The backup microphone briefly flashes the LED to indicate the channel is occupied, and
automatically turns off to conserve the battery. To use the second microphone, simply turn off the first microphone.

Procedure

Link a single microphone:
1. Place the secondary microphone into the same charging slot that was used for the primary microphone.
2. Open the MXW control software and go to the Monitor tab.
3. Select Secondary in that channel's link slot.
4. Select the Link button on the channel strip to link that microphone. The charger LEDs will flash when the procedure is
complete.
Link multiple microphones:
1. Place the secondary microphones into the same charging slots that were used for the primary microphones.
2. Open the MXW control software and go to the Configuration tab.
3. Find the desired charger in the group row. Use the ID button to make sure the right charger is selected.
4. Select the Link button in the group row.
5. In the popup window, select All Secondary for the link slot.
56

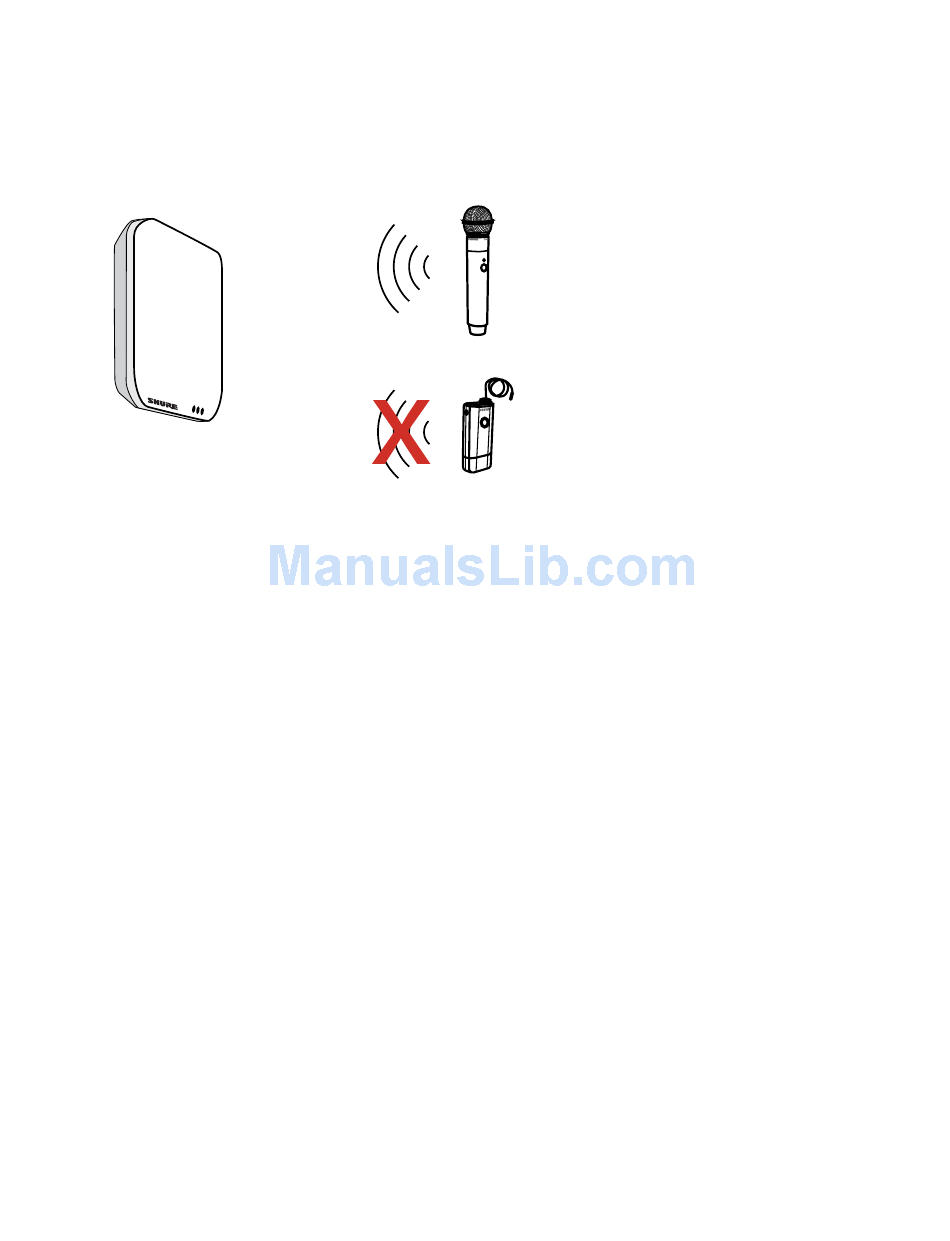

Two Microphones Ready for the Audio Channel
The system allows one live microphone per channel.
One microphone has connection to
the audio channel
The second microphone is blocked
until the first microphone is turned
off
