Installation

Mount the Access Point Transceiver

The directional antennas of the APT send and receive the RF signal in a cardioid pattern with the greatest sensitivity
toward the face of the device. Always aim this side toward the microphone coverage area.

Select a Location

The access point is typically mounted to a ceiling or wall
near the microphone coverage area. For best results,
perform a Spectrum Scan at potential locations to find the
optimal placement (see Wireless Management section for
more details).
Use the following best-practices when selecting a location
for the device:
• Direct the face of the access point toward the intended
coverage area.
• Position the access point so there is nothing obstructing a
line of sight to the microphones.
• Keep device away from large metal objects.
• Keep at least eight feet between access points.
• Mount with its reset button accessible, as it may be useful
for troubleshooting.
39
Important: Always perform a "walk around" test to
verify coverage before using a wireless system during
a speech or performance. Experiment with antenna
placement to find the optimum location. If necessary,
mark "trouble spots" and ask presenters or performers
to avoid those areas.

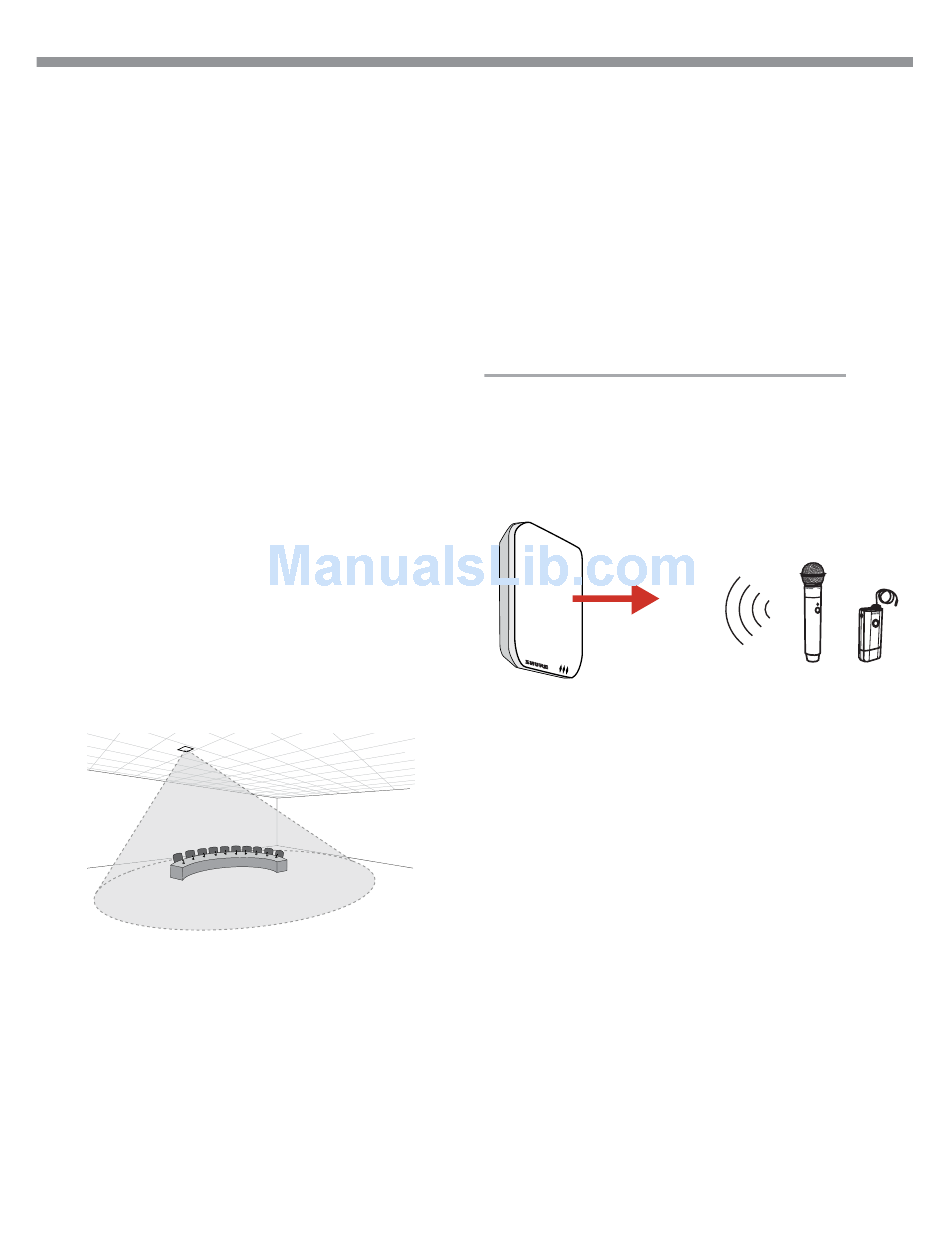

Mount with this side facing the microphones
Cardioid RF Pattern
