Hardware Description
⑥ Locking DC Power Supply
Secures the PS45 power supply to the input jack of the
station.
⑦ Power Switch
Powers the unit on or off.
⑧ Ethernet Port
Connects to the MXW System network through an MXW
Audio Network Interface or a switch using an Ethernet
cable.
Connecting Microphones
Place a microphone in the charger by connecting it to one
of the channel slots. The channels in the top row have two
USB ports to accommodate different types of microphones.
Do not attempt to connect to both USB ports at the same
time.
Note: 2-channel chargers do not support gooseneck
microphones.
• Handheld, boundary and bodypack: use the main vertical
slots in the recessed bays.
• Gooseneck base: uses the top row's horizontal
connectors.
19
⑨ Ethernet Status LED (Green)
• Off = no network link.
• On = network link established.
• Flashing = network link active.
⑩ Ethernet Link Speed LED (Amber)
• Off = 10 Mbps
• On = 100 Mbps

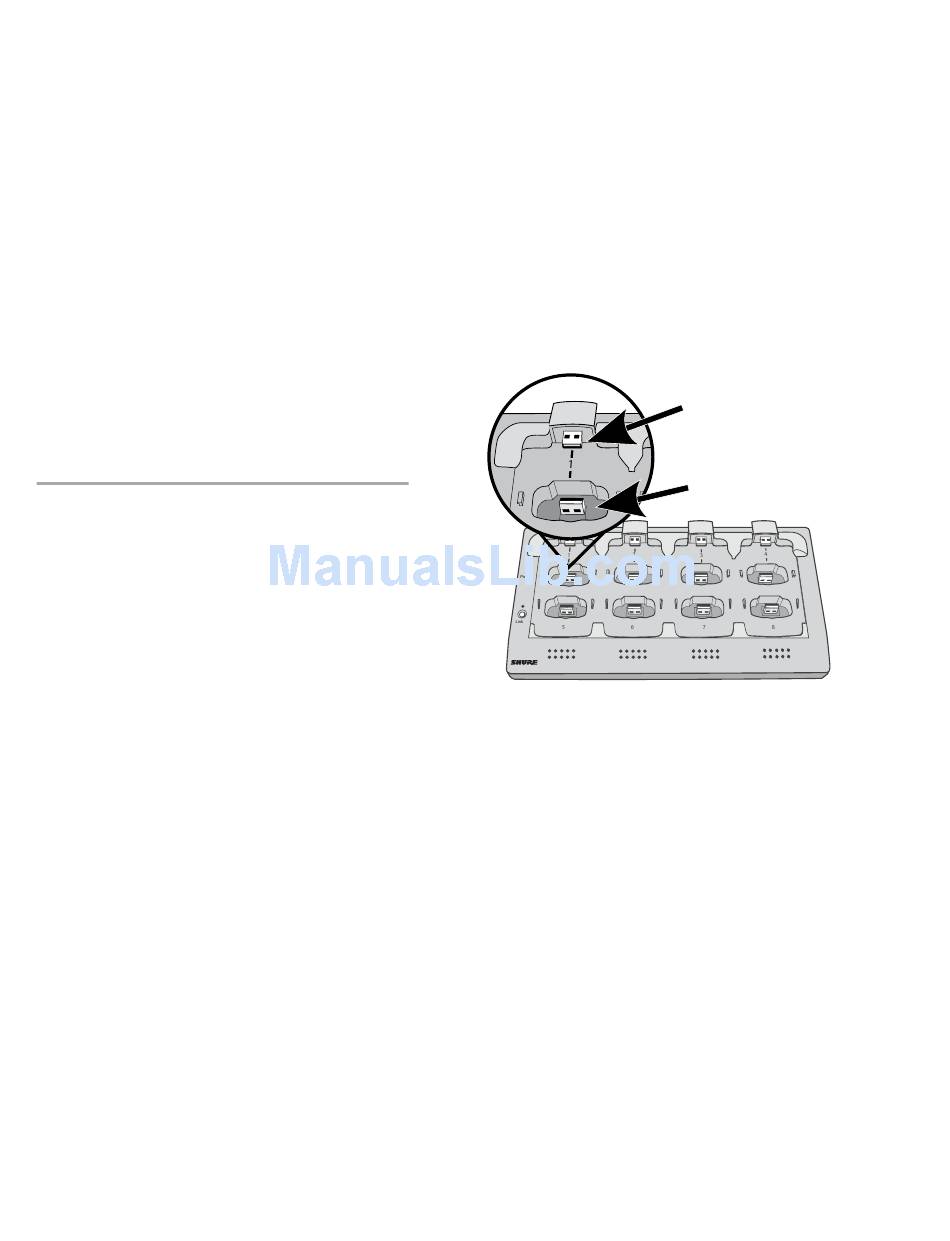

Different Connectors for the Same Channel
For gooseneck base.
For bodypacks, handhelds and boundary
mics.
