Setting Mix and Listening Levels using the PCS Configuration Software

After setting up the MediaPort 200 inputs for optimal levels and the outputs according to the
signal level needed at the receiving devices (such as amplifiers, DSP processor, and video
codecs), you can control the MediaPort 200 mix and listening levels from the
the PCS configuration software.

The PCS Software Mix Screen

The
each fader is a text field with up and down arrow buttons and a mute button that are
associated with it. You can change the gain settings in each panel by either dragging the
slider button up and down, clicking and holding the incremental spin (arrow) buttons beside
the text field, or entering a value in the text field.
To display the
the
A
B

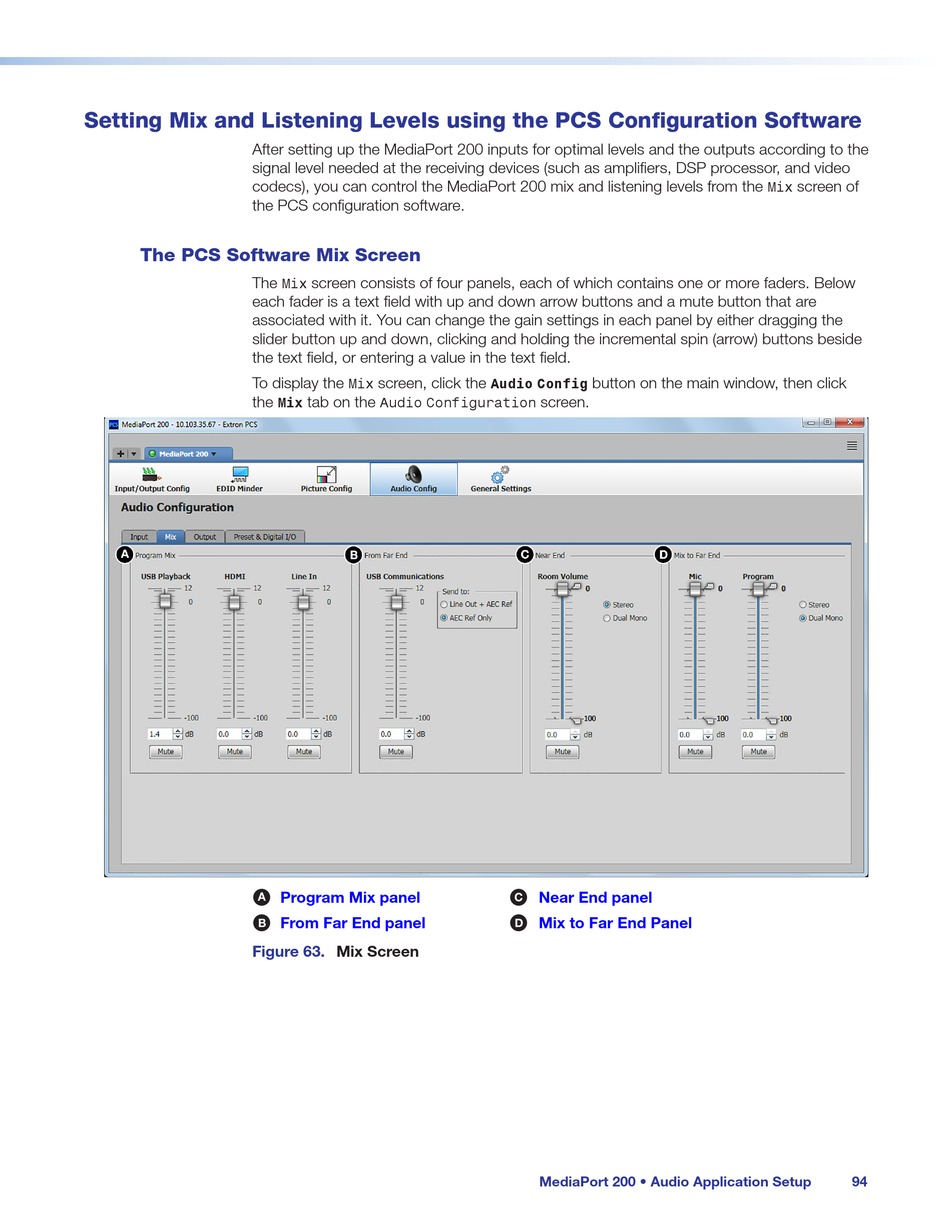

Figure 63.
screen consists of four panels, each of which contains one or more faders. Below
Mix
screen, click the
Mix
tab on the
Mix Audio Configuration
Program Mix panel
From Far End panel
Mix Screen
button on the main window, then click
Audio Config
screen.
Near End panel
C
Mix to Far End Panel
D
MediaPort 200 • Audio Application Setup
screen of
Mix
94
