FIGURE 11-6
7. Remove the card extractor from the SBus card:
a. Bend one leg of the extractor slightly to the outside until the hook clears the
hole in the SBus card.
See
b. Remove the other side of the extractor, which should come out easily without
bending.
8. Place the faulty SBus card on an antistatic surface.
Do not confuse it with the replacement card.
11.1.2

Replacing an SBus Card

1. If required for your card, set the jumpers or switches on the replacement card.
See the manual for your SBus product.
2. Push back the two card retainers on the SBus connector (if necessary).
See
FIGURE 11-7
3. Holding the card at an angle to the rear panel, insert the tabs on the card
backplate into the corresponding slots on the rear panel.
See
FIGURE 11-7
11-6 SPARCstation 5 Model 110 Service Manual • November 1996
Card
extractors

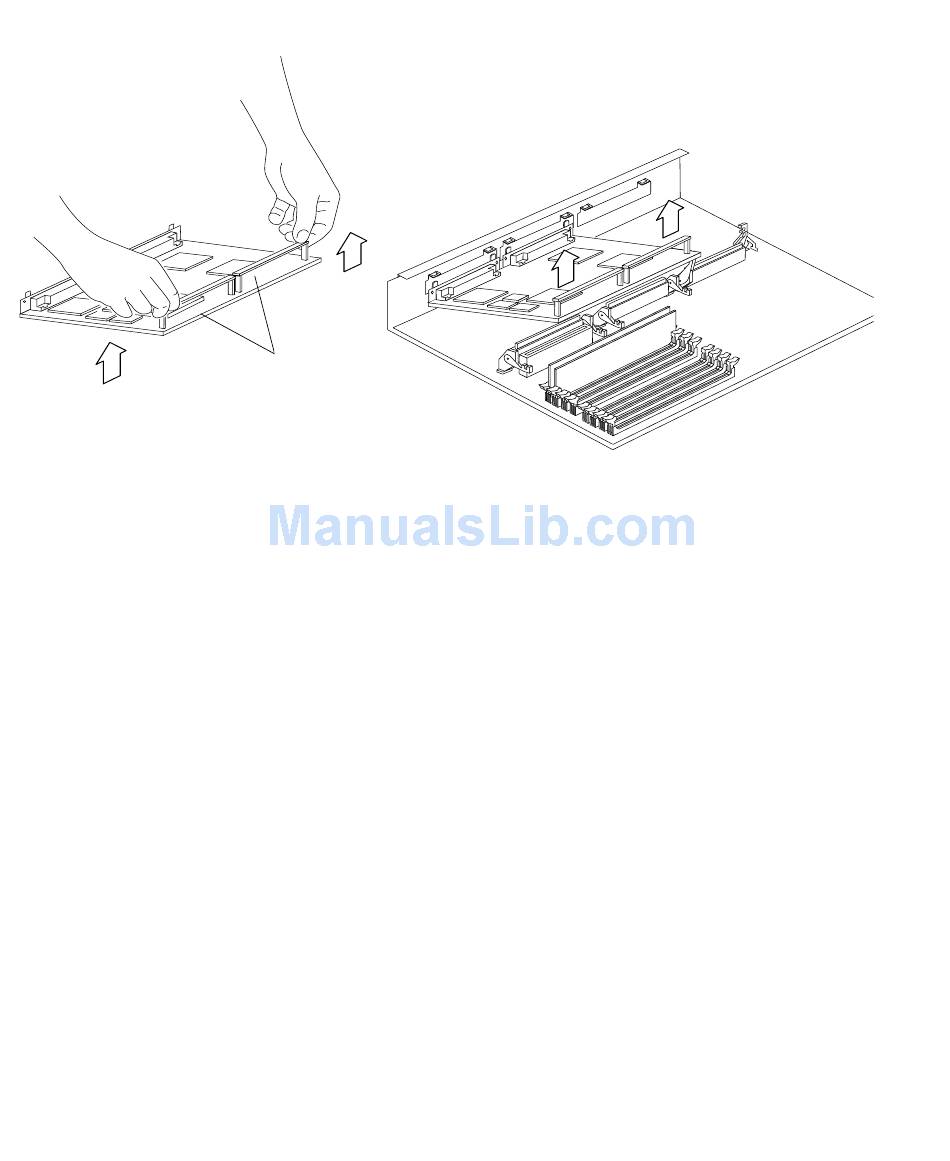

Removing a Double-Width SBus Card
.
FIGURE 11-3
.
.
