Subassemblies, Boards, And Components; Interior View; Figure 1-1 Basic Sparcstation 5 System - Sun Microsystems SPARCstation 5 Model 110 Service Manual

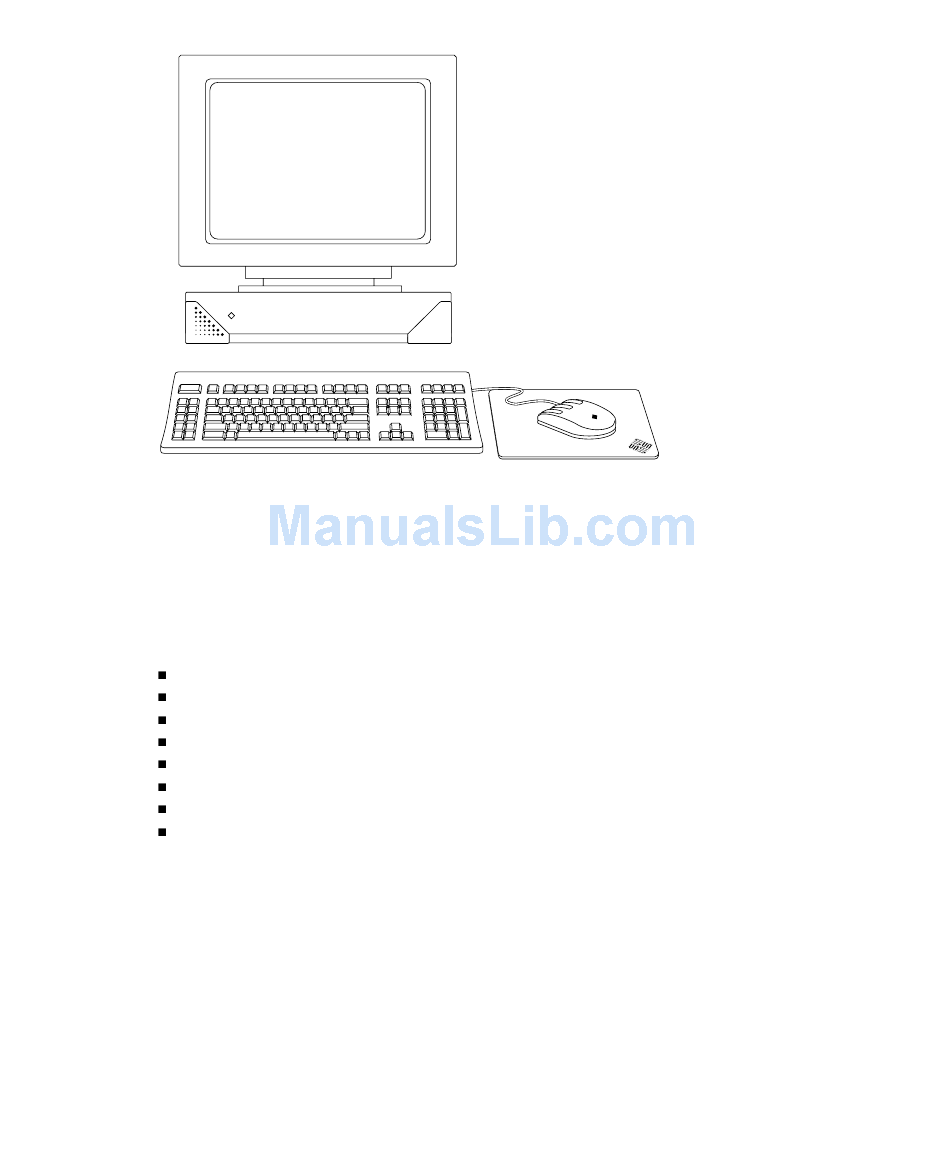

FIGURE 1-1
1.1.1

Subassemblies, Boards, and Components

The SPARCstation 5 system unit accommodates the following subassemblies, boards,
and components:
System board
DSIMMs (up to 8)
S24 graphics card
SBus cards (up to 3)
Hard disk drives, 3.5-inch, 88.0-mm, single-connector (up to 2)
CD-ROM drive
Diskette drive (3.5-inch)
Power supply (150-watt with 2 fans)
1.1.2

Interior View

FIGURE 1-2
for the SPARCstation 5 system.
1-2 SPARCstation 5 Model 110 Service Manual • November 1996
Basic SPARCstation 5 System
shows an interior view of the major subassemblies and the system board
