Removing An Sbus Card; Figure 11-1 Sbus Slot Locations - Sun Microsystems SPARCstation 5 Model 110 Service Manual

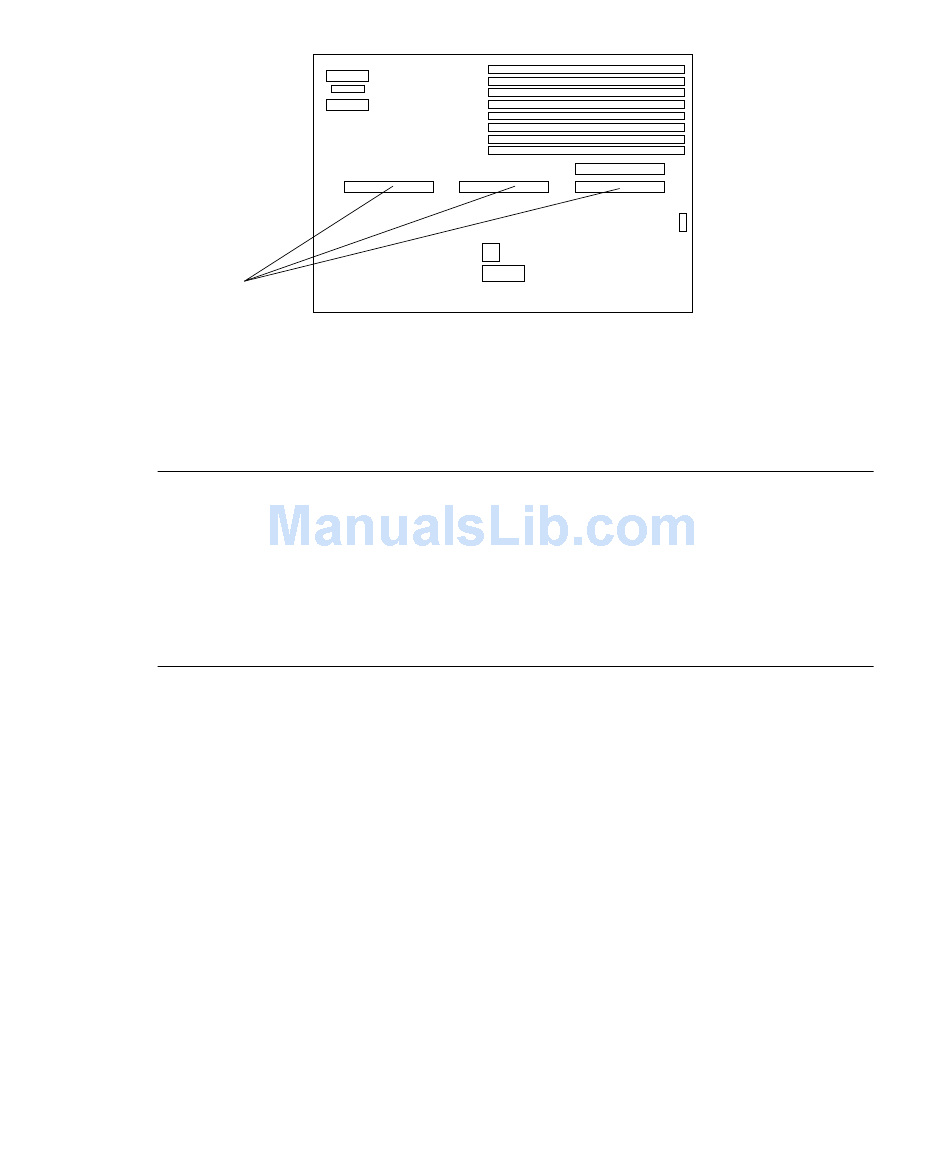

SBus slots
FIGURE 11-1
Note – An SBus card extractor is included with all SBus card customer-replaceable
units (CRUs). You must remove the extractor from the replacement card and install it
on the defective card. Then use the SBus card extractor to remove the defective card
from the system unit. If you need to remove an SBus card temporarily, and you do
not have a replacement card, try to find an extractor from some other source. If an
extractor is not available, place both thumbs beneath the corners of the card where it
connects to the system board. Carefully push upward with your thumbs until the
card disconnects from the system board.
11.1.1

Removing an SBus Card

1. Shut down and power off the system.
See Section 6.1 "Powering Off the System."
2. Remove the cover and attach a wrist strap.
See Chapter 7.
3. Push the card retainers back from the edge of the SBus card.
See
FIGURE 11-2
11-2 SPARCstation 5 Model 110 Service Manual • November 1996
SBus Slot Locations
.
