1. Press the Standby side of the system power switch.
2. Loosen the captive Phillips screw in the upper-right corner of the rear panel (see
FIGURE 7-1
3. Loosen and remove the Phillips screw that secures the lock block to the cover.
Remove the lock block and put it aside (see
FIGURE 7-1
4. Lift the cover free of the chassis as shown in
7-2 SPARCstation 5 Model 110 Service Manual • November 1996
).

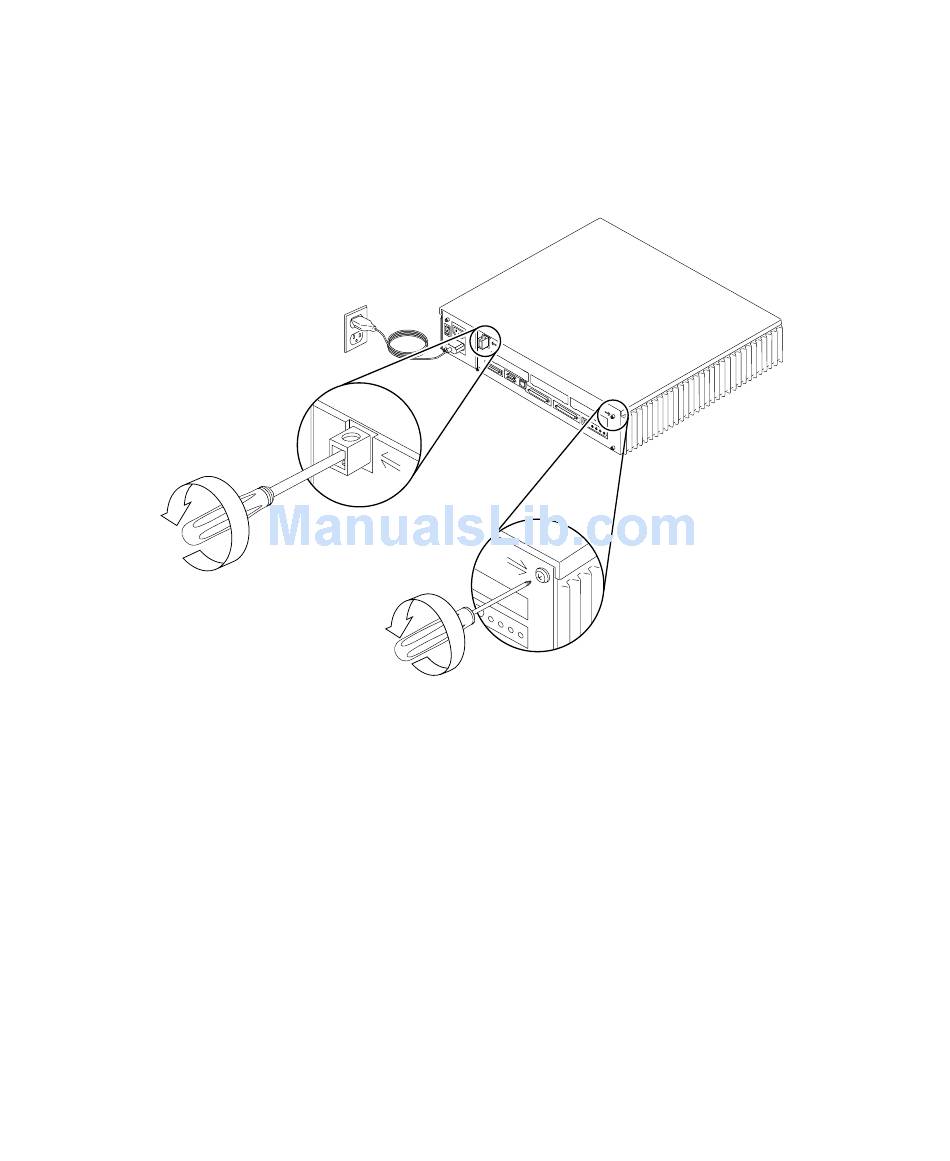

Removing the Rear Panel Cover Screws
).
FIGURE 7-1
.
FIGURE 7-2
