Note – If you are adding the CD-ROM drive, ensure that no external SCSI devices
are using the SCSI address 6.
ID select
4 2 1

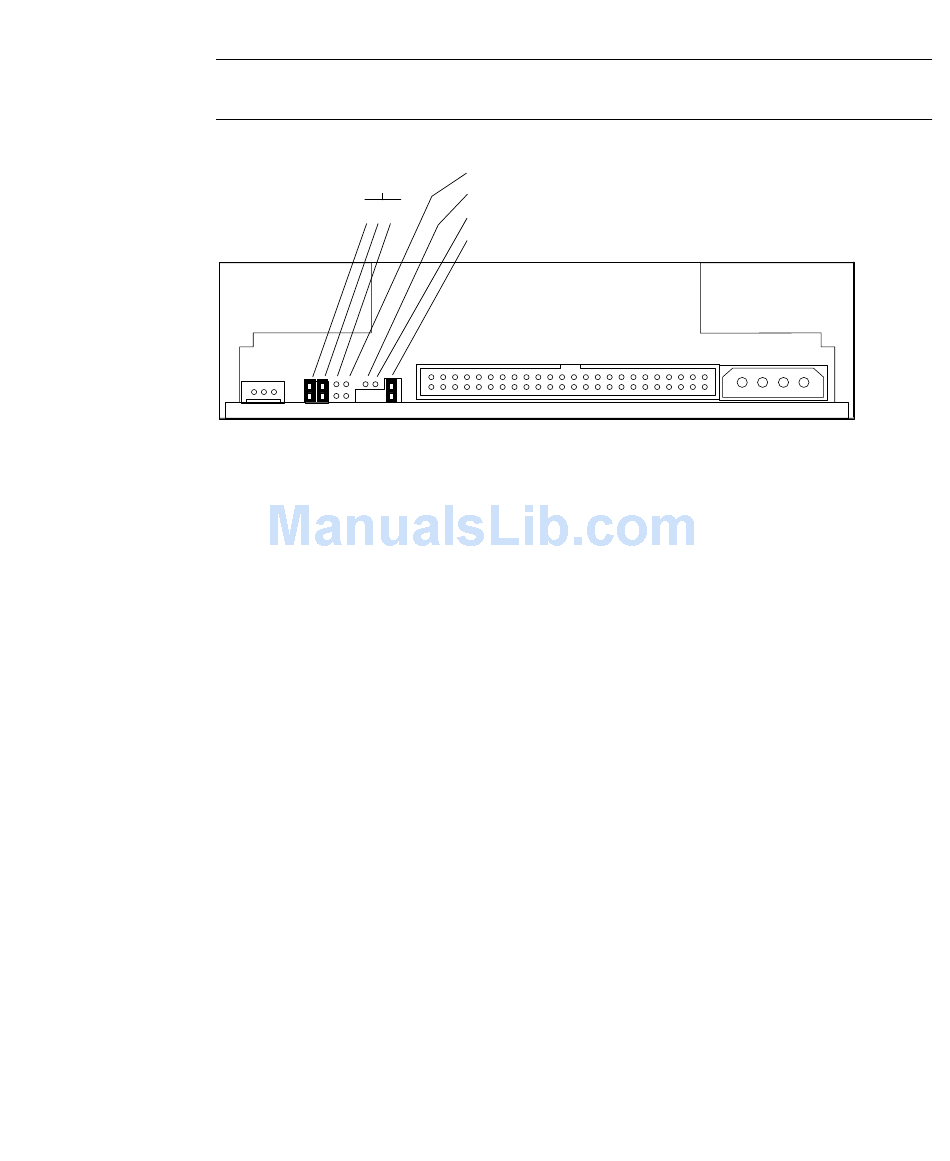

Jumper Settings for the CD-ROM Drive
FIGURE 9-5
3. Install the drive as shown in
The CD-ROM drive sits on the shelf above the diskette drive. Push the drive toward
the center of the unit so that the grommets lock into place.
4. Attach the SCSI data cable (labeled P2), the DC power cable (also labeled P2), and
the audio cable to the CD-ROM drive.
See .
FIGURE 9-6
Parity
Prevent / Allow
Test
Term power
.
FIGURE 9-6
Chapter 9 Storage Devices 9-7
