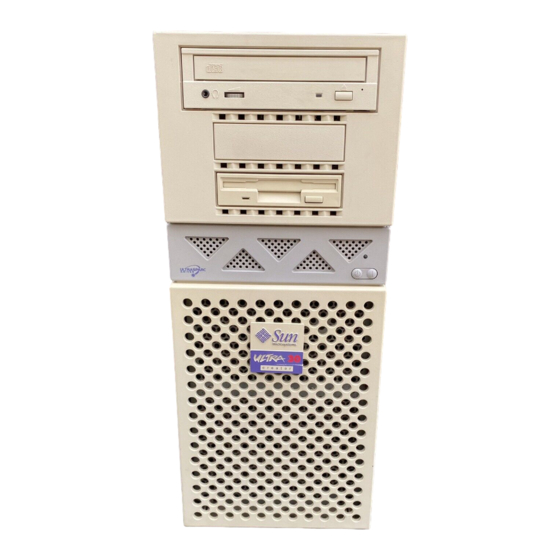

Sun Microsystems Ultra 30 Reference Manual

Hide thumbs Also See for Ultra 30:
Table of Contents

Advertisement

Quick Links

Download this manual
Sun Ultra™ 30 Reference
Manual
Sun Microsystems, Inc.
901 San Antonio Road
Palo Alto, CA 94303-4900 USA
650 960-1300
Fax 650 969-9131
Part No.: 802-7718-10
March 1997, Revision A
Send comments about this document to: docfeedback@sun.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra 30 and is the answer not in the manual?

Questions and answers

Related Manuals for Sun Microsystems Ultra 30

Summary of Contents for Sun Microsystems Ultra 30

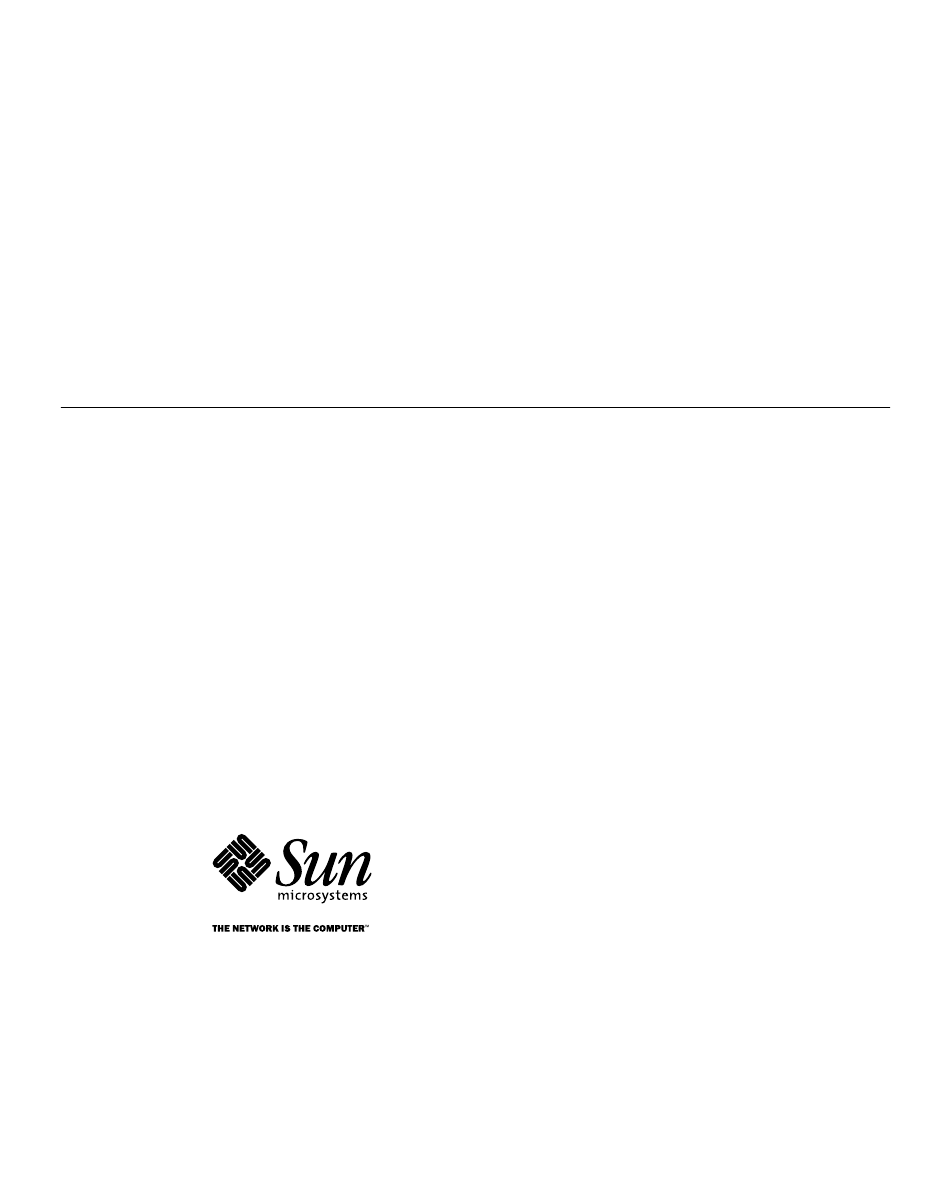

  • Page 1 Sun Ultra™ 30 Reference Manual Sun Microsystems, Inc. 901 San Antonio Road Palo Alto, CA 94303-4900 USA 650 960-1300 Fax 650 969-9131 Part No.: 802-7718-10 March 1997, Revision A Send comments about this document to: docfeedback@sun.com...
  • Page 2 Sun, Sun Microsystems, the Sun logo, SunStore, AnswerBook2, docs.sun.com, and Solaris are trademarks, registered trademarks, or service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc.

  • Page 3: Table Of Contents

    Contents Preface xi How This Book Is Organized xi Related Documents xii Sun Welcomes Your Comments xii Back Panel Connectors 1-1 Connector Layout 1-1 Serial Connectors 1-3 Parallel Connector 1-4 Keyboard/Mouse Connector 1-5 Media Independent Interface (MII) Connector 1-6 1.5.1 MII Cable-Type Connectivity 1-7 1.5.2 External Cable Lengths 1-8...
  • Page 4 Main Logic Board Jumpers 4-1 Identifying Jumpers 4-3 Flash PROM Jumpers 4-3 Serial Port Jumpers 4-4 UltraSPARC Module Clocking Select Jumper 4-5 System Specifications 5-1 Power Specifications 5-2 Environmental Specifications 5-2 Physical Specifications 5-4 Sun Ultra 30 Reference Manual • March 1997...
  • Page 5 Memory Mapping 5-5 5.4.1 DIMM Installation Guidelines 5-5 5.4.2 DIMM Banks and Slot Pairs 5-5 PCI Card Slot Specifications 5-7 5.5.1 Locating the PCI Card Slots 5-7 5.5.2 PCI Card Slot Operating Frequencies 5-9...
  • Page 6 Sun Ultra 30 Reference Manual • March 1997...
  • Page 7 Jumper Locations on the Main Logic Board 4-2 FIGURE 4-1 Identifying Jumper Pins 4-3 FIGURE 4-2 Ultra 30 System Enclosure Physical Dimensions 5-4 FIGURE 5-1 Map of DIMM Slot Pairs on Main Logic Board 5-6 FIGURE 5-2 PCI Card Slot Locations on the System Unit Back Panel 5-7...
  • Page 8 Sun Ultra 30 Reference Manual • March 1997...
  • Page 9 Keyboard/Mouse Connector Pinouts 1-5 TABLE 1-3 MII Connector Pinouts 1-6 TABLE 1-4 MII External Cable Lengths 1-8 TABLE 1-5 Ultra 30 MII Connectivity: Supported Transceivers 1-8 TABLE 1-6 TPE Connector Pinouts 1-9 TABLE 1-7 TPE UTP-5 Cable Lengths 1-10 TABLE 1-8...
  • Page 10 Environmental Specifications—Operating 5-2 TABLE 5-3 Environmental Specifications—Nonoperating 5-3 TABLE 5-4 Dimensions and Weight 5-4 TABLE 5-5 DIMM Banks and Slot Pairs 5-5 TABLE 5-6 PCI Card Slot Operating Frequencies 5-9 TABLE 5-7 Sun Ultra 30 Reference Manual • March 1997...

  • Page 11: Preface

    Preface The Sun Ultra 30 Reference Manual contains information about the use and maintenance of a Ultra 30 system. How This Book Is Organized Chapter 1, “Back Panel Connectors,” shows the location of each back panel connector and gives the pinouts for each connector.

  • Page 12: Related Documents

    Send email or fax your comments to us. Please include the part number of your document in the subject line of your email or fax message. Email:smcc-docs@sun.com Fax: SMCC Document Feedback 1-415-786-6443 Sun Ultra 30 Reference Manual • March 1997...

  • Page 13: Back Panel Connectors

    C H A P T E R Back Panel Connectors Connector Layout Figure 1-1 shows the locations of Ultra 30 system back panel switches and connectors.

  • Page 14: Figure 1-1 Back Panel Switches And Connectors

    PCI66 Slot 1 Graphics/ PCI Slot 2 video PCI Slot 3 connector PCI Slot 4 UPA Slot Audio Module Connector Icons: Headphone Line out Line in Microphone Back Panel Switches and Connectors FIGURE 1-1 Sun Ultra 30 Reference Manual • March 1997...

  • Page 15: Serial Connectors

    Serial Connectors DB-25 Serial Connectors FIGURE 1-2 Serial Connector Pinouts, RS-423/RS-232 TABLE 1-1 Function Signal Description none none Not connected Transmit Data Receive Data Ready To Send Clear To Send Data Set Ready Signal Ground Data Carrier Detect 9–14 none none Not connected TRxC...

  • Page 16: Parallel Connector

    Note – For information about serial port jumpers on the Ultra 30 system main logic board, see section 4.1, “Identifying Jumpers,” and section 4.3, “Serial Port Jumpers.” Parallel Connector DB-25 Parallel Connector FIGURE 1-3 Parallel Connector Pinouts TABLE 1-2 Description...

  • Page 17: Keyboard/Mouse Connector

    Keyboard/Mouse Connector DIN-8 Keyboard/Mouse Connector FIGURE 1-4 Keyboard/Mouse Connector Pinouts TABLE 1-3 Description Description Ground Keyboard_Data_ Out_L Ground Keyboard_Data_ In_L Power Poweron_L Mouse_Data_In_L Power Note – All signals are standard TTL levels. The +5V supply is fuse-protected. Chapter...

  • Page 18: Media Independent Interface (Mii) Connector

    Signal Ground RX_DV Signal Ground RX_CLK Signal Ground RX_ER Signal Ground TX_ER Signal Ground TX_CLK Signal Ground TX_EN Signal Ground TXD<0> Signal Ground TXD<1> Signal Ground TXD<2> Signal Ground TXD<3> Signal Ground Sun Ultra 30 Reference Manual • March 1997...

  • Page 19: Mii Cable-Type Connectivity

    MII Connector Pinouts (Continued) TABLE 1-4 Function Function Ground Signal Ground Ground Signal Ground Ground 1.5.1 MII Cable-Type Connectivity The following types of Ethernet cables can be connected to the 40-pin MII connector when using specific interface conversion devices: Shielded twisted-pair (STP) Unshielded twisted-pair (UTP) Fiber (connected to an external transceiver) Chapter...

  • Page 20: External Cable Lengths

    Thick coaxial-cable XF467A, Sun MII-to-AUI Ethernet MII to AUI, 10BASE-5 UTP-3, CT4-1030, Canary Communications “voice grade” 100BASE-T4 Fiber 6211 Micro, Transcast Corporation Fast Ethernet, 100BASE-FX Fiber CFX-107X, Canary Communications Fast Ethernet 100BASE-FX Sun Ultra 30 Reference Manual • March 1997...

  • Page 21: Twisted-Pair Ethernet (Tpe) Connector

    Twisted-Pair Ethernet (TPE) Connector RJ-45 TPE Connector FIGURE 1-6 TPE Connector Pinouts TABLE 1-7 Description Description Transmit Data + Common Mode Termination Transmit Data - Receive Data - Receive Data + Common Mode Termination Common Mode Common Mode Termination Termination 1.6.1 TPE Cable-Type Connectivity The following types of twisted-pair Ethernet cables can be connected to the 8-pin...

  • Page 22: External Utp-5 Cable Lengths

    1. IEEE 802.3 SCSI Connector 68-Pin SCSI Connector FIGURE 1-7 68-Pin SCSI Connector Pinouts TABLE 1-9 Signal Name Signal Name Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Sun Ultra 30 Reference Manual • March 1997...
  • Page 23 68-Pin SCSI Connector Pinouts TABLE 1-9 Signal Name Signal Name Ground Ground Ground -DB<12> Ground -DB<13> Ground -DB<14> Ground -DB<15> Ground -PAR<1> Ground -DB<0> Ground -DB<1> Ground -DB<2> TERMPWR -DB<3> TERMPWR -DB<4> Not connected -DB<5> Ground -DB<6> Ground -DB<7> Ground -PAR<0>...

  • Page 24: Scsi Implementation

    SCSI cable with a maximum length of 0.8 meter (32 inches). When SCSI-3 and SCSI- 2 devices are connected to the Ultra 30 system SCSI bus, the system enables each device to operate at its respective data transfer rate. The last external SCSI device in a daisy-chain must be terminated internally (active termination) or with an external terminator according to Forced-Perfect Termination (FPT) technology.

  • Page 25: Scsi-2 (Fast Wide Scsi) External Devices

    (WideUltra) 1. The maximum number of single-ended/differential SCSI devices is 16. 2. The effective internal SCSI bus length of the Ultra 30 system unit is 0.9 meter. 3. Verify the cable type used to connect external SCSI devices. You must use Fast-20 SCSI cable(s).
  • Page 26 If external mass storage devices consist of 68-pin Sun devices and 50-pin devices, connect the Sun 68-pin devices to the Ultra 30 system first and terminate the daisy chain with the 50-pin device and its terminator. The total SCSI bus length for all SCSI devices (internal and external) is 6.0 meters (19.7 feet).

  • Page 27: Audio Ports

    Audio Ports Audio Module Connector Icons: Headphones Line Out Line In Microphone Audio Port Locations FIGURE 1-9 All audio ports use EIA standard 3.5-mm/0.125-inch jacks. Audio Port Signals TABLE 1-11 Plug Headphones Line Out Line In Microphone Left Channel Left Channel Left Channel Left Channel Ring (Center)

  • Page 28: Audio Specifications

    Connects the SunMicrophone™ II (or other suitable microphone to the system 1. The Ultra 30 system microphone port accepts stereophonic input; however, the Sun Microphone II is a mono- phonic device. Note also that the older SunMicrophone is not compatible with the Ultra 30 system.

  • Page 29: Graphics Card 13W3 Video Connector

    Internal Monaural Speaker Specifications TABLE 1-14 Speaker Specifications Power Output 1W average, 2W peak Distortion 0.02%, typical at 1 kHz Impedance 16 ohm +/- 15% Frequency Response 170 Hz–20 kHz +/- 6 dB 1.10 Graphics Card 13W3 Video Connector 13W3 Video Connector FIGURE 1-10 The graphics card for your system provides the 13W3 video connector for transmitting video output signals from the system unit to the monitor.

  • Page 30: Ground

    13W3 Video Connector Pinouts TABLE 1-15 Function Level Horiz Sync Serial Write Sense <1> Sense <2> Ground Sun Ultra 30 Reference Manual • March 1997...

  • Page 31: 10Base-T Twisted-Pair Ethernet Link Test

    10BASE-T Twisted-Pair Ethernet Link Test Read this chapter if you are connecting your Ultra 30 system to a 10BASE-T twisted- pair Ethernet (TPE) network. This chapter contains important information for getting your system to communicate correctly over a TPE network. If you have no experience with TPE networks, ask your system or network administrator to perform the procedures in this chapter.

  • Page 32: Figure 2-1 Hosts And Hub In A Local Area Network

    Host Host Ultra 30 (Host) Host Host 100 meters 109 yards Host Hosts and Hub in a Local Area Network FIGURE 2-1 Sun Ultra 30 Reference Manual • March 1997...

  • Page 33: Technical Discusssion

    Link Test Two-way communication Link Test Enabled Enabled (Default) Ultra 30 Link Test Ultra 30 may boot Link Test Enabled successfully, but with “lost Disabled (Default) carrier” or “no carrier” error messages. Ultra 30 Ultra 30 may boot Link Test...

  • Page 34: Troubleshooting

    Disabling the Link Test,” to disable the link test at your Ultra 30 host. Moves and Changes If the Ultra 30 host is physically moved to another network location or if the hub is reconfigured, remember to refer back to Figure 2-2. Unless the new network...

  • Page 35: Checking Or Disabling The Link Test

    Checking or Disabling the Link Test To check the link test state of a Ultra 30 host: 1. If you do not see the ok prompt, press the Stop (L1)-a keys. 2. At the ok prompt, type: ok printenv tpe-link-test?
  • Page 36 = true ok reset-all 2. Boot the host and verify that the transceiver cable problem messages do not appear by typing either boot net or boot disk and pressing Return. Sun Ultra 30 Reference Manual • March 1997...

  • Page 37: Modem Setup Specifications

    C H A P T E R Modem Setup Specifications Setting Up the Modem Any modem compatible with CCITT V.24 can be connected to the Ultra 30 serial ports. Modems can be set up to function in one of three ways: Dial out only...

  • Page 38: Serial Port Speed Change

    Typical speeds are 9600, 19200 to 38400 bps. The device name is the serial port name — for example, /dev/tty[a,b] or /dev/term/[a,b]. Note – The Ultra 30 serial ports are tested to a maximum of 460,000 bps. As of March 1997, Ultra 30 systems have not been tested with 56,000 bps V.34 modems.

  • Page 39: Recommendations

    Recommendations 3.3.1 Cable For a modem-to-host (system) connection, use an RS-423/RS-232 straight-through cable with DB-25 male connectors at both ends. 3.3.2 Modem Switch Settings (AT Commands) Enable transmit flow control (AT&H1) [suggested setting] (Required for sending binary/8-bit data.) Set link rate to fixed (Will not track modem data rate, AT&Bn;...
  • Page 40 Sun Ultra 30 Reference Manual • March 1997...

  • Page 41: Main Logic Board Jumpers

    C H A P T E R Main Logic Board Jumpers The jumper settings given in this chapter refer to the etchings on the main logic board. The jumpers are labeled with the letter “J” followed by a four-digit number (Figure 4-1).

  • Page 42: Figure 4-1 Jumper Locations On The Main Logic Board

    Top of System Toward Front of System Jumpers Inner: J2702 J2605 J2801 J3001 Outer: J2703 Back Panel J2604 J0103 J2804 Toward Bottom of System Jumper Locations on the Main Logic Board FIGURE 4-1 Sun Ultra 30 Reference Manual • March 1997...

  • Page 43: Identifying Jumpers

    Flash PROM Hi-Lo Booting J3001 UltraSPARC Module Clocking Select Flash PROM Jumpers The Ultra 30 system uses flash PROMs. Flash PROMs enable: Reprogramming of specific code blocks Remote reprogramming of the PROM chip by a system administrator over a local area network The default shunt setting of J2703 is on pins 1 and 2.

  • Page 44: Serial Port Jumpers

    Default Jumper Jumper Pins 1 + 2 Select Pins 2 + 3 Select on Pins Signal Controlled J2604 RS-232 RS-423 2 + 3 RS232/RS423 SEL J2605 RS-232 RS-423 2 + 3 RS232/RS423 SEL Sun Ultra 30 Reference Manual • March 1997...

  • Page 45: Ultrasparc Module Clocking Select Jumper

    UltraSPARC Module Clocking Select Jumper UltraSPARC Module Clocking Select Jumper Settings TABLE 4-4 Jumper Pins 1 + 2 Select Pins 2 + 3 Select Default Jumper on Pins J3001 250 MHz, 1 Mbyte All 167 MHz and 1 + 2 external cache;...
  • Page 46 Sun Ultra 30 Reference Manual • March 1997...

  • Page 47: System Specifications

    C H A P T E R System Specifications...

  • Page 48: Power Specifications

    0 meters (0 feet) [sea level] to 3000 meters (9840 feet) —IEC 68-2-13 Humidity 20% to 80% relative humidity (RH), wet bulb limit of 27°C —IEC 68-2-02, 68-2-03 Shock 5.0G, 11 milliseconds, half sine pulse —IEC 68-2-27 Sun Ultra 30 Reference Manual • March 1997...
  • Page 49 Environmental Specifications—Operating TABLE 5-3 Vibration 0.2G, 5 to 500 to 5 Hz, 5 sweeps in 3 mutually perpendicular axes —IEC 68-2-06 Temperature 10°C to 40°C (50°F to 104°F) without removable —IEC 68-2-01, 68-2-02 tape media Temperature with 10°C to 35°C (50°F to 95°F) removable tape —IEC 68-2-01, 68-2-02 media...

  • Page 50: Physical Specifications

    17.63 kg (38.87 lb) 1. This weight is an approximation for a system equipped with four dual inline memory modules (DIMMs), two UPA graphics cards, two hard disk drives, and one CD-ROM drive. Sun Ultra 30 Reference Manual • March 1997...
  • Page 51 Memory Mapping 5.4.1 DIMM Installation Guidelines Dual inline memory modules (DIMMs) are installed in pairs and are mapped in banks of four DIMMs. Each pair must be of the same memory size and speed. For best system performance (recommended), install each bank with four DIMMs of the same memory size and speed If DIMMs of different memory size are installed together as a pair, the system will read both DIMMs at the lower of the two memory sizes.
  • Page 52 U1003 U0903 U0803 U0703 U1002 U0902 U0802 Toward U0702 Front of U1001 U0901 System U0801 U0701 Back Panel Bottom of System Map of DIMM Slot Pairs on Main Logic Board FIGURE 5-2 Sun Ultra 30 Reference Manual • March 1997...

  • Page 53: Figure 5-3 Pci Card Slot Locations On The System Unit Back Panel

    The Ultra 30 system uses the Peripheral Component Interconnect (PCI) local bus architecture to connect PCI accessory cards (printed circuit boards). PCI cards plug into Ultra 30 system PCI slots. PCI cards come in different physical sizes, operate at different frequencies, and provide many different types of functionality.
  • Page 54 System PCI66 Slot 1 J1301 PCI Slot 2 J1401 PCI Slot 3 J1501 PCI Slot 4 J1601 Toward Bottom of System PCI Card Slot Locations on the Main Logic Board FIGURE 5-4 Sun Ultra 30 Reference Manual • March 1997...
  • Page 55 PCI Slot 4 J1601 33 MHz 5.0 volts All Ultra 30 system PCI card slots operate at 32-bit or 64-bit bus widths. Most PCI cards operate at 33 MHz. Cards designed to operate at 66 MHz must be installed in the PCI66 slot.
  • Page 56 Sun Ultra 30 Reference Manual • March 1997...
  • Page 57 Index enabling, 2-6 hardware switch, 2-4 host, 2-1, 2-2, 2-3, 2-4, 2-5, 2-6 hub, 2-1, 2-2, 2-3, 2-4 IEEE, 2-1, 2-4 LAN, 2-1, 2-2 star congiruation, 2-1 test pulse, 2-3, 2-4 TPE cable, 2-5, 2-6...
  • Page 58 Sun Ultra 30 Reference Manual • March 1997...
