5. Lift the drive handle to its vertical position.
When lifted, the drive bracket acts as a lever to disconnect the drive from the chassis
connector on the SCSI backplane.
6. Grasp the drive bracket handle and lift the drive straight up and out of the
chassis.
See
FIGURE 9-2
FIGURE 9-2
7. Repeat Steps 4 through 6 to remove the bottom disk drive (if necessary).
9.1.2

Replacing a Hard Disk Drive

Note – No jumper settings are required for the hard drives.
1. Remove the replacement drive from its antistatic shipping bag.
2. Release the handle latch near the rear of the drive and lift the handle until it is in
the vertical position.
. Place the drive on an antistatic surface.

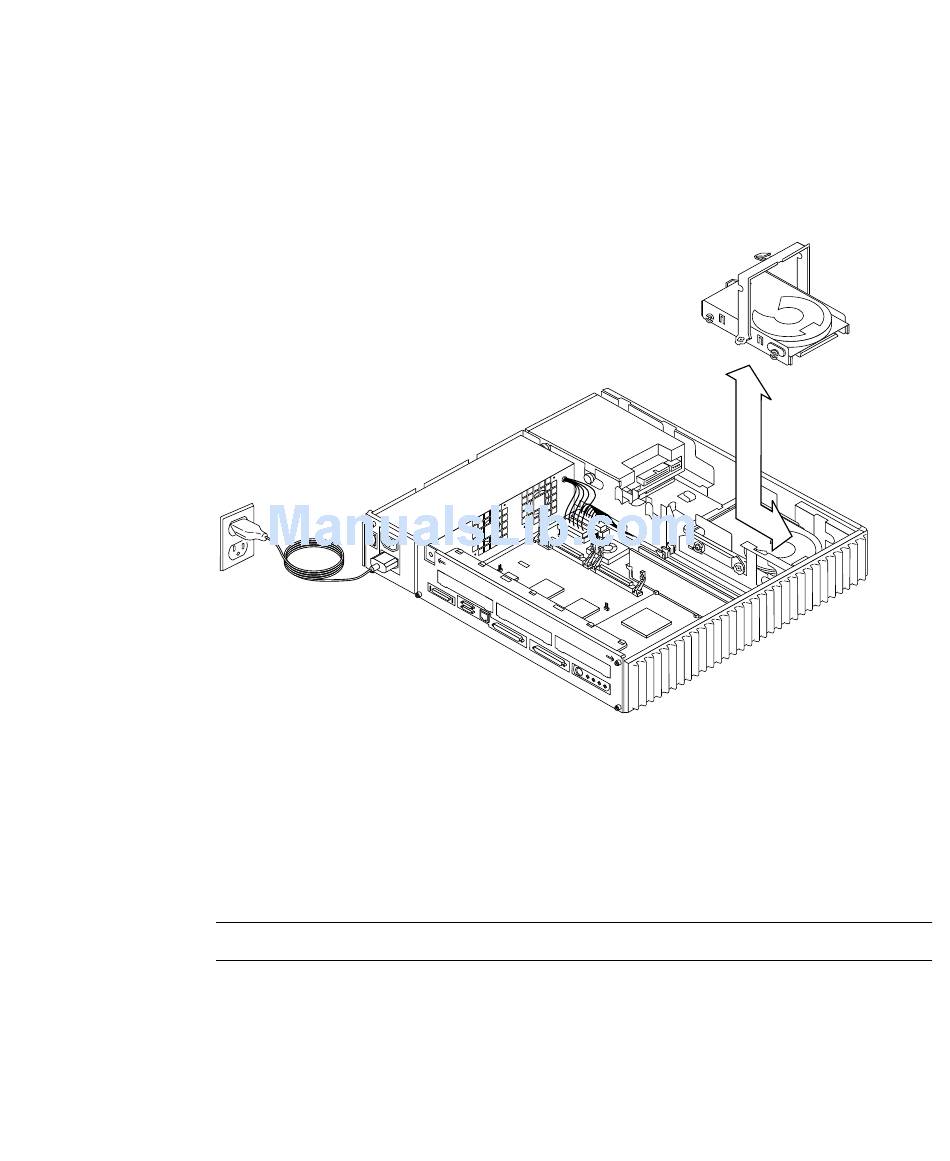

Removing a Hard Disk Drive
Chapter 9 Storage Devices 9-3
