FIGURE 8-3
7. Carefully free the speaker/LED harness from the card guide cable clips, and lift
the harness out of the system chassis.
8.2.2

Replacing the Speaker/LED Cable

1. Feed the LED cable through the chassis wall opposite the light pipe.
See
FIGURE 8-4
entrance of the LED light pipe.
2. Press the LED cable between the tabs to secure it in place.
See
FIGURE 8-4
8-6
SPARCstation 5 Model 110 Service Manual • November 1996
Power LED

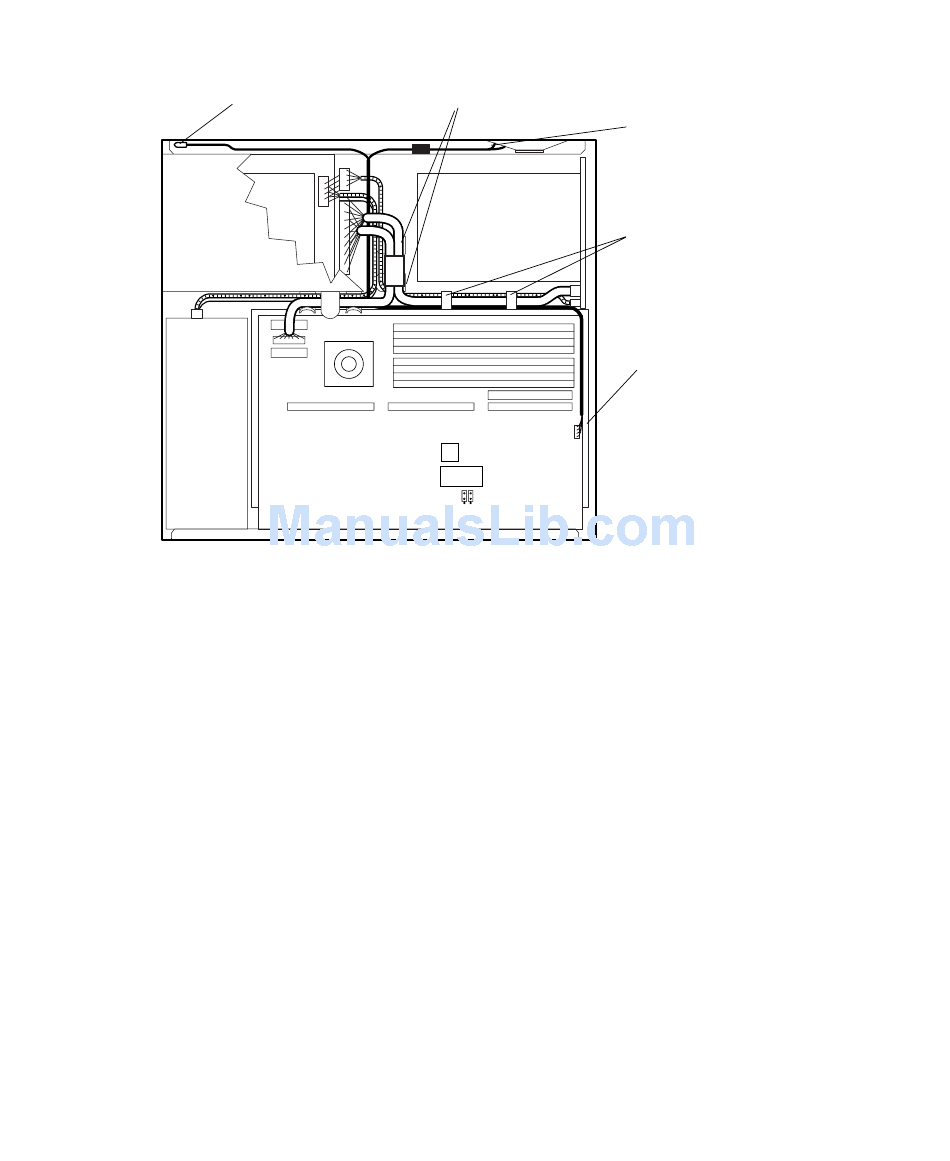

Speaker/Power LED Cable Connections
. Position the replacement LED cable so that the LED just fits inside the
.
Metal cable clips
on chassis floor
Speaker cable
connectors
Card guide cable clips
Speaker/LED
cable connector
