Page 1 Sun Ultra 60 Service Manual 901 San Antonio Road Palo Alto, , CA 94303-4900 USA 650 960-1300 Fax 650 969-9131 Part No: 805-1709-11 March 1999, Revision A...
Page 2 Sun, Sun Microsystems, the Sun logo, SunStore, AnswerBook2, docs.sun.com, and Solaris are trademarks, registered trademarks, or service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or registered trademarks of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon an architecture developed by Sun Microsystems, Inc.
Page 3: Table Of Contents
Contents Preface xi Product Description 1–1 I/O Devices 1–2 System Unit Features 1–3 System Unit Components 1–5 SunVTS Overview 2–1 SunVTS Description 2–1 SunVTS Operation 2–2 Power-On Self-Test 3–1 POST Overview 3–1 Pre-POST Preparation 3–2 3.2.1 Setting Up a Tip Connection 3–2 3.2.2 Verifying the Baud Rate 3–4 Initializing POST 3–4...
Page 4 Keyboard 4–17 4.7.5 Mouse 4–17 4.7.6 Floppy 4–18 4.7.7 Parallel Port 4–18 4.7.8 Serial Port A 4–18 4.7.9 Serial Port B 4–19 4.7.10 NVRAM 4–20 4.7.11 Audio 4–20 4.7.12 SCSI 4–21 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 5 4.7.13 All Above 4–21 Safety and Tool Requirements 5–1 Safety Requirements 5–1 Symbols 5–2 Safety Precautions 5–2 5.3.1 Modiﬁcation to Equipment 5–2 5.3.2 Placement of a Sun Product 5–2 5.3.3 Power Cord Connection 5–3 5.3.4 Electrostatic Discharge 5–3 5.3.5 Lithium Battery 5–3 Tools Required 5–3 Power On and Off 6–1 Powering On the System Unit 6–1...
Page 6 8.10.1 Removing the Shroud Assembly 8–26 8.10.2 Replacing the Shroud Assembly 8–28 Storage Devices 9–1 Hard Drive 9–1 9.1.1 Removing a Hard Drive 9–1 9.1.2 Replacing a Hard Drive 9–3 Removable Media Assembly Drive 9–4 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 7 9.2.1 Removing the RMA 9–4 9.2.2 Removing the CD-ROM Drive or Any X-Option Tape Drive 9–6 9.2.3 Replacing the CD-ROM Drive or Any X-Option Tape Drive 9–7 9.2.4 Removing the Diskette Drive 9–8 9.2.5 Replacing the Diskette Drive 9–8 9.2.6 Replacing the RMA 9–9 Motherboard and Component Replacement 10–1 10.1...
Page 8 C.1.7 Other RMA Storage Device X-Options C–16 C.1.8 Keyboard and Mouse, Diskette, and Parallel Port C–16 C.1.9 Serial Port C–19 C.1.10 Ethernet C–21 C.1.11 Audio Card and Connector C–24 Sun Ultra 60 Service Manual ♦ March 1999, Revision A viii...
Page 9 C.1.12 SCSI C–26 C.1.13 ASICs C–30 C.1.14 SuperIO C–33 Power Supply 11–33 C.2.1 Control Signals C–34 C.2.2 Built-In Speaker C–38 C.2.3 Standard System Facilities C–38 Motherboard 11–39 Jumper Descriptions 11–41 C.4.1 Serial Port Jumpers C–42 C.4.2 Flash PROM Jumpers C–43 Enclosure 11–43 C.5.1 Enclosure Basics C–44 C.5.2 Enclosure Features C–44...
Page 10 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 11: Preface
Preface The SunUltra 60 Service Manual provides detailed procedures that describe the removal and replacement of replaceable parts in the Ultra 60 computer (system unit). The service manual also includes information about the use and maintenance of the system unit. This book is written for technicians, system administrators, authorized service providers (ASPs), and advanced computer system end users who have experience troubleshooting and replacing hardware.
Page 12 Provides signal descriptions. Appendix C, “Functional Description” Provides functional descriptions for the system unit. Glossary Provides a listing of acronyms, terms, and deﬁnitions. Index Provides a quick reference to speciﬁc topics. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 13: Typographic Conventions
UNIX Commands This document may not contain information on basic UNIX commands and procedures. See one or more of the following for this information: 4 Solaris 2.x Handbook for SMCC Peripherals. 4 AnswerBook online documentation for the Solaris 2.x software environment. 4 Other software documentation that you received with your system.
Page 14: Related Documents
Sun Ultra 60 System Reference Manual Conﬁguration 802-7675 Solaris Handbook for SMCC Peripherals Diagnostics 802-5331 SunVTS 2.0 User’s Guide Diagnostics 802-5330 SunVTS 2.0 Test Reference Manual Diagnostics 802-5329 SunVTS 2.0 Quick Reference Card Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 15 Related Documents TABLE P–4 (continued) Application Title Part Number Installation 802-1849 14-Gbyte, 8-mm Tape Drive Installation Manual Installation 802-6682 Creator Frame Buffer Installation Guide Installation/user 802-7791 12-24 Gbyte 4-mm DDS-3 Tape Drive Installation and User’s Guide Installation 802-1653 5.25” Fast/Wide Differential SCSI Disk Drive Installation Manual Installation/user...
Page 16 We are interested in improving our documentation and welcome your comments and suggestions. You can email your comments to us at smcc-docs@sun.com. Please include the part number of your document in the subject line of your email. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 17: Product Description

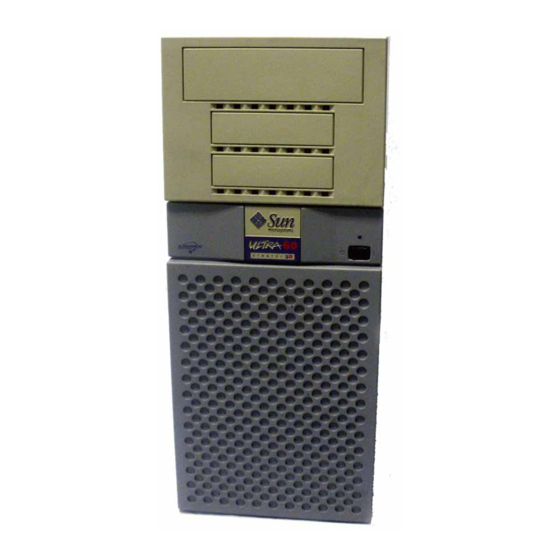

CHAPTER Product Description The Ultra 60 desktop workstation is a multiprocessor device that uses the family of UltraSPARC processors. It supports high-performance processing and high-performance graphics. Figure 1–1 illustrates the Ultra 60 desktop workstation. Enclosed within a minitower enclosure, the Ultra 60 desktop workstation provides the following: 4 Power and cooling requirements for a high-performance processor and graphic function...
Page 18: I/O Devices
1600 x 1000 resolution, 76- or 66-Hz refresh rate, 86 dpi 1400 x 900 resolution, 76-Hz refresh rate, 77 dpi 1280 x 800 resolution, 76-Hz refresh rate, 69 dpi Microphone SunMicrophone Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 19: System Unit Features
Supported I/O Devices TABLE 1–1 (continued) I/O Devices Description Keyboard Sun Type-5; AT 101 or UNIX layout available Opto- Optomechanical, 3-button mechanical mouse No longer ships with system, optional System Unit Features System unit components are housed in a tower conﬁguration enclosure. Overall enclosure dimensions (width x depth x height) are 7.50 inches (19.0 cm) x 19.60 inches (49.8 cm) x 17.70 inches (45.0 cm).
Page 20 4 Modular audio interface. Figure 1–2 System Unit Front View Figure 1–3 System Unit Rear View Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 21: System Unit Components
Note - Removal and replacement of selected system unit components are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. Note - Consult your authorized Sun sales representative or service provider to conﬁrm a part number prior to ordering a replacement part.
Page 22 4-Gbyte/8-Gbyte, 4-mm tape drive, DDS-2 4-mm tape drive 12-Gbyte/24-Gbyte, 4-mm tape drive, DDS-3 8-mm tape drive 14-Gbyte, 8-mm tape drive TPE cable (category 5) Twisted-pair Ethernet cable DC switch assembly DC switch assembly Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 23: Sunvts Overview
CHAPTER SunVTS Overview This chapter contains an overview of the SunVTS diagnostic tool. This chapter contains the following topics: 4 Section 2.1 “SunVTS Description” on page 2-1 4 Section 2.1 “SunVTS Description” on page 2-1 SunVTS Description The SunVTS software executes multiple diagnostic hardware tests from a single user interface.
Page 24: Sunvts Operation
802-7300 Describes each SunVTS test; SunVTS Test Reference Manual provides various test options and command line arguments 802-7301 Provides overview of vtsui SunVTS Quick Reference Card interface features Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 25: Power-On Self-Test
CHAPTER Power-On Self-Test This chapter describes how to initiate power-on self-test (POST) diagnostics. This chapter contains the following topics: 4 Section 3.1 “POST Overview” on page 3-1 4 Section 3.2 “Pre-POST Preparation” on page 3-2 4 Section 3.3 “Initializing POST” on page 3-4 4 Section 3.4 “Maximum and Minimum Levels of POST”...
Page 26: Pre-Post Preparation
1. See Figure 3–1. Connect serial port A of the system being tested to serial port B of another Sun workstation using a serial null modem cable (connect cable pins 2-3, 3-2, 7-20, and 20-7). Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 27 Figure 3–1 Setting Up a TIP Connection 2. At the other Sun workstation, check the /etc/remote ﬁle by changing to the /etc directory and then editing the remote ﬁle: hardwire:/ dv=/dev/term/b:br#9600:el=^C^S^Q^U^D:ie=%$:oe=^D: Note - The example shows connection to serial port B. 3.
Page 28: Verifying The Baud Rate
3. Verify the following serial port default settings as follows: ttyb-mode = 9600,8,n,1 ttya-mode = 9600,8,n,1 Note - Ensure that the settings are consistent with TTY-type terminal or workstation monitor settings. Initializing POST POST is initilized in two ways: Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 29 4 By setting the diag-switch? to true and the diag-level to max or min, followed by power cycling the system unit 4 By simultaneously pressing the keyboard Stop and D keys while power is applied to the system unit To set the diag-switch? to true and power cycle the system unit: 1.
Page 30: Maximum And Minimum Levels Of Post
(with 128 Mbytes of DIMM installed). Table 3–1 identiﬁes a typical serial port A POST output with the diag-level variable set to max. Diag-Level Variable Set to max CODE EXAMPLE 3–1 Executing Power On SelfTest 0> (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 31 (Continuation) 0>@(#) Sun Ultra 60(UltraSPARC-II 2-way) UPA/PCI POST 1.0.6 12/02/1997 10:52 AM 0>INFO: Processor 0 is master. 0> 0> <00> Init System BSS 0> <00> NVRAM Battery Detect Test 0> <00> NVRAM Scratch Addr Test 0> <00> DMMU TLB Tag Access Test 0>...
Page 32 0> <1f> Psycho Perf Cntl Reg Test 0> <1f> PIO Decoder and BCT Test 0> <1f> PCI Byte Enable Test 0> <1f> Counter/Timer Limit Regs Test 0> <1f> Timer Reload Test (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 33 (Continuation) 0> <1f> Timer Periodic Test 0> <1f> Mondo Int Map (short) Reg Test 0> <1f> Mondo Int Set/Clr Reg Test 0> <1f> Psycho IOMMU Regs Test 0> <1f> Psycho IOMMU RAM Address Test 0> <1f> Psycho IOMMU CAM Address Test 0>...
Page 34 0> <1f> Stream DMA Rd, IOMMU miss, Scache Miss Lpbk Test 0> <1f> Stream DMA Rd, IOMMU hit, Scache Miss Ebus Test 0> <1f> Stream DMA Rd, IOMMU hit, Scache Miss Lpbk Test (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-10...
Page 35 (Continuation) 0> <1f> Stream DMA Rd, IOMMU Miss, Scache(prev rd) Hit Ebus Test 0> <1f> Stream DMA Rd, IOMMU Miss, Scache Hit (prev rd) Lpbk Test 0> <1f> Stream DMA Rd, IOMMU Hit, Scache Hit Ebus Test 0> <1f> Stream DMA Rd, IOMMU Hit, Scache Hit (prev rd) Lpbk Test 0>...
Page 36 2> <00> Test 12: prefetch with fcn 29 is noped 2> <00> Test 13: prefetcha with asi 0x15 is noped 2> <00> Test 14: prefetch with fcn 3 2> <00> Test 15: prefetcha14 with fcn 2 (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-12...
Page 37: Diag-Level Variable Set To Min
Diag-Level Variable Set to min CODE EXAMPLE 3–2 Executing Power On SelfTest 0> 0>@(#) Sun Ultra 60(UltraSPARC-II 2-way) UPA/PCI POST 1.0.6 12/02/1997 10:52 AM 0>INFO: Processor 0 is master. 0> 0> <00> Init System BSS 0> <00> NVRAM Battery Detect Test 0>...
Page 38 0> <1f> Pass-Thru DMA UE ECC Rd Err Lpbk Test 0> <00> Copy Post to Memory 0> <00> Ecache Thrash Test 0> <00> Init Memory 0> <00> Memory Addr w/ Ecache Test (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-14...
Page 39 (Continuation) 0>INFO: 128MB Bank 0 0>INFO: 0MB Bank 1 0>INFO: 0MB Bank 2 0>INFO: 0MB Bank 3 0> <00> Block Memory Addr Test 0>INFO: 128MB Bank 0 0>INFO: 0MB Bank 1 0>INFO: 0MB Bank 2 0>INFO: 0MB Bank 3 0> <00> ECC Memory Addr Test 0>INFO: 128MB Bank 0 0>INFO: 0MB Bank 1...
Page 40 2> <00> Test 20: prefetcha10_6: illegal instruction trap 2> <00> Test 21: prefetcha11_1w 2> <00> Test 22: prefetcha81_31 2> <00> Test 23: prefetcha11_15: illegal instruction trap 0>STATUS =PASSED (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-16...
Page 41: Post Progress And Error Reporting
(Continuation) Power On Selftest Completed 3.4.3 POST Progress and Error Reporting While POST is initialized, the Caps Lock key on the Sun Type-5 keyboard ﬂashes on and off to indicate that POST tests are being executed. Additional POST progress indications are also visible when a TTY-type terminal or a tip line is connected between serial port A (default port) of the system being tested and a POST monitoring system.
Page 42 0> PATH SUSPECT= XBAR U301 0> <00> Memory Stack Test 0>STATUS =FAILED 0>TEST =Post Memory Addr PASSES =1 ERRORS =1 SUSPECT=SIMM U0801 0>MESSAGE=Memory compare error addr 00000000.007f8080 55555555.557fd5d5 15151515.15151505 Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-18...
Page 43: Bypassing Post
Keyboard LED Patterns TABLE 3–2 Caps Lock Compose Scroll Lock Num Lock Meaning of Pattern System motherboard CPU module 0 CPU module 1 No memory detected Memory bank 0 Memory bank 1 Memory bank 2 Memory bank 3 NVRAM Bypassing POST POST can be disabled and thereby bypassed.
Page 44: Additional Keyboard Control Commands
To initialize the motherboard POST: 1. Power off the system unit. 2. At the keyboard, simultaneously press and hold the Stop and D keys and press the power-on key. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-20...
Page 45 Note - Video output is disabled while POST is initialized. Note - If the POST output results are to be viewed, a tip connection must be set up. See Section 3.2.1 “Setting Up a Tip Connection” on page 3-2. 3. Verify the keyboard LEDs light to conﬁrm the system is in the POST mode and the keyboard Caps Lock key LED ﬂashes on and off to indicate the system has enabled POST.
Page 46 Sun Ultra 60 Service Manual ♦ March 1999, Revision A 3-22...
Page 47: Troubleshooting Procedures
CHAPTER Troubleshooting Procedures This chapter describes how to troubleshoot possible hardware problems and includes suggested corrective actions. This chapter contains the following topics: 4 Section 4.1 “Power-On Failure” on page 4-1 4 Section 4.2 “Video Output Failure” on page 4-2 4 Section 4.3 “Disk Drive or CD-ROM Drive Failure”...
Page 48: Video Output Failure
CPU module is properly seated, the system monitor or the system graphics card may be defective. Replace the monitor or the graphics card. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 49: Disk Drive Or Cd-Rom Drive Failure
Disk Drive or CD-ROM Drive Failure This section provides hard drive and CD-ROM drive failure symptoms and suggested actions. Symptom A hard drive read, write, or parity error is reported by the operating system or customer application. A CD-ROM drive read error or parity error is reported by the operating system or customer application.
Page 50: Power Supply Test
Power supply connectors J2901 through J2903 must remain connected to the motherboard. a. With the negative probe of the DVM placed on a connector ground (Gnd) pin, position the positive probe on each power pin. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 51 b. Verify voltage and signal availability as listed in Table 4–2, Table 4–3, and Table 4–4. 6. If any power pin signal is not present with the power supply active and properly connected to the motherboard, replace the power supply. Figure 4–1 Power Supply Connector J2901 Power Supply Connector J2901 Pin Description...
Page 52: Dimm Failure
DIMM location (U number) as part of a memory error message. In this situation, the only available information is a physical memory address and failing byte (or bit). Table 4–5 lists physical memory addresses to locate a defective DIMM. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 53: Openboot Prom On-Board Diagnostics
DIMM Physical Memory Address TABLE 4–5 DIMM Slot DIMM Pair (non-interleave) U0701 00000000 - 0fffffff U0702 U0703 10000000 - 1fffffff U0704 U0801 20000000 - 2fffffff U0802 U0803 30000000 - 3fffffff U0804 U0901 80000000 - 8fffffff U0902 U0903 90000000 - 9fffffff U0904 U1001 a0000000 - afffffff...
Page 54: Watch-Clock
-- Using Onboard Transceiver - Link Up. passed Using Onboard Transceiver - Link Up. Looking for Ethernet Packets. ‘.’ is a Good Packet. ‘X’ is a Bad Packet. Type any key to stop. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 55: Probe-Scsi And Probe-Scsi-All
watch-net Output Message CODE EXAMPLE 4–3 {0} ok watch-net Hme register test --- succeeded. Internal loopback test -- succeeded. Transceiver check -- Using Onboard Transceiver - Link Up. passed Using Onboard Transceiver - Link Up. Looking for Ethernet Packets. ‘.’ is a Good Packet. ‘X’...
Page 56: Test Alias Name, Device Path, -All
Tests diskette drive response to A formatted diskette must be test floppy commands. inserted into the diskette drive. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-10...
Page 57: Upa Graphics Card
Selected OBP On-Board Diagnostic Tests TABLE 4–6 (continued) Type of Test Description Preparation Performs internal/external An Ethernet cable must be attached test net loopback test of the system to the system and to an Ethernet auto-selected Ethernet interface. tap or hub or the external loopback test fails.
Page 58: Openboot Diagnostics
= false OpenBoot Diagnostics The OpenBoot diagnostics (OBDiags) is a menu-driven set of diagnostics that veriﬁes: 4 PCI/Cheerio 4 Ebus DMA/TCR registers 4 Ethernet Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-12...
Page 59: All Above
4 Keyboard 4 Mouse 4 Floppy 4 Serial port A 4 Serial port B 4 NVRAM 4 SCSI 4 All above OBDiags perform root-cause failure analysis on the referenced devices by testing internal registers, conﬁrming subsystem integrity, and verifying device functionality. To initilize the OBDiags menu: 1.
Page 60 4 Section 4.7.9 “Serial Port B” on page 4-19 4 Section 4.7.10 “NVRAM” on page 4-20 4 Section 4.7.11 “Audio” on page 4-20 4 Section 4.7.12 “SCSI” on page 4-21 Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-14...
Page 61: Pci/Cheerio
4 Section 4.7.13 “All Above” on page 4-21 4.7.1 PCI/Cheerio The PCI/Cheerio diagnostic performs the following: 1. vendor_ID_test – Veriﬁes the Cheerio ASIC vender ID is 108e. 2. device_ID_test – Veriﬁes the Cheerio ASIC device ID is 1000. 3. mixmode_read – Veriﬁes the PCI conﬁguration space is accessible as half-word bytes by reading the EBus2 vender ID address.
Page 62: Ethernet
6. 100_mb_twister_loopback_test – Forces the twisted-pair transceiver into loopback mode. Code Example 4–14 identiﬁes the Ethernet output message. Ethernet Output Message CODE EXAMPLE 4–14 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 2 TEST=’ethernet_test’ (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-16...
Page 63: Keyboard
(Continuation) SUBTEST=’my_channel_reset’ SUBTEST=’hme_reg_test’ SUBTEST=’global_reg1_test’ SUBTEST=’global_reg2_test’ SUBTEST=’bmac_xif_reg_test’ SUBTEST=’bmac_tx_reg_test’ SUBTEST=’mif_reg_test’ SUBTEST=’mac_internal_loopback_test’ SUBTEST=’10mb_xcvr_loopback_test’ SUBTEST=’100mb_phy_loopback_test’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 4.7.4 Keyboard The keyboard diagnostic consists of an external and internal loopback. The external loopback requires a passive loopback connector. The internal loopback veriﬁes the keyboard port by transmitting and receiving 128 characters.
Page 64: Floppy
128 characters and checks the transaction validity. The following baud rates are tested in asynchronous mode: 460800, 307200, 230400, 153600, 76800, 57600, 38400, 19200, 9600, 4800, 2400, and 800. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-18...
Page 65: Serial Port B
Code Example 4–19 identiﬁes the serial port A output message when serial port A is being used for the tip connection. Code Example 4–20 identiﬁes the serial port A output message. Serial Port A Output Message with TIP Line Installed CODE EXAMPLE 4–19 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===>...
Page 66: Nvram
The audio diagnostic performs the following: 1. cs4231_test – Veriﬁes the cs4231 internal registers. 2. Line-in to line-out external loopback. 3. Microphone to headphone external loopback. Code Example 4–23 identiﬁes the audio output message. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-20...
Page 67: Scsi
Audio Output Message CODE EXAMPLE 4–23 Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 10 TEST=’audio_test’ SUBTEST=’cs4231_test’ Codec_ID=’8a’ Version_ID=’a0’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 4.7.12 SCSI The SCSI diagnostic validates both the SCSI chip and the SCSI bus subsystem. Code Example 4–24 identiﬁes the SCSI output message.
Page 68 ‘UART A in use as console - Test not run.’ TEST=’uartb_test’ BAUDRATE=’1200’ BAUDRATE=’1800’ BAUDRATE=’2400’ BAUDRATE=’4800’ BAUDRATE=’9600’ BAUDRATE=’19200’ BAUDRATE=’38400’ BAUDRATE=’57600’ BAUDRATE=’76800’ BAUDRATE=’115200’ BAUDRATE=’153600’ BAUDRATE=’230400’ BAUDRATE=’307200’ BAUDRATE=’460800’ TEST=’nvram_test’ SUBTEST=’write/read_patterns’ SUBTEST=’write/read_inverted_patterns’ (continued) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-22...
Page 69 (Continuation) TEST=’audio_test’ SUBTEST=’cs4231_test’ Codec_ID=’8a’ Version_ID=’a0’ TEST=’selftest’ Enter (0-12 tests, 13 -Quit, 14 -Menu) ===> 4-23 Troubleshooting Procedures...
Page 70 Sun Ultra 60 Service Manual ♦ March 1999, Revision A 4-24...
Page 71: Safety And Tool Requirements
CHAPTER Safety and Tool Requirements This chapter describes the safety requirements, symbols, safety precautions, and tools required. This chapter contains the following topics: 4 Section 5.1 “Safety Requirements” on page 5-1 4 Section 5.2 “Symbols” on page 5-2 4 Section 5.3 “Safety Precautions” on page 5-2 4 Section 5.4 “Tools Required”...
Page 72: Symbols
To ensure reliable operation of the Sun product and to protect it from overheating, openings in the equipment must not be blocked or covered. A Sun product should never be placed near a radiator or hot air register. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 73: Power Cord Connection
5.3.3 Power Cord Connection Caution - Not all power cords have the same current ratings. Household extension cords do not have overload protection. Do not use household extension cords with the Sun product. Caution - The power switch of this product functions as a standby type device only. The power cord serves as the primary disconnect device for the system.
Page 74 4 Inner side (metal part) of the system unit cover 4 Sun ESD mat, part number 250-1088 (can be purchased through your Sun sales representative) 4 Disposable ESD mat; shipped with replacement parts or optional system features Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 75: Power On And Off
4 Section 6.2 “Powering Off the System Unit” on page 6-3 Note - The actions required to remove and replace the major subassemblies are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. Powering On the System Unit To power on the system unit: 1.
Page 76 4. Verify the following: a. The front panel LED is on. b. The system fans are spinning. Figure 6–1 System Unit Power-On (Front Panel) Figure 6–2 Sun Type-5 Keyboard Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 77: Powering Off The System Unit
Powering Off the System Unit Caution - Prior to turning off the system unit power, exit from the operating system. Failure to do so may result in data loss. Caution - Wear an antistatic wrist strap and use an ESD-protected mat when handling components.
Page 78 6. Disconnect cables to any peripheral equipment. Figure 6–3 System Unit Power-Off (Front Panel) Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 79: Internal Access
4 Section 7.3 “Replacing the Side Access Cover” on page 7-5 Note - Removal and replacement of selected system unit components are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. Removing the Side Access Cover 1.
Page 80 Grasp the side panel and pull it toward the back of the system. c. Disengage the side access cover from the chassis hooks. d. Grasping the access cover sides, lift the side access cover upward and remove. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 81: Attaching The Wrist Strap
Figure 7–2 Removing the Side Access Cover Attaching the Wrist Strap Caution - Wear an antistatic wrist strap and use an ESD-protected mat when handling components. When servicing or removing system unit components, attach an ESD strap to your wrist, then to a metal area on the chassis, and then disconnect the power cord from the system unit and the wall receptacle.
Page 82 2. Peel the liner from the copper foil at the opposite end of the wrist strap. 3. Attach the copper end of the wrist strap to the chassis (Figure 7–3). 4. Disconnect the AC power cord. Figure 7–3 Attaching the Wrist Strap to the Chassis Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 83: Replacing The Side Access Cover
Replacing the Side Access Cover 1. Position the side access cover (Figure 7–4). 2. Engage the side access cover and the chassis hooks. Push the access cover towards the system unit front. 3. Connect the lock block (Figure 7–1). 4. Position the system unit in the operating position. Figure 7–4 Replacing the Side Access Cover Internal Access...
Page 84 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 85: Major Subassemblies
4 Section 8.10 “Shroud Assembly” on page 8-26 Note - The actions required to remove and replace the major subassemblies are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. Power Supply...
Page 86: Removing The Power Supply
Disconnect the peripheral cable connector from the power supply (not illustrated). d. Disconnect the power supply cables from the motherboard (not illustrated). e. Remove the power supply from the chassis. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 87: Replacing The Power Supply
Figure 8–1 Removing and Replacing the Power Supply (Part 1 of 2) 8.1.2 Replacing the Power Supply Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1.
Page 88 Tighten the captive screws in a clockwise order beginning with the upper right captive screw. 2. Connect the AC power cord. 3. Detach the wrist strap. 4. Replace the side access cover. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 89: Pci Fan Assembly
See Section 7.3 “Replacing the Side Access Cover” on page 7-5. 5. Power on the system unit. See Section 6.1 “Powering On the System Unit” on page 6-1. PCI Fan Assembly To remove and replace the PCI fan assembly, proceed as follows. 8.2.1 Removing the PCI Fan Assembly 1.
Page 90: Replacing The Pci Fan Assembly
Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 91: Hard Drive Bay With Scsi Assembly
1. Position the PCI fan over the speaker assembly (Figure 8–3). 2. Connect the PCI fan as follows: a. Position the studs into the chassis slots and engage. b. Press the locking snap and engage. c. Connect the power harness to the motherboard. d.
Page 92 SCSI drive bay to the chassis. h. Feed the SCSI cable under the PCI fan bracket while pulling up in Step g. i. Slide the SCSI drive bay out of the chassis. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 93: Replacing The Scsi Drive Bay
Figure 8–4 Removing and Replacing the SCSI Drive Bay 8.3.2 Replacing the SCSI Drive Bay Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Major Subassemblies...
Page 94: Cable Assemblies
See Section 6.1 “Powering On the System Unit” on page 6-1. Cable Assemblies To remove and replace the peripheral power cable assembly and the diskette drive cable assembly, proceed as follows. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-10...
Page 95: Removing The Peripheral Power Cable Assembly
Note - Unconnected peripheral power cables should remain clipped inside the main chassis. 8.4.1 Removing the Peripheral Power Cable Assembly 1. Power off the system unit. See Section 6.2 “Powering Off the System Unit” on page 6-3. 2. Remove the side access cover. See Section 7.1 “Removing the Side Access Cover”...
Page 96: Replacing The Peripheral Power Cable Assembly
1. Power off the system unit. See Section 6.2 “Powering Off the System Unit” on page 6-3. 2. Remove the side access cover. See Section 7.1 “Removing the Side Access Cover” on page 7-1. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-12...
Page 97: Replacing The Diskette Drive Cable Assembly
Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 3. Attach the wrist strap. See Section 7.2 “Attaching the Wrist Strap” on page 7-3. 4.
Page 98: Emi Filler Panels
Remove the front bezel. b. Use your ﬁnger to pop the EMI ﬁller panel from the bezel. 3. Remove the drive tray drive. See Section 9.2.1 “Removing the RMA” on page 9-4. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-14...
Page 99 4. Use your ﬁngers to pop the drive tray EMI ﬁller panel from the drive tray (Figure 8–6). Figure 8–5 Removing and Replacing the Bezel EMI Filler Panel Figure 8–6 Removing and Replacing the RMA EMI Filler Panel 8-15 Major Subassemblies...
Page 100: Replacing An Emi Filler Panel
2. Lay the system unit in the service position. 3. Using a number 2 Phillips-head screwdriver, loosen the screw securing the foot to the chassis (Figure 8–7). 4. Remove the foot. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-16...
Page 101: Replacing The Foot
Figure 8–7 Removing and Replacing the Chassis Foot 8.6.2 Replacing the Foot 1. Position the foot (Figure 8–7). 2. Using a number 2 Phillips-head screwdriver, tighten the screw securing the foot to the chassis. 3. Position the system unit in the operating position. 4.
Page 102: Speaker Assembly
5. Disconnect the speaker cable from the motherboard (Figure 8–8). 6. Using a number 2 Phillips-head screwdriver, remove the screw securing the speaker assembly to the chassis. 7. Remove the speaker assembly. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-18...
Page 103: Replacing The Speaker Assembly
Figure 8–8 Removing and Replacing the Speaker Assembly 8.7.2 Replacing the Speaker Assembly Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1.
Page 104: Dc Switch Assembly
ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 3. Attach the wrist strap. See Section 7.2 “Attaching the Wrist Strap” on page 7-3. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-20...
Page 105: Replacing The Dc Switch Assembly
4. Remove the bezel. 5. Using a number 2 Phillips-head screwdriver, remove the four screws securing the front panel to the chassis. Remove the front panel. 6. Remove the SCSI drive bay. See Section 8.3.1 “Removing the SCSI Drive Bay” on page 8-7. 7.
Page 106 See Section 8.2.2 “Replacing the PCI Fan Assembly” on page 8-6 4. Position the front panel. Using a number 2 Phillips-head screwdriver, replace the four screws securing the front panel to the chassis. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-22...
Page 107 Figure 8–9 Removing and Replacing the DC Switch Assembly 5. Replace the bezel. 6. Connect the AC power cord. 7. Detach the wrist strap. 8. Replace the side access cover. See Section 7.3 “Replacing the Side Access Cover” on page 7-5. 9.
Page 108: Cpu Fan Assembly
Using a number 2 Phillips-head screwdriver, press the snap catch to release the fan assembly from the shroud assembly. c. Using the metal handle, lift the fan assembly from the shroud assembly. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-24...
Page 109: Replacing The Cpu Fan Assembly
Figure 8–10 Removing and Replacing the CPU Fan Assembly 8.9.2 Replacing the CPU Fan Assembly Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1.
Page 110: Shroud Assembly
ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 3. Attach the wrist strap. See Section 7.3 “Replacing the Side Access Cover” on page 7-5. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-26...
Page 111 4. Remove the CPU modules. See Section 10.1.1 “Removing the CPU Module” on page 10-2. 5. Disconnect the shroud assembly as follows (Figure 8–11): a. Disconnect the CPU fan assembly power cable from the motherboard connector J2601. b. Using a number 2 Phillips-head screwdriver, loosen the captive screws securing the shroud assembly to the motherboard until the screws pop up.
Page 112: Replacing The Shroud Assembly
ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1. Position the shroud assembly onto the motherboard. 2. Connect the shroud assembly as follows (Figure 8–11): Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-28...
Page 113 a. Lower the locking lever to lock the shroud assembly to the motherboard. b. Using a number 2 Phillips-head screwdriver, tighten the captive screws securing the shroud assembly to the motherboard. c. Connect the power cable to the motherboard connector J2601. 3.
Page 114 Sun Ultra 60 Service Manual ♦ March 1999, Revision A 8-30...
Page 115: Storage Devices
4 Section 9.2 “Removable Media Assembly Drive” on page 9-4 Note - The actions required to remove and replace the major subassemblies are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. Hard Drive To remove and replace a hard drive, proceed as follows.
Page 116 Extend the hard drive handle to disconnect the hard drive from the system unit. c. Holding the drive handle, remove the hard drive from the drive bay. 5. Place the hard drive on an antistatic mat. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 117: Replacing A Hard Drive
Figure 9–1 Removing and Replacing a Hard Drive 9.1.2 Replacing a Hard Drive Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1.
Page 118: Removable Media Assembly Drive
1. Power off the system unit. See Section 6.2 “Powering Off the System Unit” on page 6-3. 2. Remove the side access cover. See Section 7.1 “Removing the Side Access Cover” on page 7-1. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 119 Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 3. Attach the wrist strap. See Section 7.2 “Attaching the Wrist Strap” on page 7-3. 4.
Page 120: Removing The Cd-Rom Drive Or Any X-Option Tape Drive
Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 121: Replacing The Cd-Rom Drive Or Any X-Option Tape Drive
1. Position the RMA on a ﬂat surface so that the CD-ROM drive or tape drive is ﬂat (Figure 9–3). Figure 9–3 Removing and Replacing a RMA Drive (Part 2 of 2) 2. Using a number 2 Phillips-head screwdriver, remove the four screws securing the CD-ROM drive or tape drive to the RMA.
Page 122: Removing The Diskette Drive
Route the diskette drive cable through both plastic spring clips installed adjacent to the hard disk drive bay. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 123: Replacing The Rma
Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1. Position the diskette drive into the RMA (Figure 9–3). 2.
Page 124 Sun Ultra 60 Service Manual ♦ March 1999, Revision A 9-10...
Page 125: Motherboard And Component Replacement
4 Section 10.7 “Motherboard” on page 10-21 Note - The actions required to remove and replace the major subassemblies are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. 10.1 CPU Module To remove and replace the CPU module, proceed as follows.
Page 126: Removing The Cpu Module
CPU module upward and to the side to approximately 135 degrees. b. Lift the CPU module upward until it clears the system unit chassis. 5. Place the CPU module on an antistatic mat. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-2...
Page 127: Replacing The Cpu Module
Figure 10–1 Removing and Replacing the CPU Module 10.1.2 Replacing the CPU Module Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 1.
Page 128: Nvram/Tod
1. Power off the system unit. See Section 6.2 “Powering Off the System Unit” on page 6-3. 2. Remove the side access cover. See Section 7.1 “Removing the Side Access Cover” on page 7-1. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-4...
Page 129 Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 3. Attach a wrist strap. See Section 7.2 “Attaching the Wrist Strap” on page 7-3. 4.
Page 130: Replacing The Nvram/Tod
Position the NVRAM/TOD and carrier on the motherboard. b. Carefully insert the NVRAM/TOD and carrier into the socket. Note - The carrier is keyed so the NVRAM/TOD can be installed only one way. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-6...
Page 131: Pci Card
c. Push the NVRAM/TOD into the carrier until properly seated. 2. Replace the power supply. See Section 8.1.2 “Replacing the Power Supply” on page 8-3. 3. Connect the AC power cord. 4. Detach the wrist strap. 5. Replace the side access cover. See Section 7.3 “Replacing the Side Access Cover”...
Page 132 At the two upper corners of the PCI card, pull the card straight up from the slot. c. Remove the PCI card. 6. Place the PCI card on an antistatic mat. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-8...
Page 133: Replacing A Pci Card
Figure 10–3 Removing and Replacing a PCI Card 10.3.2 Replacing a PCI Card Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. Note - Read the PCI card product guide for information about jumper or switch settings, slot requirements, and required tools.
Page 134: Upa Graphics Card
1. Power off the system unit. See Section 6.2 “Powering Off the System Unit” on page 6-3. 2. Disconnect the video cable from the graphics card video connector. 3. Remove the side access cover. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-10...
Page 135 See Section 7.1 “Removing the Side Access Cover” on page 7-1. Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 4.
Page 136: Replacing The Upa Graphics Card
1. Replace the UPA graphics card as follows (Figure 10–4): a. Position the UPA graphics card into the chassis. b. Guide the UPA graphics card back panel into the chassis backpanel. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-12...
Page 137: Dimm
c. Lower the UPA graphics card connector so that it touches its associated UPA card slot on the motherboard. Caution - Avoid damaging the connector by not applying force to one end or one side of the board. Note - The UPA graphics card connector is a double-row connector that requires two levels of insertion.
Page 138: Removing A Dimm
Always wear a grounding strap when handling a DIMM. 1. Power off the system unit. See Section 6.2 “Powering Off the System Unit” on page 6-3. 2. Remove the side access cover. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-14...
Page 139 See Section 7.1 “Removing the Side Access Cover” on page 7-1. Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 3.
Page 140: Replacing A Dimm
Caution - DIMMs are made of electronic components that are extremely sensitive to static electricity. Ordinary amounts of static electricity from clothing or work environment can destroy the DIMM. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-16...
Page 141 Caution - Do not remove any DIMM from the antistatic container until ready to install it on the motherboard. Handle DIMMs only by their edges. Do not touch DIMM components or metal parts. Always wear a grounding strap when handling DIMMs.
Page 142: Audio Card
ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 4. Attach the wrist strap. See Section 7.2 “Attaching the Wrist Strap” on page 7-3. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-18...
Page 143 5. Remove the audio card as follows (Figure 10–6): a. Using a Phillips-head screwdriver, remove the screw securing the audio card bracket tab to the system unit chassis. Caution - Avoid damaging the connector by not applying force to one end or one side of the board.
Page 144: Replacing The Audio Card
1. Replace the audio module as follows (Figure 10–6): a. Position the audio module into the chassis. b. Lower the audio module connector so that it touches its associated card slot on the motherboard. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-20...
Page 145: Motherboard
c. At the two upper corners of the card, push the card straight down into the slot until the card is fully seated. d. Using a Phillips-head screwdriver, replace the screw securing the audio module to the system unit chassis. e.
Page 146: Removing A Motherboard
Unlatch the shroud from the PCI fan bracket hinge clip. c. Disconnect the following: Peripheral cable. See Section 8.4.1 “Removing the Peripheral Power Cable Assembly” on page 8-11. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-22...
Page 147 Note - Unconnected peripheral power cables should remain clipped inside the main chassis. External cables. DC power cable. Internal SCSI cable assembly. PCI fan assembly power connector. d. Using a number 2 Phillips-head screwdriver, proceed as follows: Remove the three screws securing the motherboard to the chassis (Figure 10–7).
Page 148 4 Shroud assembly. See Section 8.10.1 “Removing the Shroud Assembly” on page 8-26. Figure 10–7 Removing and Replacing the Motherboard (Part 1 of 2) Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-24...
Page 149: Replacing A Motherboard
Figure 10–8 Removing and Replacing the Motherboard (Part 2 of 2) 10.7.2 Replacing a Motherboard Caution - Use proper ESD grounding techniques when handling components. Wear an antistatic wrist strap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface. 10-25 Motherboard and Component Replacement...
Page 150 2 + 3 J2605 RS-232 RS-423 2 + 3 Caution - Handle the motherboard by the handle, back panel, or the edges only. 2. Place the motherboard on an antistatic mat. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-26...
Page 151 Figure 10–9 Location of the Motherboard Serial Port Jumpers Note - Motherboard jumpers are identiﬁed with part numbers. Jumper pins are located immediately adjacent to the part number. Pin 1 is marked with an asterisk in any of the positions shown (Figure 10–10). Ensure that the serial port jumpers are set correctly.
Page 152 Peripheral cable. See Section 8.4.2 “Replacing the Peripheral Power Cable Assembly” on page 8-12. Note - Ensure that the peripheral power cable is routed through the cable routing clips. External cables. DC power cable. Internal SCSI cable assembly. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-28...
Page 153 Note - Ensure that the SCSI cable is routed through both plastic spring clips installed adjacent to the drive bay. PCI fan assembly power connector. e. Latch the shroud to the PCI fan bracket hinge clip. f. Replace the following to the motherboard: PCI card(s).
Page 154 Note - The Solaris operating environment Power Management software uses the #power-cycles NVRAM variable to control the frequency of automatic system shutdown if automatic shutdown is enabled. Sun Ultra 60 Service Manual ♦ March 1999, Revision A 10-30...
Page 155: Illustrated Parts List
Note - The actions required to remove and replace the major subassemblies are also illustrated with photographs and audio/visual instructions on the Sun Ultra 60 ShowMe How Multimedia Documentation, part number 704-5886. Numerical references illustrated in Figure 11-1 correlate to the numerical references listed in Table 11-1.
Page 156 Figure 11–1 System Unit Exploded View Sun Ultra 60 Service Manual ♦ March 1999, Revision A 11-2...
Page 157 System Unit Replaceable Components TABLE 11–1 Numerical Component Description Reference 2.1-Gbyte SCSI assembly Hard disk drive 4.2-Gbyte SCSI assembly Hard disk drive 9.1-Gbyte SCSI assembly Hard disk drive Hard drive bay with SCSI Mechanical hard drive housing PCI fan assembly PCI fan CD-ROM drive 12X-speed CD-ROM drive...
Page 158 24-inch high-deﬁnition television monitor illustrated 24-inch HDTV monitor 24-inch high-deﬁnition television monitor illustrated (logo-less) SCSI cable 68-pin external SCSI cable (2-m) illustrated SCSI cable 68-pin external SCSI cable (.8-m) illustrated Sun Ultra 60 Service Manual ♦ March 1999, Revision A 11-4...
Page 159: Product Speciﬁcations
APPENDIX Product Speciﬁcations This appendix provides product speciﬁcations for the Ultra 60 computer. 4 Physical speciﬁcations 4 Electrical speciﬁcations 4 Environmental requirements Physical Speciﬁcations Table A–1 lists physical speciﬁcations for the system unit. System Unit Physical Speciﬁcations TABLE A–1 Speciﬁcation U.S.A.
Page 160 F (-20 to 60 Humidity 20 to 80% noncondensing at 95% noncondensing at 140 F (35 Altitude 10,000 ft (3 km) 40,000 ft (12 km) Maximum dwells at extremes 16 hr 16 hr Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 161 Environmental Requirements TABLE A–3 (continued) Product Speciﬁcations...
Page 162 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 163: Signal Descriptions
APPENDIX Signal Descriptions This appendix describes the Ultra 60 motherboard connector signals and pin assignments. 4 Section B.1 “Keyboard/Mouse and Serial Ports A and B” on page 11-1 4 Section B.2 “Twisted-Pair Ethernet Connector” on page 11-6 4 Section B.3 “UltraSCSI Connector” on page 11-7 4 Section B.4 “Audio Connectors”...
Page 164: Keyboard/Mouse Connector
The serial port A and B connectors are DB-25 type connectors located on the motherboard back panel. Figure B–2 illustrates the serial port A and serial port B connector conﬁguration and Table B–2 lists the connector pin assignments. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 165 Figure B–2 Serial Port A and B Connector Pin Conﬁguration Serial Port A and B Connector Pin Assignments TABLE B–2 Mnemonic Signal Name Description Not connected None Transmit Data Used by the data terminal equipment (DTE) to transmit data to the data circuit equipment (DCE).
Page 166 Used by the DCE to indicate it is receiving a suitable signal from the communications channel. Not connected None. Not connected None. Not connected None. Not connected None. Not connected None. Not connected None. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 167 Serial Port A and B Connector Pin Assignments TABLE B–2 (continued) Mnemonic Signal Name Description TRXC Transmit Clock Used by the DCE to provide timing information to the DTE. The DTE provides data on TXD in which the transition of the bit corresponds to the rising edge of the clock.
Page 168: Twisted-Pair Ethernet Connector
Transmit data + tpe1 Transmit data - tpe2 Receive data + Common mode termination Termination Common mode termination Termination tpe3 Receive data - Common mode termination Termination Common mode termination Termination Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 169: Ultrascsi Connector
UltraSCSI Connector The Ultra small computer system interface (UltraSCSI) connector is located on the motherboard back panel. Figure B–4 illustrates the UltraSCSI connector conﬁguration and Table B–4 lists the connector pin assignments. Figure B–4 UltraSCSI Connector Pin Conﬁguration UltraSCSI Connector Pin Assignments TABLE B–4 Signal Name Description...
Page 170 Description Ground Ground Ground Ground Termpower Termpower Termpower Termpower Not used Undeﬁned Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Dat<12>_ Data 12 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 171 UltraSCSI Connector Pin Assignments TABLE B–4 (continued) Signal Name Description Dat<13>_ Data 13 Dat<14>_ Data 14 Dat<15>_ Data 15 Par1 l_ Parity 1 Dat<0>_ Data 0 Dat<1>_ Data 1 Dat<2>_ Data 2 Dat<3>_ Data 3 Dat<4>_ Data 4 Dat<5>_ Data 5 Dat<6>_ Data 6 Dat<7>_...
Page 172: Audio Connectors
The audio connectors are located on the audio card. These connectors use EIA standard 3.5-mm/0.125-inch jacks. Figure B–5 illustrates each audio connector conﬁguration and Table B–5 lists each connector line assignment. Figure B–5 Audio Connector Conﬁguration Sun Ultra 60 Service Manual ♦ March 1999, Revision A B-10...
Page 173: Parallel Port Connector
Audio Connector Line Assignment TABLE B–5 Component Headphones Line Out Line In Microphone Left channel Left channel Left channel Left channel Ring (center) Right channel Right channel Right channel Right channel Shield Ground Ground Ground Ground Parallel Port Connector The parallel port connector is a DB-25 type connector located on the motherboard back panel.
Page 174 During reverse channel transfer, set low to indicate host can receive peripheral device data and then set high to acknowledge receipt of peripheral data. Sun Ultra 60 Service Manual ♦ March 1999, Revision A B-12...
Page 175: Media Independent Interface Connector
Parallel Port Connector Pin Assignments TABLE B–6 (continued) Mnemonic Signal Name Description ERROR_L Error Low Set low by the peripheral device to indicate an error during forward channel transfer. In reverse channel transfer, set low to indicate peripheral device has data ready to send to the host.
Page 176 Tx er Transmit error Tx clk Transmit clock Tx en Transmit data enable Txd0 Transmit data 0 Txd1 Transmit data 1 Txd2 Transmit data 2 Txd3 Transmit data 3 Sun Ultra 60 Service Manual ♦ March 1999, Revision A B-14...
Page 177 MII Connector Pin Assignments TABLE B–7 (continued) Signal Name Description Collision detected Carrier sense Power Power Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Power B-15 Signal Descriptions...
Page 178: Upa Graphics Card Connector
UPA Graphics Card Connector Pin Assignments TABLE B–8 Signal Name Description Green Blue Serial Read Serial Read Vert Sync Vertical Sync Sense <0> Sense <0> Ground Comp Sync Composite Sync Horiz Sync Horizontal Sync Sun Ultra 60 Service Manual ♦ March 1999, Revision A B-16...
Page 179 UPA Graphics Card Connector Pin Assignments TABLE B–8 (continued) Signal Name Description Serial Write Serial Write Sense <1> Sense <1> Sense <2> Sense <2> Ground B-17 Signal Descriptions...
Page 180 Sun Ultra 60 Service Manual ♦ March 1999, Revision A B-18...
Page 181 APPENDIX Functional Description This section provides a functional description for the Ultra 60 computer (system unit). 4 Section C.1 “System Unit” on page 11-1 4 Section C.2 “Power Supply” on page 11-33 4 Section C.3 “Motherboard” on page 11-39 4 Section C.4 “Jumper Descriptions” on page 11-41 4 Section C.5 “Enclosure”...
Page 182 4 Section C.1.11 “Audio Card and Connector” on page C-24 4 Section C.1.12 “SCSI” on page C-26 4 Section C.1.13 “ASICs” on page C-30 4 Section C.1.14 “SuperIO” on page C-33 Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 183: Functional Description
Figure C–1 System Unit Functional Block Diagram Functional Description...
Page 184: Upa
UPA address and data buses are connected between the UPA and the UPA clients. UPA Port Identiﬁcation Assignments TABLE C–1 UPA Slot Number UPA Port ID <4:0> CPU module slot 0 CPU module slot 1 U2P ASIC 0x1F Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 185: Pci Bus
Figure C–2 UPA Address and Data Buses Functional Block Diagram C.1.2 PCI Bus The peripheral component interconnect (PCI) bus is a high-performance 32-bit or 64-bit bus with multiplexed address and data lines. The PCI bus provides electrical interconnect between highly integrated peripheral controller components, peripheral add-on devices, and the processor/memory system.
Page 186: Ultrasparc Ii Processor
UltraSPARC II processor characteristics and associated features include: 4 SPARC-V9 architecture compliant 4 Binary compatible with all SPARC application code 4 Multimedia capable visual instruction set (VIS) Multiprocessing support Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 187: Memory System
Glueless four-processor connection with minimum latency 4 Snooping cache coherency 4 Four-way superscalar design with nine execution units; four integer execution units 4 Three ﬂoating-point execution units 4 Two graphics execution units 4 Selectable little- or big-endian byte ordering 4 64-bit address pointers 4 16-Kbyte non-blocking data cache 4 16-Kbyte instruction cache;...
Page 188 Failure to populate a DIMM bank with DIMMs of equal capacity will result in inefﬁcient use of memory resource or system failure. Note - For best system performance, install four identical DIMMs. Sun Ultra 60 Service Manual ♦ March 1999, Revision A...
Page 189 Figure C–4 Memory Module Functional Block Diagram Functional Description...
Page 190 16-Mbyte, 32-Mbyte, 64-Mbyte, and 128-Mbyte. The minimum memory capacity is 64 Mbytes (four 16-Mbyte DIMMs). The maximum memory capacity is 2 Gbytes (sixteen 128-Mbyte DIMMs). Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-10...
Page 191 A block of data (64 bytes) always comes from one bank of DIMMs. An error code containing the address of where a failure occurred, as well as the associated syndrome, is logged when an ECC error occurs. There are a total of four DIMM banks in the system unit. Table C–2 matches DIMM banks to U numbers and Table C–3 list physical address maps to DIMM banks.
Page 192: Graphics And Imaging
4 New RAMDAC support 4 Single-buffered high-resolution (2.5 Mpixels) supports the following screen resolutions (DBZ graphics card only): 1920 ¥ 1360 landscape mode (HDTV) 1280 ¥ 2048 portrait mode (medical) Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-12...
Page 193: Peripherals
4 Buffer B addressing for stateless (dumb frame buffer) and video accesses (DBZ graphics card only) C.1.5.2 Graphics Card Performance The single-buffer and DBZ graphics cards have identical window system performance characteristics, 2D graphics, and imaging and video applications. The DBZ graphics card also provides additional performance for 3D graphics and animation applications through double-buffer and Z-buffer support.
Page 194 When active, INDEX indicates the beginning of each track. An active pulse is sent for each disk rotation. DRIVE_SELECT When set true, DRIVE_SELECT enables the drive to respond to other input signals. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-14...
Page 195 Diskette Drive Signals and Functions TABLE C–4 (continued) Signal Name Function MOTOR_ENABLE When set low, MOTOR_ENABLE initiates the spindle motor rotation. DIRECTION When active high, DIRECTION indicates movement of the magnetic head assembly toward the outer cylinders. When active low, indicates movement of the magnetic head assembly toward the inner cylinders.
Page 196: Other Rma Storage Device X-Options
The keyboard and mouse, diskette, and parallel port interfaces are managed by the SuperIO component. Figure C–6 shows keyboard, diskette, and parallel port interface functionality. For a brief description of the SuperIO, see Section C.1.14 “SuperIO” on page C-33 Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-16...
Page 197 C.1.8.1 Keyboard and Mouse Port The keyboard and mouse are connected to an 8-pin DIN connector, located on the motherboard, and to two serial ports on the SuperIO component. Each serial port on the SuperIO ASIC provides 16-byte FIFO buffering. Data is asynchronously exchanged with the keyboard and mouse at 1200 baud.
Page 198: Electrical Characteristics
2.4 Vdc at a source current of 0.32 mA and a logic low-level signal is no more than 0.4 Vdc at a sink current of 14 mA. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-18...
Page 199: Serial Port
Receivers also operate at nominal 5-Vdc TTL levels and can withstand peak voltage transients between -2 Vdc and 7 Vdc without damage or improper operation. The high-level threshold is less than or equal to 2.0 Vdc and the low-level threshold is at least 0.8 Vdc.
Page 200 -6 V and +6 Vdc. Switching from RS-232 to RS-423 protocol is accomplished by changing jumpers J2604 and J2605. Jumper positions 1 and 2 are for RS-232 and jumper positions 2 and 3 are for RS-423. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-20...
Page 201: Ethernet
The preferred signaling protocol is RS-423. The higher voltages of R-232 make it difﬁcult to switch at the higher baud rates. The maximum rate for RS-232 is approximately 64 Kbaud while the maximum rate for RS-423 is 460.8 Kbaud. The system default is set to RS-232.
Page 202 The Ethernet port supports automatic negotiation. At power up, an on-board transceiver advertises 100BASE-TX in half-duplex mode, which is conﬁgured by the automatic negotiation to the highest common denominator based on the linked partner. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-22...
Page 203 C.1.10.2 External Transceivers The following external transceivers are connected through the MII port: 4 6211 Micro 100BASE-FX FastEthernet transceiver 4 CT4-1030 100BASE-T4 transceiver 4 CFX-107X 100BASE-FX transceiver 4 XF467A MII-to-AUI transceiver C.1.10.3 External Cables The MII port supports a 0.5-meter long, 40-conductor, 20 signal-ground, STP cable. The single-ended impedance of the cable is 68 ohms (+/-10%).
Page 204: Audio Card And Connector
CD-quality music. The audio card supports four jacks of identical type: line in, line out, headphone out, and microphone in. Table C–6 lists the major features of the audio card and Figure C–9 illustrates a functional block diagram. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-24...
Page 205 Audio Card Features TABLE C–6 Figure Feature Description Reference Stereo line level Attenuated by a resistor divider network and then fed into the Line Inputs of the Codec. Stereo microphone input Buffered by a non-inverting operational ampliﬁer (one operational ampliﬁer for the left channel and one operational ampliﬁer for the right channel).
Page 206: Scsi
Audio Card Functional Block Diagram C.1.12 SCSI The system unit implements a small computer system interface (SCSI) Fast-20 (UltraSCSI) parallel interface bus. The UltraSCSI provides the following: 4 Efﬁcient peer-to-peer I/O bus devices. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-26...
Page 207 4 Mechanical, electrical, and timing speciﬁcation deﬁnition that support transfer rates of 20 or 40 Mbytes per second (corresponding to the data path width of an 8-bit, or 16-bit bus, respectively). 4 Peak bandwidth of 40 Mbytes per second (with implemented 16-bit bus width). The internal SCSI bus is terminated at each end.
Page 208 0.8-meter or a 2-meter UltraSCSI-compliant external cable. C.1.12.4 Internal SCSI Subassembly The internal SCSI subassembly consists of two cable assemblies and two SCSI cards. The SCSI subassembly is attached to the motherboard using an insulation Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-28...
Page 209 displacement connector (IDC) receptacle attached to a 80-conductor cable. In addition to the SCSI signals, the 80-conductor cable carries diskette drive and system LED signals to the SCSI backplane card. The IDC receptacle mates with a right-angle plug that is mounted on the motherboard. The 80-conductor cable attaches on the other end to the SCSI backplane card with another IDC connector.
Page 210: Asics
4 Burst transfers operate on a doubleword of data per slice 4 A total of eight two-entry ﬁrst-in-ﬁrst-out (FIFO) devices for read data storage 4 Power-up safe buses (tristated) Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-30...
Page 211 C.1.13.2 The QSC ASIC provides system control. It controls the UPA interconnect between the major system unit components and main memory. The QSC ASIC provides the following: 4 Interconnect packet receive 4 Memory arbiter 4 Non-cached arbiter 4 Memory controller 4 Snoop interface 4 Coherence controller 4 S_register dispatcher...
Page 212 4 Performs PCI bus and miscellaneous interrupt concentration for U2P 4 Controls ﬂash PROM programming, frequency margining, and lab console operation 4 33-MHz operation 4 3.3-Vdc and 5-Vdc supply voltage Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-32...
Page 213: Superio
C.1.14 SuperIO The SuperIO is a commercial, off-the-shelf component that controls the keyboard, diskette, and parallel port interfaces. It contains a DMA-driven diskette controller, two serial port controllers, an IEEE 1284 parallel port interface, and an IDE disk interface (not currently used). The SuperIO drives the various ports directly with some EMI ﬁltering on the keyboard and parallel port signals.
Page 214: Control Signals
4 Set the TOD timer to wake-up at a given time 4 Power switch on front of system Turning the System Unit Off The system unit can be turned off in the following ways: Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-34...
Page 215 4 Type power-off from shell window (this does a graceful shutdown) 4 Halt system and type power-off from the OBP 4 Activate Energy Star 4 Press the keyboard Shift and Power key simultaneously from the OBP 4 Press power switch on front of system unit Note - Energy Star powers off the system only after a period of inactivity and will turn the system back on if set by the user.
Page 216: Pci Cards
PCI Cards (Max Current each Current total Total Power (Vdc) No.) (amps) (amps) <= 60 4.55 18.18 Memory System Table C–13 lists the power estimates for the memory subsystem. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-36...
Page 217: Mass Storage Devices
Memory Subsystem Power Estimate TABLE C–13 Number of DIMMs WC current total [amps] Total Power @5 Vdc [W] 9.33 46.66 Mass Storage Devices Table C–14 lists power estimates for the storage devices Mass Storage Device Power Estimates TABLE C–14 Description 2.5- 3.3- Watt...
Page 218: Built-In Speaker
4 Flash PROM for operating system initialization. The ﬂash PROM is re-programmable through UNIX and OBP utilities. 4 Single LED for status. If LED is lighted, the system unit has power and some functional intelligence through OBP. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-38...
Page 219: Motherboard
Motherboard Figure C–12 illustrates a block diagram of the system unit motherboard. C-39 Functional Description...
Page 220 Figure C–12 System Unit Motherboard Functional Block Diagram Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-40...
Page 221: Jumper Descriptions
Jumper Descriptions Jumper conﬁgurations can be changed by setting jumper switches on the motherboard. The motherboard’s jumpers are preset at the factory. A jumper switch is closed (sometimes referred to as shorted) with the plastic cap inserted over two pins of the jumper. A jumper is open with the plastic cap inserted over one or no pin(s) of the jumper.
Page 222: Serial Port Jumpers
6. Replace the side access cover. See Section 7.3 “Replacing the Side Access Cover” on page 7-5 7. Power on the system unit. See Section 6.1 “Powering On the System Unit” on page 6-1. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-42...
Page 223: Flash Prom Jumpers
Serial Port Jumper Settings TABLE C–16 Jumper Pins 1 + 2 Select Pins 2 + 3 Select Default Jumper on Pins J2604 RS-232 RS-423 2 + 3 J2605 RS-232 RS-423 2 + 3 C.4.2 Flash PROM Jumpers Flash PROM jumpers J2703 and J2704 are for reprogramming speciﬁc code blocks and remote programming of the ﬂash PROM.
Page 224: Enclosure Basics
4 All standard connectors and no splitter cables on rear panel Environmental Compliance The system unit meets or exceeds the speciﬁcations deﬁned by the “Controlled Ofﬁce” classiﬁcation of the 990-1146-03, Rev A document. Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-44...
Page 225: Agency Compliance
Agency Compliance The system unit complies with international and domestic regulatory requirements for safety, ergonomics, EMI, immunity, electrical, and telecommunication. C-45 Functional Description...
Page 226 Sun Ultra 60 Service Manual ♦ March 1999, Revision A C-46...
Page 227: Glossary
Glossary A unique location within computer or peripheral memory. Reference address made to an address is usually for retrieving or storing data. ASIC Application-speciﬁc integrated circuit. Authorized service provider. A term used to identify the process of reading initial software into boot the computer.
Page 228 UPA and the 3DRAM. Also controls graphic draw acceleration. FIFO First-in ﬁrst-out. Flash programmable read-only memory. ﬂash PROM Gigabyte. Gbyte Graphical user interface. Insulation displacement connector. Input/output. Kbyte Kilobyte. Light-emitting diode. Megabyte. Mbyte Sun Ultra 60 Service Manual ♦ March 1999, Revision A Glossary-2...
Page 229 MBps Megabyte per second. Mbps Megabit per second. Megahertz. Media independent interface. Nanosecond. NVRAM Non-volatile random-access memory. Stores system variables used by the boot PROM. Contains the system hostID number and Ethernet address. OpenBoot PROM. A routine that tests the network controller, diskette drive system, memory, cache, system clock, network monitoring, and control registers.
Page 230 UPA address bus 3. Provides data interface between QSC ASIC and the UPA graphics. UPA DATA 0 UPA data bus 0. Provides 144-bit-wide data bus between the XB9+ ASIC and CPU module 0. Sun Ultra 60 Service Manual ♦ March 1999, Revision A Glossary-4...
Page 231 UPA DATA 1 UPA data bus 1. Provides 144-bit-wide data bus between the XB9+ ASIC and the UPA graphics. UPA DATA 2 UPA data bus 2. Provides 64-bit-wide data bus between the XB9+ ASIC and CPU module 0. UPA DATA 3 UPA data bus 3.
Page 232 Sun Ultra 60 Service Manual ♦ March 1999, Revision A Glossary-6...
Page 233: Index
Index output message, 4–21 automatic negotiation, C–22 baud rate, verifying, 3–4 agency compliance, C–45 built-in speaker, C–38 all above, 4–21 bypassing POST, 3–19 all above output message, 4–21 ASIC FBC, C–32 CD-ROM drive, C–13 PCIO, C–6, C–31 removing, 9–6 QSC, C–31 replacing, 9–7 RISC, C–32 CD-ROM drive failure, 4–3...
Page 234 1–1 basics, C–44 signal, B–1 features, C–44 SunVTS, 2–1 environmental desktop workstation, Ultra 60 series, 1–2 compliance, C–44 diag-level requirements, A–2 error reporting, POST, 3–17 Ethernet, 4–16, C–21 Sun Ultra 60 Service Manual ♦ March 1999, Revision A Index-2...
Page 235 automatic negotiation, C–22 connectors, C–23 graphics, C–12 external cables, C–23 card MII port timing, C–23 features, C–12 MII power, C–23 performance, C–13 output message, 4–16 transceivers external, C–23 hard drive external removing, 9–1 cables, C–23 SCSI, C–28 replacing, 9–3 supported, C–16, C–36 host adapter, C–27 how this book is organized, xi failure...
Page 236 A with TIP line, 4–19 NVRAM, 4–20 serial port B, 4–20 output message, 4–20 test, 4–10 NVRAM/TOD watch-clock, 4–8 removing, 10–4 watch-net, 4–9 replacing, 10–6 watch-net all, 4–8 Sun Ultra 60 Service Manual ♦ March 1999, Revision A Index-4...
Page 237 overview connector J2902, 4–5 POST, 3–1 pin description, 4–6, 4–11 SunVTS, 2–1 connector J2903, 4–6 pin description, 4–6, 4–11 control signals, C–34 on/off functionality, C–34 parallel port, C–16, C–18 output values, C–33, C–36 cables, C–18 remote enable connector, B–11 PowerOff, C–34 pin assignments, B–12, B–13 PowerOn, C–34 pin conﬁguration, B–11...
Page 238 8–3 output message, 4–20 RMA, 9–9 port B,connector SCSI drive bay, 8–9 pin assignments, B–3, B–4 shroud assembly, 8–28 setting up tip connection, 3–2 side access cover, 7–5 Sun Ultra 60 Service Manual ♦ March 1999, Revision A Index-6...
Page 239 shell prompts, xiv power budget, C–35 shroud assembly 300-MHz CPU module, C–35 removing, 8–26 mass storage devices, C–37 replacing, 8–28 memory system, C–36 side access cover PCI cards, C–36 removing, 7–1 power-off (front panel), 6–4 replacing, 7–5 rear view, 1–4 signal descriptions, B–1 replaceable components, 1–5, 1–6, 11–3, speaker...
Page 240 CD-ROM drive, 9–6 watch replacing, 9–7 -clock, 4–8 XB9+ ASIC, C–30 -clock output message, 4–8 -net all output message, 4–8 -net output message, 4–9 wrist strap, attaching to chassis, 7–4 Sun Ultra 60 Service Manual ♦ March 1999, Revision A Index-8...

Sun Microsystems Sun Ultra 60 Service Manual

Preface

1 Product Description

2 Sunvts Overview

3 Power-On Self-Test

4 Troubleshooting Procedures

5 Safety and Tool Requirements

6 Power on and off

7 Internal Access

8 Major Subassemblies

9 Storage Devices

10 Motherboard and Component Replacement

11 Illustrated Parts List

Product Speciﬁcations

Signal Descriptions

Functional Description

Glossary

Index

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun Microsystems Sun Ultra 60

Summary of Contents for Sun Microsystems Sun Ultra 60
